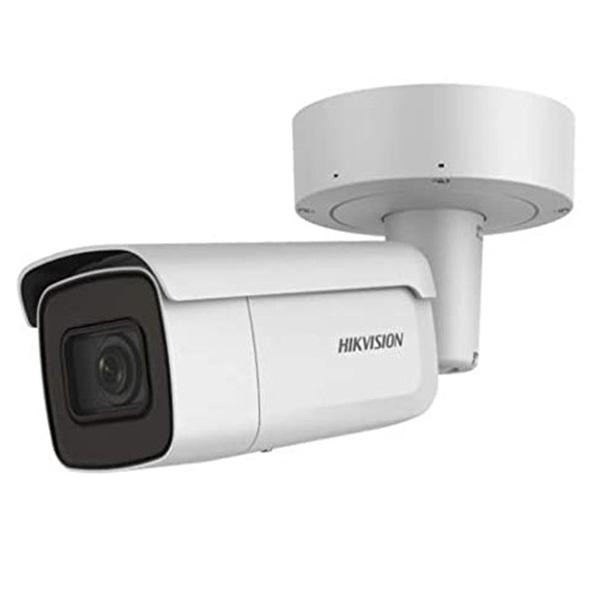

Camera IP hồng ngoại 3.0 Megapixel HIKVISION DS-2CD2635FWD-IZS
- Cảm biến hình ảnh: 1/2.8 inch Progressive Scan CMOS.
- Độ phân giải camera IP: 3.0 Megapixel (2048×1536@25fps).
- Ống kính tự động thay đổi tiêu cự: 2.8~12mm.
- Độ nhạy sáng: 0.005Lux@F1.2.
- Tầm camera quan sát hồng ngoại: 50 mét.
- Chức năng chống ngược sáng WDR 120dB.
- Chức năng điều chỉnh độ lợi AGC.
- Chức năng giảm nhiễu số 3D DNR.
- Hỗ trợ khe cắm thẻ nhớ microSD 128GB (max).
- Chức năng phát hiện khuôn mặt, cổng âm thanh.
- Nguồn điện: 12VDC.
- Chức năng cấp nguồn qua mạng PoE.
- Tiêu chuẩn chống thấm nước và bụi: IP67 (thích hợp sử dụng trong nhà và ngoài trời).
- Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…
- Phần mềm giám sát và tên miền miễn phí…
- Kích thước: Φ144.13×332.73mm.
- Trọng lượng: 1890g.
Đặc tính kỹ thuật
| Model | DS-2CD2635FWD-IZS |
| Camera | |
| Image Sensor | 1/2.8 inch Progressive Scan CMOS |
| Min. Illumination | Color: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Color: 0.009 Lux @ (F1.6, AGC ON), 0 Lux with IR | |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Auto-Iris | Support |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| 3-Axis Adjustment | Pan: 0°to 360°, tilt: 0°to 90°, rotate: 0°to 360° |
| Lens | |
| Focal length | 2.8 to 12 mm |
| Lens Type | Motorized |
| Aperture | F1.4 |
| Focus | Auto |
| FOV | Horizontal field of view: 98°to 33° |
| Vertical field of view: 69°to 25° | |
| Diagonal field of view: 130°to 41° | |
| Lens Mount | Φ14 |
| IR | |
| IR Range | Up to 50 m |
| Wavelength | 850nm |
| Compression Standard | |
| Video Compression | Main stream: H.265/H.265+/H.264/H.264+ |
| Sub stream: H.265/H.264/MJPEG | |
| Third stream: H.265/H.264 | |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Main stream supports |
| H.265 Type | Main Profile |
| H.265+ | Main stream supports |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G.711/G.711a/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Exception Detection | Scene change detection |
| Face Detection | Support |
| Region of Interest | Support 1 fixed region for main stream and sub stream |
| Image | |
| Max. Resolution | 2048 × 1536 |
| Main Stream | 50Hz: 25fps (2048 × 1536, 1920 × 1080, 1280 × 720) |
| 60Hz: 30fps (2048 × 1536, 1920 × 1080, 1280 × 720) | |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) |
| 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) | |
| Third Stream | 50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) |
| 60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240) | |
| Image Enhancement | AWB/BLC/3D DNR/ROI/HLC |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser |
| Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In |
| Network | |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output |
| Protocols | TCP, UDP, TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, PSIA,CGI, ARP, Multicast, IPv4/v6, ICMP |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users |
| 3 levels: Administrator, Operator and User | |
| Client | iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500 |
| Web Browser | Plug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11. Plug-in free live view: Chrome 45.0+, Firefox 52.0+ |
| Interface | |
| Audio | 1 input (line in, 3.5 mm), 1 output (3.5 mm), mono sound |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Alarm | 1 input, 1 output (max. 12 VDC, 30 mA), terminal block |
| Video Output | 1Vp-p composite output (75 Ω) (For adjustment only |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
| SVC | Support H.264 and H.265 encoding |
| Reset Button | Yes |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8kHz/16kHz/32kHz/44.1kHZ/48kHz |
| General | |
| Operating Conditions | -40 °C to +60 °C, Humidity 95% or less (non-condensing) |
| Power Supply | 24VDC± 25%, PoE (802.3at) |
| Terminal block for DC input | |
| Power Consumption and | 24VDC, 0.65A, max. 15.5W |
| Current | PoE (802.3at, 42.5V to 57V), 0.5A to 0.1A, max. 17.5W |
| Protection Level | IP67, IK10 |
| Material | Metal |
| Dimensions | Φ144.13 × 332.73 mm |
| Weight | Camera: Approx. 1890 g |
- Bảo hành: 24 tháng.
