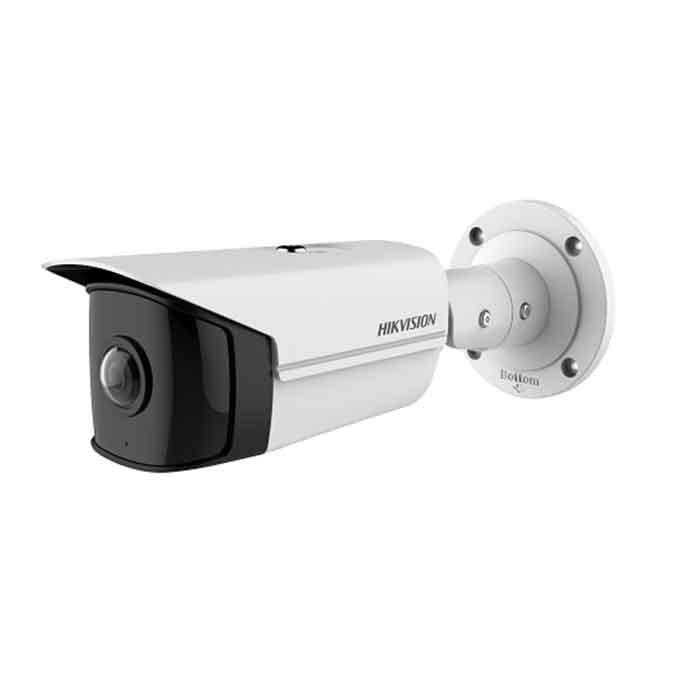

Camera IP hồng ngoại 4.0 Megapixel HIKVISION DS-2CD2T45G0P-I

Camera IP hồng ngoại 4.0 Megapixel HIKVISION DS-2CD2T45G0P-I

  • MS 000007359
  • HIKVISION
Giá : 2,981,000 vnđ (Đã bao gồm VAT)

Camera IP hồng ngoại 4.0 Megapixel HIKVISION DS-2CD2T45G0P-I

Camera IP hồng ngoại 4.0 Megapixel HIKVISION DS-2CD2T45G0P-I

- Cảm biến hình ảnh: 1/2.7-inch Progressive Scan CMOS.

- Độ phân giải camera ip: 4.0 Megapixel (2688×1520 @ 25fps).

- Chuẩn nén hình ảnh: H.265, H.265+, H.264, H.264+.

- Tầm quan sát hồng ngoại: 20 mét.

- Ống kính: 1.68mm.

- Góc nhìn ngang: 180°.

- Góc nhìn dọc: 101°.

- Góc nhìn chéo: 180°.

- Hỗ trợ chức năng chống ngược sáng thực 120dB true WDR.

- Hỗ trợ chức năng chống cong ảnh.

- Khe cắm thẻ nhớ micro SD/SDHC/SDXC lên đến 256GB.

- Tiêu chuẩn chống bụi và nước: IP67 (thích hợp sử dụng trong nhà và ngoài trời).

Đặc tính kỹ thuật

Camera
Image Sensor1/2.7-inch Progressive Scan CMOS
Signal SystemPAL/NTSC
Min. Illumination0.028 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter time1/3 s to 1/100,000 s
Slow shutterSupport
LensHorizontal: 180°, vertical: 101°, diagonal: 180°
Lens MountM12
Adjustment RangePan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Day& NightIR Cut Filter
Wide Dynamic Range120 dB
Digital noise reduction3D DNR
FocusFixed
Compression Standard
Video CompressionH.265+/H.265/H.264+/H.264/MJPEG
H.264 code profileMain Profile/High Profile
Video bit rate32Kbps~16Mbps
Max. Image Resolution2688 × 1520
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Frame Rate50Hz: 25fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
60Hz: 24fps (2688 × 1520), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
Image EnhancementBLC/3D DNR/ROI/HLC
Image SettingsSaturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
ROISupport 1 fixed region for main stream and sub stream separately
Day/Night SwitchDay/Night/Auto/Schedule
Network
Network StorageSupport microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
System CompatibilityONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Interface
Communication Interface1 RJ45 10M / 100M Ethernet interface
On-board storageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset ButtonYes
Smart Feature-set
Behavior AnalysisLine crossing detection, Intrusion detection, Unattended baggage detection, Object removal detection
Line Crossing DetectionCross a pre-defined virtual line
Intrusion DetectionEnter and loiter in a pre-defined virtual region
Unattended BaggageObjects left over in the pre-defined region such as the baggage, purse, dangerous materials
Object RemovalObjects removed from the pre-defined region, such as the exhibits on display.
Exception DetectionsScene change detection
Detection/RecognitionFace Detection
General
Operating Conditions-30 °C ~ 60 °C (-22 °F ~ 140 °F)
Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25% PoE (802.3at, class 4)
Power Consumption12 VDC, 0.6 A, max. 7.2W PoE: (802.3af, 36 V-57 V), 0.3 A to 0.2 A, max. 8.7W
IR RangeUp to 20m
DimensionsCamera: Φ105 × 278 mm (Φ4.1″ × 10.9″)
With package: 386 × 156 × 155 mm (15.20″ × 6.14″ × 6.10″)
WeightCamera: 570 g (1.26 lb.)
With package: 760 g (1.68 lb.)

- Bảo hành: 24 tháng.
