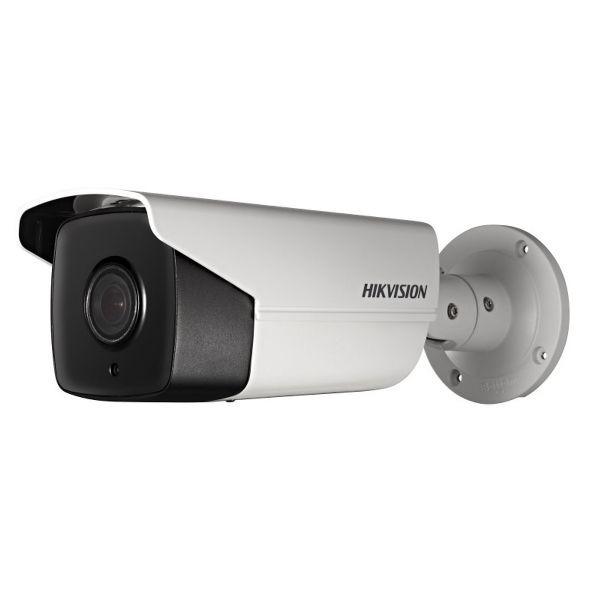

Camera IP hồng ngoại 8.0 Megapixel HIKVISION DS-2CD2T85FWD-I8

Camera IP hồng ngoại 8.0 Megapixel HIKVISION DS-2CD2T85FWD-I8

  • MS 000007374
  • HIKVISION
Giá : 2,838,000 vnđ (Đã bao gồm VAT)

Camera IP hồng ngoại 8.0 Megapixel HIKVISION DS-2CD2T85FWD-I8

Camera IP hồng ngoại 8.0 Megapixel HIKVISION DS-2CD2T85FWD-I8

-Cảm biến hình ảnh: 1/2.5 inch CMOS.

-Chuẩn nén hình ảnh: H.265, H.265+, H.264+, H.264.

-Ống kính: 2.8mm, 4mm, 6mm, 8mm, 12mm (tùy chọn).

-Độ phân giải: 8.0 Megapixel.

-Tầm quan sát hồng ngoại: 80 mét.

-Hỗ trợ khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng lên đến 128GB.

-Chức năng báo động khi có đột nhập, chuyển động, vượt hàng rào ảo…

-Chức năng lọc nhiễu kỹ thuật số 3D DNR (Dynamic Noise Reduction).

-Chức năng chống ngược sáng Digital WDR (Wide Dynamic Range).

-Tiêu chuẩn chống thấm nước và bụi: IP66 (thích hợp sử dụng trong nhà và ngoài trời).

-Nguồn điện cung cấp: 12VDC.

-Chức năng cấp nguồn qua mạng PoE.

-Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…

-Phần mềm giám sát và tên miền miễn phí…

Đặc tính kỹ thuật



Camera
Image Sensor1/2.5 inch Progressive Scan CMOS
Min. IlluminationColor: 0.01 lux @ (F1.2, AGC ON), 0 lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterSupport
Lens2.8 mm, horizontal field of view: 102°
4 mm, horizontal field of view: 79°
6 mm, horizontal field of view: 50°
8 mm, horizontal field of view: 40°
12 mm, horizontal field of view: 23°
Lens MountM12
IrisF2.0
Day & NightIR cut filter
Wide Dynamic Range120dB
Digital noise reduction3D-DNR
3-Axis Adjustment (bracket)Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°
Compression Standard
Video CompressionMain stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 TypeMain Profile/High Profile
H.264+Support
H.265 TypeMain Profile
H.265+Support
Video bit rate32 Kbps to 16 Mbps
Max. Image Resolution3840 x 2160
Main Stream50Hz: 20 fps (3840 x 2160), 25 fps (2560 x 1920, 2560 x 1440, 1920 x 1080, 1280 x 720)
60Hz: 20 fps (3840 x 2160), 30 fps (2560 x 1920, 2560 x 1440, 1920 x 1080, 1280 x 720)
Sub Stream50Hz: 25fps (640 x 360, 352 x 288)
60Hz: 30fps (640 x 360, 352 x 240)
Third Stream50Hz: 25fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30fps (1280 x 720, 640 x 360, 352 x 240)
Image EnhancementBLC/3D-DNR
Image SettingsSupport rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web
browser and client software
ROI (Region of Interest)Support 1 fixed region for mainstream and sub stream separately
Network
Network StorageSupport microSD/ SDHC/ SDXC card (128G) local storage, NAS (NFS, SMB/ CIFS), ANR
Alarm TriggerMotion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login,HDD full, HDD error
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
StandardONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General FunctionOne-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark,IP Address Filter
Interface
Communication Interface1 RJ45 10M/100Mbps Ethernet interface
On-board storageBuilt-in Micro SD/SDHC/SDXC slot, up to 128GB
Smart Feature-set
Behavior AnalysisLine crossing detection, intrusion detection, unattended baggage detection, object removaldetection
Line Crossing DetectionCross a pre-defined virtual line, up to 1 pre-defined virtual lines supported
Intrusion DetectionEnter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported
Object Removal DetectionObjects removed from the pre-defined region, such as the exhibits on display
Unattended Baggage DetectionObjects left over in the pre-defined region such as the baggage, purse, dangerous materials
Face DetectionHuman face appears in the image can be detected and trigger linkage method
General
Operating Conditions-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing)
Power Supply12VDC ± 25%
PoE (802.3af 42.5 – 57V, class 3), 9W
Power ConsumptionMax. 12W
Weather ProofIP67
IR Range80 meters
DimensionsΦ104.8 x 299.7 mm
Weight Camera ip1200g

-Bảo hành: 24 tháng.
