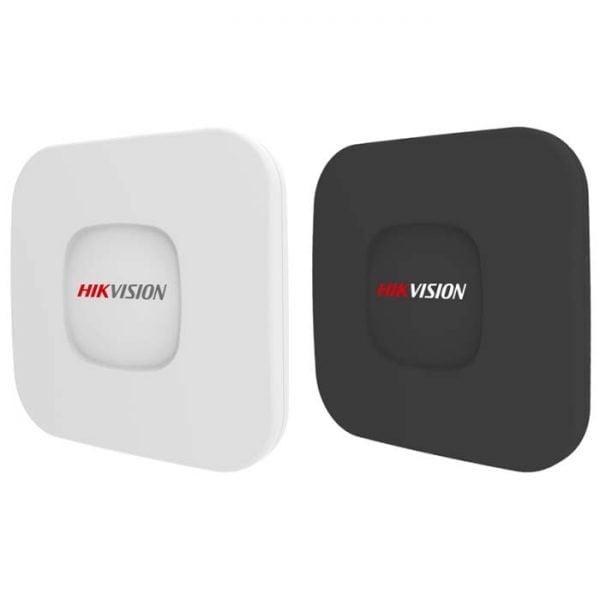

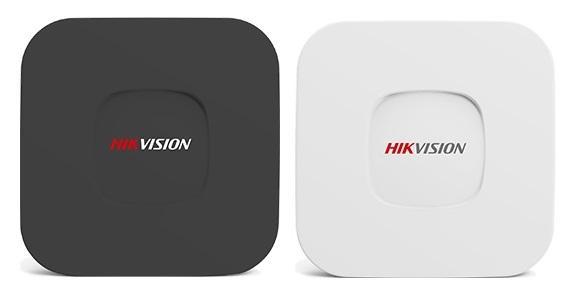

Bộ truyền tải Video không dây 2.4G HIKVISION DS-3WF01C-2N
-Bộ truyền tải Video không dây 2.4G chuyên dùng cho thang máy.
-Băng thông tối đa lên đến: 300Mbps.
-Khoảng cách truyền dẫn lên đến: 500 mét.
-Nguồn điện cung cấp: 48VAC/ 0.25A và 12VDC.
-Chức năng cấp nguồn qua mạng PoE.
-Bao gồm: 1 bộ phát và 1 bộ thu.
| Wireless |
|---|
| Standard: | | IEEE802.11 b/g/n(2T2R 300Mbps) |
| Operation frequency: | | 2412 to 2472 MHz(More Non-standard channels is availability,2312MHz to 2732MHz) |
| Antenna: | | Internal, 6dBi, H: 65° V: 60° |
| Max output power: | | 27dBm |
| Receive sensitivity: | | -72dBm@65Mbps, -97dBm@1Mbps |
| Max transmission rate: | | 11n: 300Mbps(HT40)/130Mbps(HT20) 11g: 54Mbps |
| Hardware |
|---|
| Power supply: | | 48V/0.25A PoE or 12 VDC |

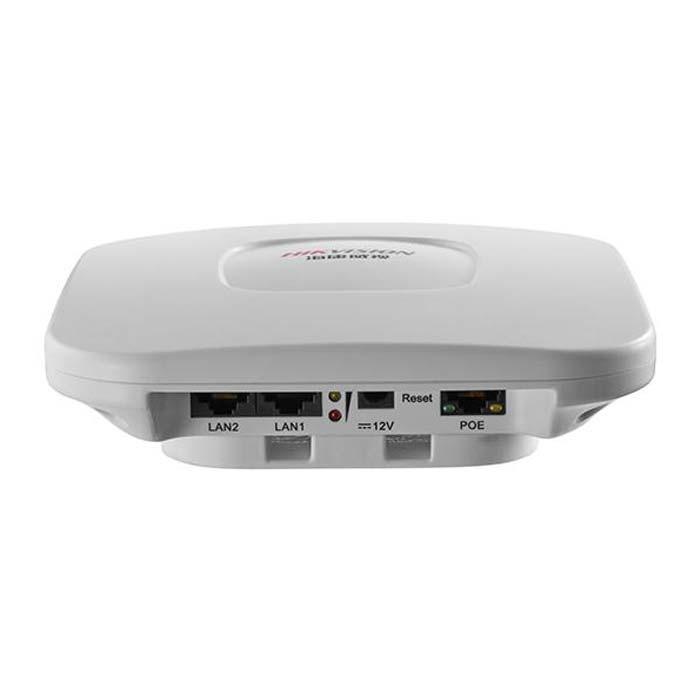

| Interface: | | 3×10/100M Base-TX (Cat. 5/5E, RJ-45) ports |
| Operation temperature: | | -30℃ to +65℃(-22℉ to +149℉) |
| Storage temperature: | | -40℃ to +85℃(-40℉ to +185℉) |
| Operation humidity: | | 5% to 95%RH non-condensing |
| Dimensions: | | 150×150×31.6 mm (5.9×5.9×1.24 inch) |
| Software |
|---|
| Application scenarios: | | Elevator Room/IP Camera |
| Encryption: | | WPA-PSK/WPA2-PSK |
| Network mode: | | Router/Bridge |
| Security: | | IP/MAC filter, SSID hidden, Interface Isolation |
| Network protocol: | | TCP/UDP/ARP/ICMP/DHCP/HTTP/NTP |
| TDMA: | | Supported (Extend private communication protocol) |
| Auto ACK timing adjust: | | Supported (It can automatically detect the distances of the devices, keep the performance always the best) |
| Management and Logs: | | NTP, Syslog, Telnet, AC |
| Web based configuration: | | Supported |
| Firmware update: | | Support update firmware by Web page |
| Bandwidth: | | 20M/40MHz |
-Bảo hành: 24 tháng.
