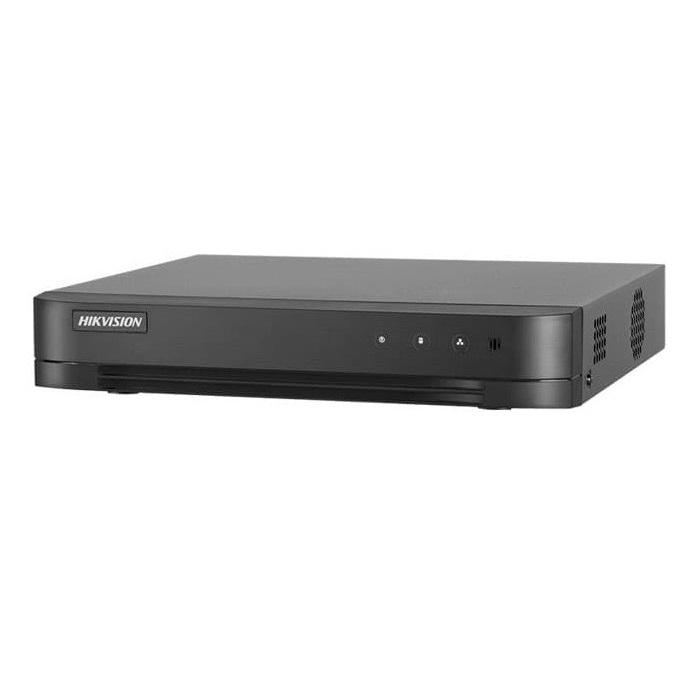

Đầu ghi hình Hybrid TVI-IP 4 kênh HIKVISION DS-7204HQHI-K1/E(C)(S)

Đầu ghi hình Hybrid TVI-IP 4 kênh HIKVISION DS-7204HQHI-K1/E(C)(S)

  • MS 0015577
  • HIKVISION
Giá : 1,219,000 vnđ (Đã bao gồm VAT)

Đầu ghi hình Hybrid TVI-IP 4 kênh HIKVISION DS-7204HQHI-K1/E(C)(S)

Đầu ghi hình Hybrid TVI-IP 4 kênh HIKVISION DS-7204HQHI-K1/E(C)(S)

- Đầu ghi hình hỗ trợ tối đa 4 kênh Analog + 2 kênh IP (lên đến 6MP).

- Ghi hình 4 MP lite/3 MP@15fps, 1080P Lite@25fps, 720P@25fps.

- Chuẩn nén hình ảnh: H.265 Pro+/H.265 Pro/H.265.

- Tương thích với tín hiệu ngõ ra: HDMI & VGA 1080P xuất hình đồng thời.

- Hỗ trợ 1 ổ cứng dung lượng 10TB.

- Hỗ trợ camera có mic.

- Cổng mạng: 1x RJ45 10/100M.

- Cổng Audio (in/out): 1/1.

- Nguồn điện: 12VDC.

- Kích thước: 265 × 225 × 48 mm.

- Trọng lượng: 1.6kg.

Đặc tính kỹ thuật

ModelDS-7204HQHI-K1/E(C)(S)
Recording
Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolutionWhen 1080p lite mode is not enabled:
4 MP lite/ 3MP/ 1080p/ 720p/ VGA/ WD1/ 4CIF/ CIF
When 1080p Lite mode is enabled:
4 MP lite/ 3 MP/ 1080p lite/ 720p lite/ VGA/ WD1/ 4CIF/ CIF
Frame rateMain stream:
When 1080p Lite mode is not enabled:
For 4 MP stream access:
4 MP lite@15fps; 1080p lite/ 720p/ WD1/ 4CIF/ VGA/ CIF@25fps (P)/ 30fps (N)
For 3 MP stream access: 3MP/ 1080p/ 720p/ VGA/ WD1/ 4CIF/ CIF@15fps
For 1080p stream access:
1080p/720p@15fps; VGA/ WD1/ 4CIF/ CIF@25fps (P)/ 30fps (N)
For 720p stream access: 720p/ VGA/ WD1/ 4CIF/ CIF@25fps (P)/ 30fps (N)
When 1080p Lite mode is enabled:
4 MP lite/ 3 MP@15fps; 1080p lite/ 720p lite/ VGA/ WD1/ 4CIF/ CIF@25fps (P)/ 30fps (N) Sub-stream:
WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate32 Kbps to 6 Mbps
Dual streamSupport
Stream typeVideo, Video & Audio
Audio compressionG.711u
Audio bit rate64 Kbps
Video and Audio
IP video input1-ch (up to 5-ch)
Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4Mbps
Up to 6 MP resolution
Analog video input4-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30
AHD input4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS inputPAL/NTSC
VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI and VGA simultaneous output
Audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)4-ch via coaxial cable
4-ch via coaxial cable
Audio output1-ch, RCA (Linear, 1 KΩ)
Two-way audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback4-ch
Network
Total bandwidth72 Mbps
Incoming bandwidth (Enhanced IP mode)24 Mbps
Remote connection32
Network protocolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface1, RJ45 10M/100M self-adaptive Ethernet interface
Auxiliary interface
SATA1 SATA interface
CapacityUp to 10 TB capacity for each disk
USB interfaceRear panel: 2 × USB 2.0
General
Power supply12 VDC, 1.5 A
Consumption (without HDD)≤ 5 W
Working temperature-10 °C to 55 °C
Working humidity10% to 90%
Dimension (W × D × H)265 × 225 × 48 mm
Weight (without HDD)≤ 1.6 kg

- Bảo hành: 24 tháng.
