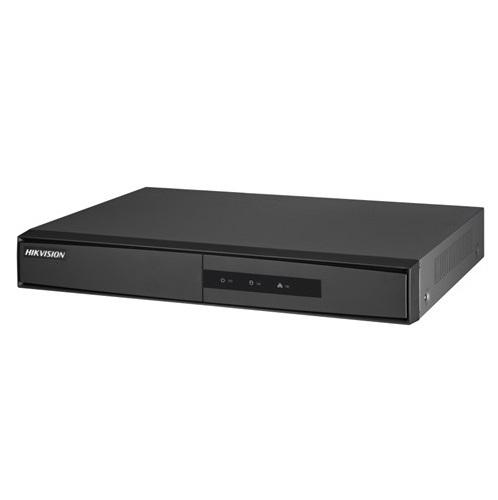

Đầu ghi hình 8 kênh Turbo HD 3.0 HIKVISION DS-7208HGHI-F1/NB
- 8 cổng Balun, 8 ngõ vào video, 1 cổng audio input.
- Hỗ trợ camera Turbo HD/AHD/Analog input.
- Hỗ trợ gán thêm 2 camera IP 2MP.
- 1 cổng HDMI & VGA, 1 cổng SATA.
Đặc tính kỹ thuật
| Model | DS-7208HGHI-F1/NB |
| Video/Audio Input | |
| Audio Input | 1-ch |
| Video Compression | H.264, H.264+ |
| Analog Video Input | 8-ch |
| Analog and HD-TVI video input | 1080p25, 1080p30, 720p25, 720p30 |
| IP Video Input | 2-ch (up to 10-ch) |
| IP Video Input Resolution | Up to 960p resolution |
| Audio Compression | G.711u |
| Two-way Audio | 1-ch RCA (2.0Vp-p, 1kΩ) |
| Video/Audio Output | |
| HDMI/VGA Output | 1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz |
| Recording resolution | When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF |
| Video Bit Rate | 32 Kbps ~ 4 Mbps |
| Audio Bit Rate | 64kbps |
| Synchronous Playback | 8-ch |
| Network management | |
| Remote connections | 128 |
| Network protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard Disk Driver | |
| Interface Type | 1 SATA Interface |
| Capacity | Up to 6 TB capacity for each disk |
| External Interface | |
| Network Interface | 1; 10M / 100M self-adaptive Ethernet interface |
| USB | 2 USB 2.0 Interfaces |
| General | |
| Power Supply | 12 VDC |
| Consumption | ≤ 12 W |
| Working Temperature | -10ºC to +55ºC |
| Working Humidity | 10% to 90% |
| Dimensions | 260 × 222 × 45 mm |
| Weight | ≤ 1kg |
- Bảo hành: 24 tháng.
