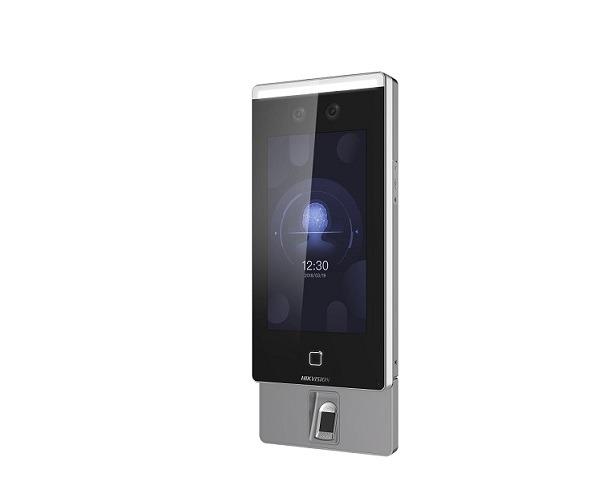

Máy chấm công, kiểm soát ra vào nhận diện khuôn mặt và vân tay HIKVISION DS-K1T671TMF
- Máy chấm công, kiểm soát ra vào nhận diện khuôn mặt và vân tay.
- Màn hình cảm ứng LCD 7-inch.
- Camera kép góc rộng với độ phân giải 2.0 Megapixel.
- Hỗ trợ 50.000 khuôn mặt, 50.000 thẻ Mifare 1, 5000 vân tay và 100.000 sự kiện.
- Độ chính xác nhận diện khuôn mặt > 99%.
- Thời gian nhận diện khuôn mặt (1:N) ≤ 0.2s.
- Khoảng cách nhận diện khuôn mặt: 0.3m đến 3m.
Feature
- Face mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance is valid.
- Forced mask wearing alert: If the recognizing face does not wear a mask, the device will prompt a voice reminder. At the same time, the authentication or attendance will be failed.
- 7-inch LCD touch screen, 2 Megapixel wide-angle lens, built-in Mifare card reading module.
- Face recognition distance (without face mask): 0.3m to 3m, Duration ＜ 0.2s/User, Accuracy rate ≥ 99%.
- Max. 50.000 faces capacity, Max. 5000 fingerprints capacity, and Max.50.000 cards.
- Two-way audio with client software, indoor station, and main station.
- Supports TCP/IP.
- Configuration via the web client.
- Supports ISAPI and ISUP5.0 protocol.
- IP65.
Thông số kỹ thuật
| Model | DS-K1T671TMF |
| System | |
| Operation system | Linux |
| Display | |
| Dimensions | 7-inch |
| Type | LCD |
| Operation method | Capacitive touch screen |
| Video | |
| Pixel | 2 MP |
| Lens | 2 |
| Audio | |
| Tone quality | Noise suppression and echo cancellation |
| Network | |
| Wired network | 10 M/100 M/1000 M self-adaptive |
| Interface | |
| Network interface | 1 |
| RS-485 | 1 |
| Wiegand | 1 |
| Lock output | 1 |
| Exit button | 1 |
| Door contact input | 1 |
| IO input | 2 |
| IO output | 1 |
| Power interface | 2-pin |
| TAMPER | 1 |
| USB | 2 |
| Capacity | |
| Card capacity | 50000 |
| Face capacity | 50,000 |
| Fingerprint capacity | 5000 |
| Event capacity | 100000 |
| Authentication | |
| Card type | Mifare 1 card |
| Card reading frequency | 13.56 MHz |
| Card reading distance | 0 to 5 cm |
| Face recognition duration | ＜ 0.2 s per person |
| Face recognition accuracy rate | ≥ 99% |
| Face recognition distance | 0.3 to 3 m (Without face mask) |
| Function | |
| QR code recognition | Support |
| Face anti-spoofing | Support |
| Advertisement | Support |
| Audio prompt | Support |
| Time synchronization | Support |
| General | |
| Power supply method | 2 pin connecter |
| Power supply | 12 VDC/ 2 A |
| Working temperature | -30 ℃ to 60 ℃ (-22 °F to 140 °F) |
| Working humidity | 10 to 90％ (No condensing) |
| Dimensions | 290 mm × 116.5 mm × 33 mm |
| Protective level | IP65 |
| Installation | Wall mounting |
| Language | English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil) |
| Platform | Hik-ProConnect and HikCentral Professional |
- Bảo hành: 12 tháng.
