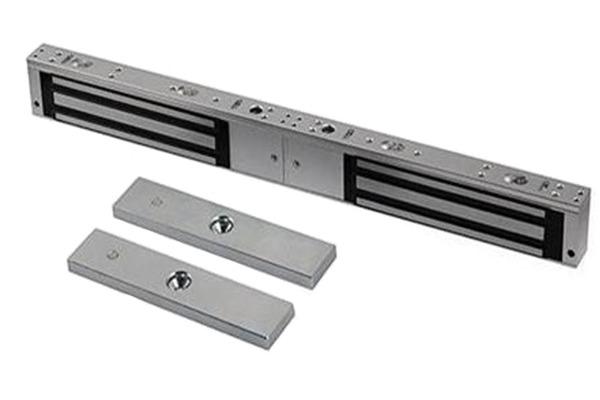

Khóa điện từ cửa 2 cánh HIKVISION DS-K4H250D
- Loại cửa phù hợp: Gỗ, kính, kim loại, chống cháy.
- Lực giữ: 300kg x2
- Giao tiếp: NC/COM
- Nguồn điện: 12VDC.
- Kích thước khóa: 480×49×25.5mm
Features
- The DS-K4H250D Double-door magnetic lock is designed for wooden door, glass door, and steel door with the openingangle of 90°.
- The maximum thrust of the lock is 600kg.
- It can be used for controlling door opening/closing, and the indicator shows the door status.
- It supports signal output of door lock output status testing.
- The magnetic lock supports static linear thrust of 600kg.
- The power supply can be customized to be 12VDC or 24VDC, and the default voltage is 12VDC.
- It is equipped with internal voltage dependent resistor (MOV).
- It is applied to wooden door, glass door, metal door and fireproof door.
- LED indicator displays the status of door lock.
- Signal output of door lock status (NONCCOM).
- Anti-residual magnetism design.
- Abrasion-proof materials.
- The shell is made up of aldural and is hard anodizing electroplated.
- No mechanical failure, and the magnetic lock works by electromagnetism force.
Đặc tính kỹ thuật
| Model | DS-K4H250D |
| Working Current | 12V/500mA×2, 24V/250mA×2 |
| Signal Output | Dry Contact Signal Output, Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking |
| LED Indicator | Red (Door is Unlocked), Green (Door is Locked) |
| Suitable Door | Wooden Door, Glass Door, Metal Door, Fireproof Door |
| Working Temperature | -10°C to +55°C (14°F to 131°F) |
| Working Humidity | 0 to 95% (Relative Humidity) |
| Shell | Hard Anodizing Electroplating Operated |
| Lock Body | Eco-friendly Zinc Electroplating Operated |
| Armature Plate | Eco-friendly Zinc Electroplating Operated |
| Dimension of Lock Body | 480×49×25.5mm |
| Dimension of Armature Plate | 180×38×11mm |
| Maximum Thrust | 300kg×2 Linear Thrust |
| Input Voltage | 12VDC /24VDC |
| Weight | 4.2kg(9.3lb) |
- Bảo hành: 24 tháng.
