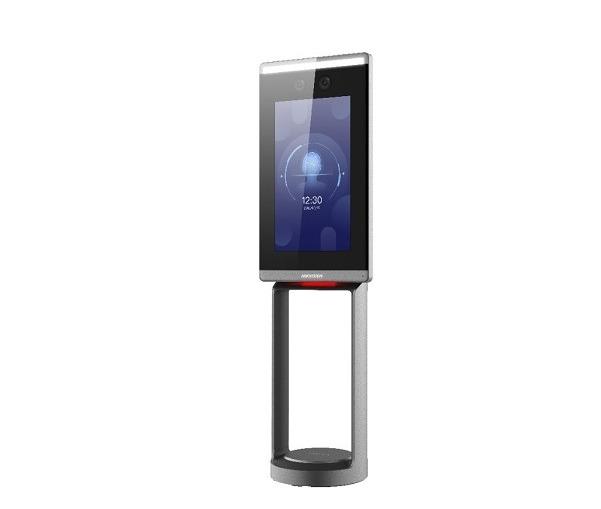

Thiết bị kiểm soát ra vào nhận diện khuôn mặt HIKVISION DS-K5671-ZV
- HIKVISION DS-K5671-ZV là thiết bị kiểm soát ra vào nhận diện khuôn mặt cho Swing Barrier.
- Màn hình cảm ứng LCD 7-inch.
- Ống kính kép góc rộng 2.0 Megapixel, tự động lấy nét và nhận diện với những người có vị trí khác nhau.
- Hỗ trợ 50.000 khuôn mặt, 100.000 sự kiện truy cập.
- Giao tiếp TCP/IP, Wifi.
- Tỷ lệ chính xác nhận dạng khuôn mặt: ≥99%.
- Thời gian nhận dạng khuôn mặt: <0.2s
- Khoảng cách nhận dạng khuôn mặt: 0.3m ~ 3m.
Features
- Compatible with Hikvision turnstile
- Communicates with the third-party turnstile via IO output or Wiegand
- Water-proof
- 7-inch LCD touch screen
- 2 MP wide-angle dual lens
- Adjustable supplement light brightness
- Face recognition distance: 0.3 m to 3 m
- High performance processor with deep learning algorithm
- Face capacity: 50,000
- Face recognition duration < 0.2 s/User; face recognition accuracy rate > 99%
- Multiple authentication modes
- Applies pictures to the device via TCP/IP or uploading them to the device via the USB flash drive
- Stand-alone operation
- Transmits and saves the comparison results and the captured pictures to the client software or others
- Device management, log search, and parameter settings via the device.
- Connects to one external card reader via RS-485 protocol
- Connects to Wiegand card reader via Wiegand protocol
- Remote live view via RTSP protocol; encoding mode: H.264
- Voice prompts
- Two-way audio with client software, indoor station, and master station
- NTP, manually time synchronization, and auto synchronization
- Watchdog design for protecting the device and ensuring device running properly
- Supports 6 attendance status, including check in, check out, break in, break out, overtime in, overtime out
- Supports multiple languages: English, Spanish, Arabic, Thai, Indonesian, and Russian
- Supports EHome 5.0 (ISUP 5.0), and ISAPI protocol
- Configuration via web browser
- Biometric recognition products are not 100% applicable to anti-spoofing environments. If you require a higher security level, use multiple authentication modes
Thông số kỹ thuật
Model | DS-K5671-ZV |
Face recognition distance | 0.3 m to 3 m |
Face recognition duration | < 0.2 s |
Face anti-spoofing | Support |
Face capacity | 50,000 |
Event capacity | 100,000 |
Screen | 7-inch touch screen |
Camera | 2 MP dual-lens camera |
Communication | TCP/IP, Wi-Fi |
Interface | LAN × 1, RS-485 × 1, Wiegand × 1, USB × 1, IO output × 1, IO input × 2, lock × 1, door contact × 1 |
Audio prompt | Support |
Two-way audio | Support |
Power supply | 12 VDC/2 A |
Working humidity | 0 to 90% (no condensing) |
Working temperature | -30 °C to +60 °C (-22 °F to +140 °F) |
Protection level | IP65 |
- Bảo hành: 12 tháng.
