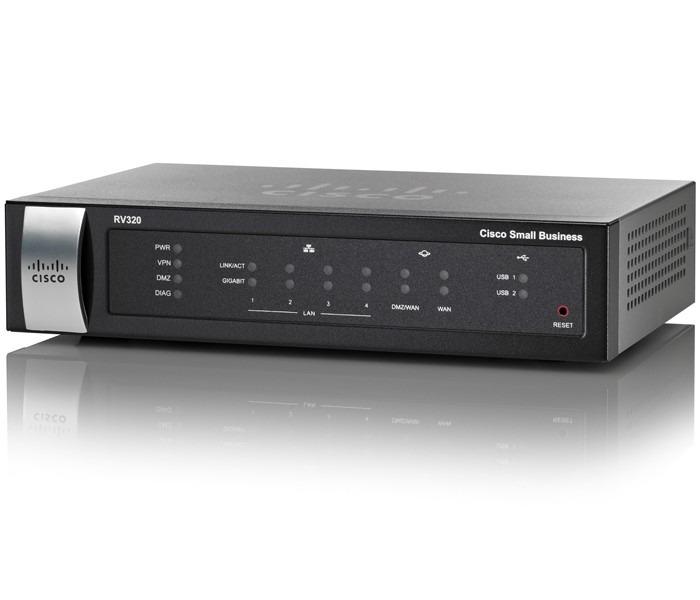

Dual Gigabit WAN VPN Router Cisco RV320
- Dual Gigabit Ethernet WAN ports for load balancing and business continuity
- Built-in 4-port Gigabit Ethernet switch
- Strong security with proven stateful packet inspection (SPI) firewall and hardware encryption
- High-capacity, high-performance, SSL, IP Security (IPsec) VPN capabilities
- Intuitive, browser-based device manager and setup wizards
- Affordable, high-performance Gigabit Ethernet ports enable rapid transfer of large files, supporting multipleusers.
- Dual USB ports support a 3G/4G modem or flash drive. The WAN can also fail over to the 3G/4G modemconnected to the USB port.
- SSL VPN and site-to-site VPN enable highly secure connectivity, making the Cisco RV320 perfect for remote employees and multiple offices.
- Stateful packet inspection (SPI) firewall and hardware encryption provide strong security.
- Easy-to-use wizard-based configuration tools can be used to establish network connectivity and managesecurity.
- In an ever-changing business environment, your small business network has to be powerful, flexible, accessible, and highly reliable, especially when growth is a high priority. Your network must also be able to adapt cost-effectively to these growth spurts.
- The Cisco RV320 Dual Gigabit WAN VPN Router is the choice for any network in which performance, security, reliability, and adaptability top the list of requirements. The Cisco RV320 supports two connections to one service provider, delivering high performance by using load balancing, or to two different providers to deliver business continuity. High-capacity virtual private networks (VPNs) connect multiple offices and enable dozens of employees to access the information they need from any geographic location just as securely as if they were working at your main office.
Description | Specification |
Dual WAN | Dual Gigabit Ethernet Ports |
Failover | |
Load balancing | |
Standards | 802.3, 802.3u |
IPv4 (RFC 791) | |
IPv6 (RFC 2460) | |
WAN Connectivity | Dynamic Host Configuration Protocol (DHCP) server, DHCP client, DHCP relay agent |
Static IP | |
Point-to-Point Protocol over Ethernet (PPPoE) | |
Point-to-Point Tunneling Protocol (PPTP) | |
Transparent bridge | |
DNS relay, Dynamic DNS (DynDNS.org, 3322.org), DNS local database | |
IPv6 | |
Routing protocols | Routing Information Protocol (RIP) v1 and v2, and RIP for IPv6 (RIPng) |
Inter-VLAN routing | |
Static routing | |
VLANs supported: 7 | |
Network Address Translation (NAT) | Port Address Translation (PAT) |
One-to-one NAT | |
NAT traversal | |
Protocol binding | Protocols can be bound to a specific WAN port for load-balancing purposes |
Network edge (DMZ) | DMZ port |
DMZ host | |
Dual USB 2.0 ports | Storage and 3G/4G modem support |
Security | |
Firewall | SPI firewall |
Denial-of-service (DoS) prevention: ping of death, SYN flood, IP spoofing, WinNuke | |
Access rules | Schedule-based access rules |
Up to 50 entries | |
Port forwarding | Up to 30 entries |
Port triggering | Up to 30 entries |
Blocking | Java, cookies, ActiveX, HTTP proxy |
Content filtering | Static URL blocking or keyword blocking |
Secure management | HTTPS web access to device manager |
Username/password complexity enforcement | |
VLAN | 802.1Q VLAN |
7 VLANs supported | |
VPN | |
IP Security (IPsec) | 25 IPsec site-to-site tunnels for branch office connectivity |
25 IPsec VPN tunnels via Cisco VPN client and third-party clients such as “The GreenBow” for remote-access VPN connectivity | |
SSL VPN | 10 SSL VPN tunnels for remote client access |
PPTP | 10 PPTP tunnels for remote access |
Encryption | Data Encryption Standard (DES) |
Triple Data Encryption Standard (3DES) | |
Advanced Encryption Standard (AES) encryption: AES-128, AES-192, AES-256 | |
Authentication | MD5/SHA1 |
IPsec NAT traversal | Supported for gateway-to-gateway and client-to-gateway tunnels |
VPN pass-through | PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec |
Advanced VPN | Dead peer detection (DPD) |
Split DNS | |
VPN backup | |
Internet Key Exchange (IKE) with certificate | |
Quality of Service (QoS) | |
Service-based QoS | Rate control or priority |
Rate control | Upstream/downstream bandwidth per service |
Prioritization types | Application-based priority on WAN port |
Priority | Services mapped to one of two priority levels |
Performance | |
IPsec VPN throughput | 100 Mbps |
SSL VPN throughput | 20 Mbps |
Concurrent connections | 20,000 |
Configuration | |
Web user interface | Browser-based device manager (HTTP/HTTPS) |
Management | |
Management protocols | Web browser (HTTP/HTTPS) |
Simple Network Management Protocol (SNMP) v1, v2c, and v3 | |
Bonjour | |
Event logging | Local log |
Syslog | |
Email alert | |
Short Message Service (SMS) | |
Upgradability | Firmware upgradable through the web browser |
Import or export configuration files from or to a USB flash drive | |
Product dimensions (W x H x D) | 206 x 132 x 44 mm (8.1 x 5.2 x 1.7 in) |
Ports | Four 10/100/1000 Gigabit Ethernet RJ-45 ports |
One 10/100/1000 Gigabit Ethernet RJ-45 Internet (WAN) port | |
One 10/100/1000 Gigabit Ethernet RJ-45 DMZ/Internet (WAN) port | |
Power supply | 12V 1.5A |
Certification | FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel |
Operating temperature | 0° to 40°C (32° to 104°F) |
Storage temperature | 0° to 70°C (32° to 158°F) |
Operating humidity | 10% to 85% noncondensing |
Storage humidity | 5% to 90% noncondensing |
- Bảo hành: 12 tháng.
