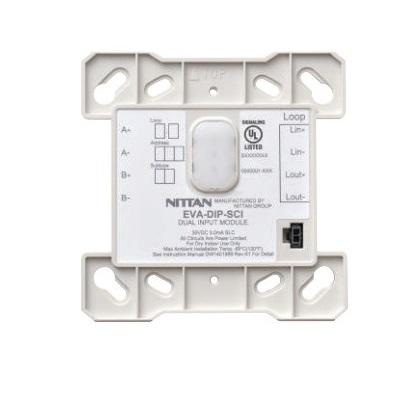

Dual Input Module with SCI NITTAN EVA-DIP-SCI
- EVA-DIP-SCI Dual Input Module with Short Circuit Isolator is intended for use in addressable two wire systems. The module monitors and transmits the status (normal, open, short, or active) of devices equipped with NC/NO dry contacts to a control panel. The initiating device circuit (IDC) can be wired on Class A (Style D & E) or Class B (Style B & C).
- Loop powered.
- Provides two interfaces to NC/NO contact devices.
- SCI function.
- Supports Class A and Class B wiring.
- SEMS screws for easy wiring.
- Status indicator LED.
- Address settable from 001 to 254 by a dedicatedprogrammer.
- Single loop address.
- Low standby current (3mA).
- Mounts to optional 4-inch square junction box.
Thông số kỹ thuật
| Model | EVA-DIP-SCI |
| SLC Applied Voltage | Rated Range 20 to 38 VDC |
| SLC Current Consumption | Standby 3.0 mA Activated 16.9 mA (max) |
| SLC Line Impedance | Up to 50 Ω |
| Number of IDC (Initiating Device Circuit) | 1 x Class A or 2 x Class B |
| IDC Circuit Rating | 15 VDC, 2.2 kΩ, 6.8 mA (max) |
| IDC Line Impedance | Up to 50 Ω |
| EOL Device | RE-10 k (10 kΩ, 1/4 W) (Included) 2.2 kΩ resistance required for each dry contact switch in subtype setting 7, 8, 9 and 10 |
| SCI on Resistance | 0.2 ohms (max) |
| SCI Fault Detection Threshold | 10V (min) |
| SCI Isolation Current | 22 mA (max) |
| Visual Indicator (Status LED) | Polling LED (GREEN) Input LED (RED) SCI LED (YELLOW) |
| Ambient Installation Temperature | 0°C to 49°C (32°F to 120°F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Max Relative Humidity | Up to 93 % RH, non-condensing |
| Environment | Indoor dry use only |
| Max quantity per loop | 127 units |
| Terminal | Screw AWG12 to 22 |
| Address Setting | EVA-AD2 Address Programmer |
| Dimensions | H 37.6 mm x W 69.8 mm x D 17.2 mm |
| Weight | Approximately 34 g |
| Conformity | UL864 |
- Bảo hành: 12 tháng.
