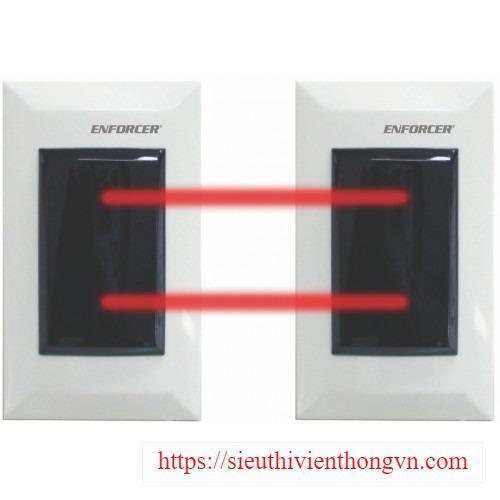

E-932-D33TBQ

Fits single-gang box

Adjustable alignment angle from ±15 degrees horizontally/vertically

Response Time: 10msec.

Alarm Output: Contact 1Amp@120 VAC/DC

Voltage – 12~18 VDC

Current: 50mA Max.

4³/₄" x 2³/₄" x 1¹/₂" (120x70x38 mm)

Type	Dual thru beam
Current Draw	50mA max.
Sensing Range	33ft (10m)
Operating Voltage	12~18VDC
Reaction time	10ms
Light Source	IR LED
LEDs - Red	TX Red (on): Power, RX Red (off): Aligned RX Red (on): Out of alignment
Output	(NC/NO/COM)
Switching Capacity	1A@120V (AC/DC)
Operating Temperature	14º~122º F (-10º~50º C)
Alignment Angle	Vert. ±15º, Horiz. ±15º
