| Type | Twin Photobeam Detector with Laser Beam Alignment |
| Current Draw | 50mA max (laser align only). 150mA max. (active operation excluding laser alignment) |
| Sensing Range | Outdoor - 90' (30m), Indoor- 190' (60m) |
| Operating Voltage | 12~30 VDC/VAC 60Hz, 200mA |
| Interupt Speed | 10ms |
| LEDs - Red | "ON" indicates transmitter and receiver not aligned or beam is broken |
| LEDs - Yellow | ON indicates weak receiver signal or beam is broken |
| LEDs - Green | ON indicates unit connected to power |
| Alarm Output | SPDT NO/NC/COM relay, 1A@30VDC/VAC |
| Tamper Output | N.C. switch, 1A@30VDC/VAC |
| Case material | PC Resin |
| Laser Wavelength | 650nm |
| Operating Temperature | -13º~+131º F (-25º~+55º C) |
| Laser Output Power | <5mW |
| Alignment Angle | Horizontal (+/-)90º, Vertical: (+/-)5º |
| Weight | 2.5-lb (1.1kg) |

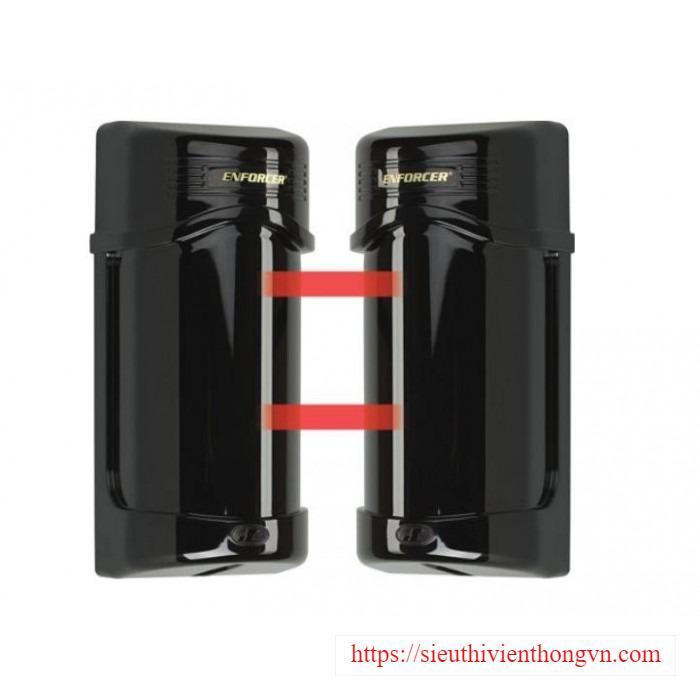

E-960-D90GQ
- MS 000004027
- SECO-LARM
Giá : 1,585,000 vnđ
- Twin beams minimize false alarms from falling leaves, birds, etc.
- Lensed optics reinforces beam strength and provides excellent immunity to false alarms due to rain, snow, mist, etc.
- Weatherproof, sunlight-filtering case
- Non-polarized power inputs
- Anti-frost system
- Automatic input power filtering with special noise rejection circuitry
- NO/NC trigger output
- N.C. tamper circuit included
- “U” brackets included for pole mounting
- Quick, easy installation with built-in laser beam alignment system
- Monitored output: N.C. or 10kΩ resistor on N.O. output
Bình luận
ENFORCER E-964-Q660Q
Giá :
6,095,000 vnđ
ENFORCER Long Range Photobeam Detectors are easy-to-install with laser beam alignment and provide extended range. Designed to provide reliable perimeter security both indoors and outdoors.
Built-in laser beam alignment system speeds accurate, reliable positioning
Multi-frequency (4 channels selectable)
Quad infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
Lensed optics reinforce beam strength & provide excellent immunity to false alarms due to rain, snow, mist, etc.
Weatherproof, sunlight-filtering case for indoor & outdoor use
Anti-frost system with built-in heater so that beam functions even in extreme conditions
Automatic input power filtering with special noise rejection circuitry
NO/NC alarm output
N.C. tamper circuit included
Non-polarized power inputs
Quick, easy installation with built-in laser beam and audible alignment system
Built-in alignment strength indicator
Interruption time adjustable for nearly all situations
ENFORCER E-964-Q330Q
Giá :
4,860,000 vnđ
ENFORCER E-964-Q330Q Long Range Photobeam Detectors are easy-to-install with laser beam alignment and provide extended range. Designed to provide reliable perimeter security both indoors and outdoors.
Built-in laser beam alignment system speeds accurate, reliable positioning
Multi-frequency (4 channels selectable)
Quad infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
Lensed optics reinforce beam strength & provide excellent immunity to false alarms due to rain, snow, mist, etc.
Weatherproof, sunlight-filtering case for indoor & outdoor use
Anti-frost system with built-in heater so that beam functions even in extreme conditions
Automatic input power filtering with special noise rejection circuitry
NO/NC alarm output
N.C. tamper circuit included
Non-polarized power inputs
Quick, easy installation with built-in laser beam and audible alignment system
Built-in alignment strength indicator
Interruption time adjustable for nearly all situations
Enforcer E-960-D390Q
Giá :
3,385,000 vnđ
