| Type | IR Multi-Frequency Single Beam Sensor |
| Current Draw | Transmitter- 15mA@12VDC, Receiver- 30mA@12VDC |
| Number of Beam Frequencies | 4 |
| Number of Beams | 1 |
| Sensing Range | Up to 50ft (15m) |
| Infrared LED Wavelength | 940nm |
| Operating Voltage | 10~24VDC |
| Interupt Speed | 50ms |
| LED Beam Spread Angle | Approximately ±10° |
| LEDs - Red | Indicates transmitter and receiver are not aligned or beam is broken (Alarm) |
| LEDs - Yellow | Dims/off when receiver's signal is weak / off when beam is broken |
| LEDs - Green | Indicates connected to power |
| Output | NO/NC relay (set by jumper, default is N.C.) 0.5A@30VAC/VDC |
| Operating Humidity | 0~95% |
| Operating Temperature | -13°~131°F (-25°~55°C) |
| Dimensions | 3-11/16" x 2-3/8" x 1-13/16" (94 x 60 x 46 mm) |
| Weight | 2.6-oz (74g) |
| Enclosure | IP65 |

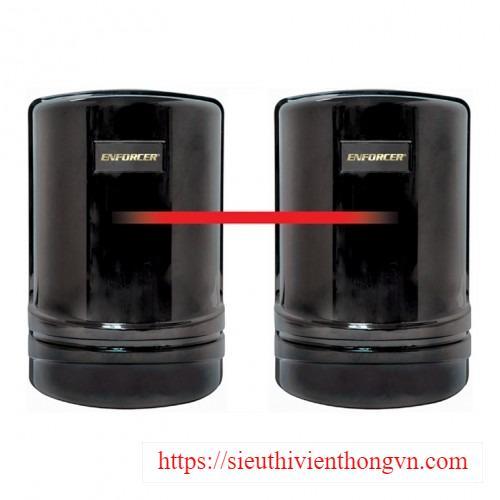

E-964-S50TB
- MS 000004033
- SECO-LARM
Giá : 589,000 vnđ (Đã bao gồm VAT)
4 selectable frequencies to reduce interference
Up to 50ft (15m) sensing distance
Small size for a less conspicuous installation
Simple to install
Built-in AGC control to filter out lighting disturbances
Signal strength indicator for easier alignment
LED indicators for power, signal strength, and trigger
Weatherproof for outdoor as well as indoor use (IP65)
Mounting hardware included
Bình luận
Tags: E-964-S50TB
,
ENFORCER E-964-Q660Q
Giá :
6,095,000 vnđ
ENFORCER Long Range Photobeam Detectors are easy-to-install with laser beam alignment and provide extended range. Designed to provide reliable perimeter security both indoors and outdoors.
Built-in laser beam alignment system speeds accurate, reliable positioning
Multi-frequency (4 channels selectable)
Quad infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
Lensed optics reinforce beam strength & provide excellent immunity to false alarms due to rain, snow, mist, etc.
Weatherproof, sunlight-filtering case for indoor & outdoor use
Anti-frost system with built-in heater so that beam functions even in extreme conditions
Automatic input power filtering with special noise rejection circuitry
NO/NC alarm output
N.C. tamper circuit included
Non-polarized power inputs
Quick, easy installation with built-in laser beam and audible alignment system
Built-in alignment strength indicator
Interruption time adjustable for nearly all situations
ENFORCER E-964-Q330Q
Giá :
4,860,000 vnđ
ENFORCER E-964-Q330Q Long Range Photobeam Detectors are easy-to-install with laser beam alignment and provide extended range. Designed to provide reliable perimeter security both indoors and outdoors.
Built-in laser beam alignment system speeds accurate, reliable positioning
Multi-frequency (4 channels selectable)
Quad infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
Lensed optics reinforce beam strength & provide excellent immunity to false alarms due to rain, snow, mist, etc.
Weatherproof, sunlight-filtering case for indoor & outdoor use
Anti-frost system with built-in heater so that beam functions even in extreme conditions
Automatic input power filtering with special noise rejection circuitry
NO/NC alarm output
N.C. tamper circuit included
Non-polarized power inputs
Quick, easy installation with built-in laser beam and audible alignment system
Built-in alignment strength indicator
Interruption time adjustable for nearly all situations
Enforcer E-960-D390Q
Giá :
3,385,000 vnđ
