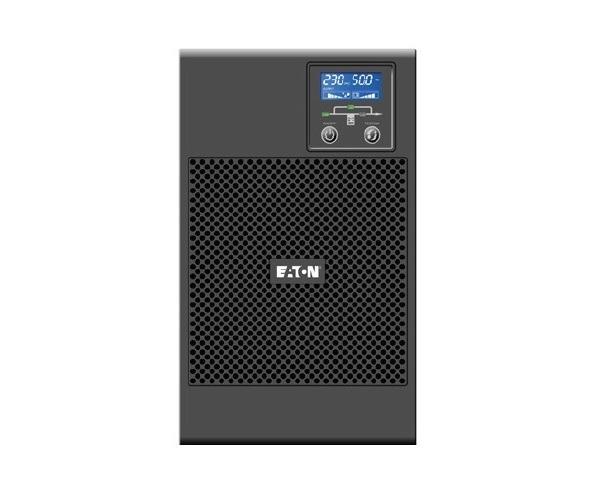

Nguồn lưu điện UPS EATON 9E3000I
- Online double conversion topology.
- Intuitive user interface with an LCD panel that provides, on a single screen, clear information about UPS status.
- Provides more real power (watts) to protect more equipment with a 0.8 power factor.
- Internal bypass and maintenance bypass are available as standards.
- Communication through USB, RS232 serial or over the network with an optional network card.
- Compatible with Virtual environments (VMware, Hyper-V, Citrix Xen, Redhat).
- CE compliance certified by external agency (CB report from the TUV).
Specifications
| Model | 9E3000I |
| Rating | 3000VA /2400W |
| Format | Tower |
| Electrical Characteristics | |
| Technology | Online double conversion |
| Input Voltage | 208/220/230/240V |
| Input voltage range without using batteries | 176-300V without derating (up to 100-300V with derating) |
| Output voltage/THDU | 220V/230V/240V ±1 %, THDU: <2% for 100% linear load, <6% for 100% non-linear load |
| Input frequency range | 40Hz-70Hz, 50/60Hz autoselection |
| Efficiency | Up to 91% in Online mode, 98% in ECO mode |
| Overload capacity (in on-line mode) | 105%-130% : 60s, 130%-150% : 10s, >150% : ≥300ms |
| Connections | |
| Input | IEC C20 |
| Output | 6 x IEC C13 + 1 x IEC C19 |
| Typical backup times at 100% Load | |
| 9E | 4 minutes |
| Communication | |
| Communication ports | 1 USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously) |
| Communication slot | 1 slot for Network-MS, ModBus-MS or Relay-MS cards |
| Software | Intelligent Power Software |
| General | |
| Operating temperature | 0 to 40°C |
| Noise level | 41dB @ typical load |
| Safety | IEC/EN 62040-1 |
| EMC, Performance | IEC/EN 62040-2 |
| Approvals | CE, CB report (TUV) |
| UPS Dimensions | 399 x 327 x 190 mm |
| UPS Weight | 22.4Kg |
- Bảo hành: 2 năm.
