| Type | Twin Photobeam Multi-Frequency Detectors with Laser Beam Alignment |
| Current Draw | 88mA |
| Sensing Range | Outdoor- 390' (120m), Indoor- 790' (240m) |
| Operating Voltage | 10~30VAC / VDC (Non-polarized) |
| Interupt Speed | 50msec~700msec (variable) |
| LEDs - Red | Alarm LED ON: When transmitter and receiver are not aligned or when beam is broken |
| LEDs - Yellow | Tuning LED (Receiver) ON: When receiver's signal is weak or when beam is broken |
| LEDs - Green | Operation LED (transmitter & receiver) ON: Indicates connected to power |
| Detection System | Simultaneous break of 2 beams |
| Alarm Output | NO/NC relay, 1A @ 120VAC, min. 1 sec |
| Tamper Output | NC switch, 1A@120VAC |
| Case material | PC Resin |
| Laser Wavelength | 650nm |
| Operating Temperature | -13º~+131º F (-25º~+55º C) |
| Laser Output Power | <5mW |
| Alignment Angle | Horizontal (+/-)90º, Vertical: (+/-)5º |
| Weight | 2.5-lb (1.1kg) |

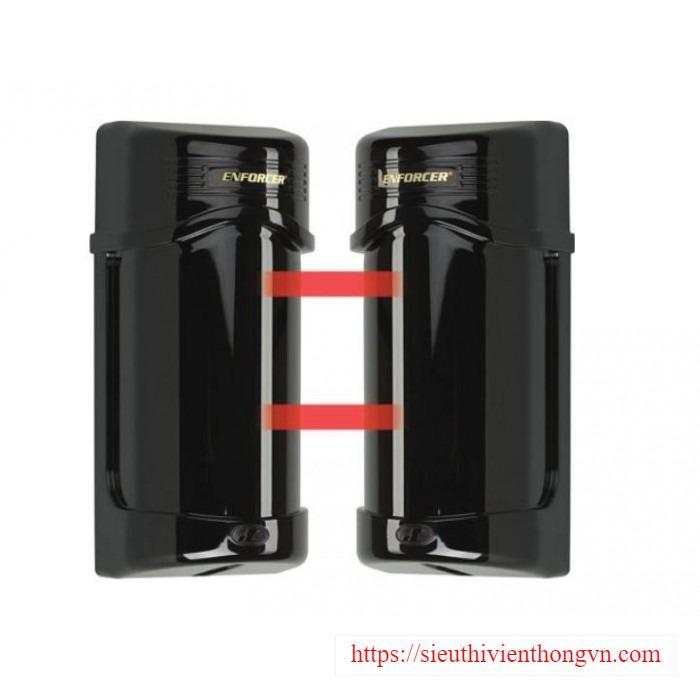

ENFORCER E-964-D390Q
- MS 000004031
- SECO-LARM
Giá : 3,090,000 vnđ (Đã bao gồm VAT)
ENFORCER E-964-D390Q Long Range Photobeam Detectors are easy-to-install with laser beam alignment and provide extended range. Designed to provide reliable perimeter security both indoors and outdoors. With the new E-964-D390Q, four selectable beam frequencies reduce interference between multiple units for enhanced perimeter protection.
- Built-in laser beam alignment system speeds accurate, reliable positioning
- Twin infrared beams provide reliable perimeter security, minimizing false alarms from falling leaves, birds, etc.
- Lensed optics reinforce beam strength & provide excellent immunity to false alarms due to rain, snow, mist, etc.
- Weatherproof, sunlight-filtering case for indoor & outdoor use
- Anti-frost system so that beam functions even in extreme conditions
- Automatic input power filtering with special noise rejection circuitry
- NC/NO alarm output
- N.C. tamper circuit included
- Non-polarized power inputs
- Quick, easy installation with built-in laser beam alignment system
- Interruption time adjustable for nearly all situations
