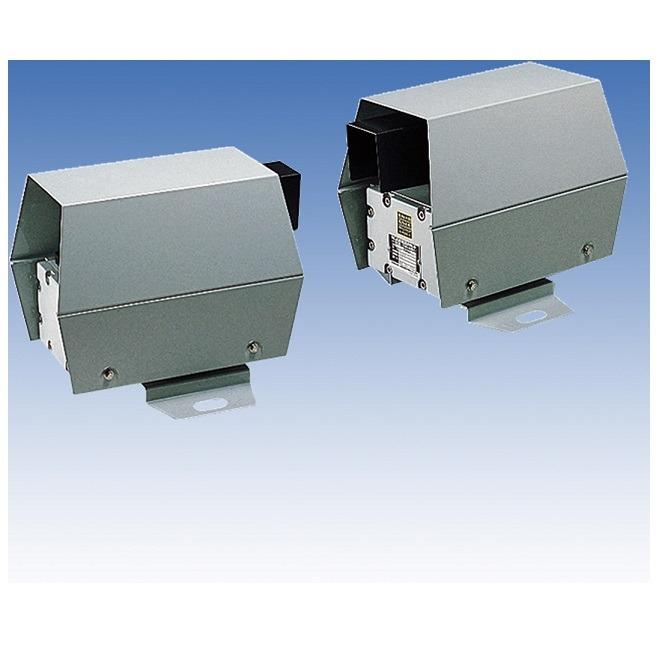

Explosion-Proof Photoelectric Beam Sensor TAKEX PXH-100EX
- Explosion-Proof Photoelectric Beam Sensor, 100m, double modulation, Class I & II hazardous location.
- Long-distance beam sensor for outdoor use equipped with intrinsically safe explosion-proof structure which can be used in hazardous areas of Class 1 (Zone 1) and Class 2 (Zone 2).
- Two types of the product ('L” and “H”) with different frequencies available for mutual interference prevention in case of multi-level protection and long straight line protection.
Specification
| Product | Explosion-proof Photoelectric beam sensor |
| Model | PXH-100EX |
| Test model number | Transmitter: No. T68885 Receiver: No : T68884 |
| Test model (100V) | Transmitter: PXH-111EXL Receiver: PXH-121EXL |
| Test model (200V) | Transmitter: PXH-112EXL Receiver: PXH-122EXL |
| Protection Distance | 100m or less |
| Max. arrival distance | 800m |
| Detection system | Near infrared pulsed beam interruption system |
| Infrared beam | Double modulation pulsed beam by LED |
| Response time | 0,.05 sec or more |
| Alarm output (relay built-in: receiver) | Dry contact relay output form b (closed: in operation, open: on alarm) Contact action: Interruption time (Min. 2 sec) Contact capacity: AC/DC 30V・0.25A・Max.7.5VA (resistive load) |
| Power supply | 100V: AC100V (50/60Hz) 200V: AC200V (50/60Hz) |
| Current consumption | Transmitter: 4.6VA 50Hz・2.9VA 60Hz Receiver: 4.7VA 50Hz・3.0VA 60Hz |
| Ambient temperature range | -10 to +40˚C (no condensation and freezing) |
| Explosion-proof structure | Combination of 'Intrinsically safe explosion-proof (ia)' and 'Explosion-proof (d)' |
| Target gas | Flame-proof grade explosion class 2, Ignition temperature G4 |
| Installation area | Hazardous area class 1, or class 2 |
| Wiring | Terminals |
| Entrance of cable lead-in fitting | Pressure-resistant packing type JIS B0202: Nominal designation of screw thread for thick steel conduit tube G1(PF1):CTG28 |
| Entrance of protection tube | G3/4 (PF3/4) |
| Weight | Transmitter/Receiver Approx. 10kg/unit |
| Appearance | Stainless steel plate, bake-coated with heat curing epoxy resin (Munsell N7) |
