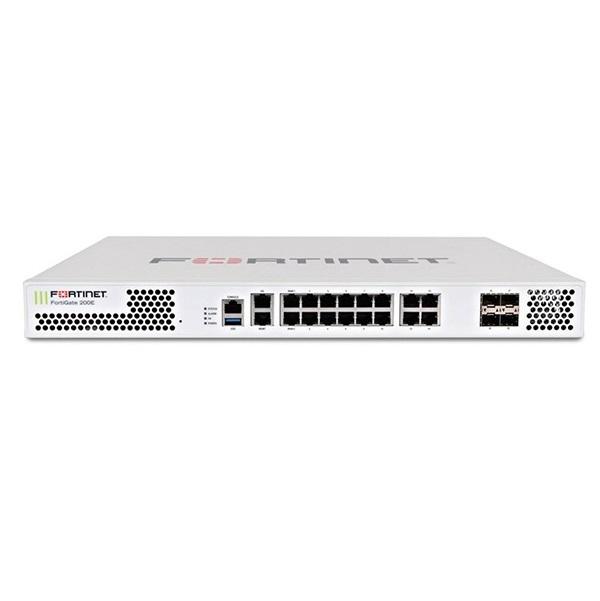

18 x GE RJ45 ports Firewall FORTINET FG-200E-BDL-950-12
- 18 x GE RJ45 (including 2 x WAN ports, 1 x MGMT port, 1 X HA port, 14 x switch ports).
- 4 x GE SFP slots.
- SPU NP6Lite and CP9 hardware accelerated.
- VPN support.
- Hardware plus 24x7 FortiCare and FortiGuard Unified (UTM).
Đặc tính kỹ thuật
| Model | FG-200E-BDL-950-12 |
| Interfaces and Modules | |
| GE SFP Slots | 4 |
| GE RJ45 Interfaces | 14 |
| GE RJ45 WAN Interfaces | 2 |
| GE RJ45 Management/HA Ports | 2 |
| USB Ports | 2 |
| RJ45 Console Port | 1 |
| Included Transceivers | 0 |
| System Performance and Capacity | |
| Firewall Throughput (1518 / 512 / 64 byte, UDP) | 20 / 20 / 9 Gbps |
| Firewall Latency (64 byte, UDP) | 3 μs |
| Firewall Throughput (Packet per Second) | 13.5 Mpps |
| Concurrent Sessions (TCP) | 2 Million |
| New Sessions/Second (TCP) | 135 |
| Firewall Policies | 10 |
| IPsec VPN Throughput (512 byte) | 7.2 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2 |
| Client-to-Gateway IPsec VPN Tunnels | 10 |
| SSL-VPN Throughput | 900 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 5 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 820 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 1 |
| Application Control Throughput (HTTP 64K) | 3.5 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 1.5 Gbps |
| Virtual Domains (Default / Maximum) | 10/10 |
| Maximum Number of FortiSwitches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel) | 128 / 64 |
| Maximum Number of FortiTokens | 5 |
| Maximum Number of Registered FortiClients | 600 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput | 2.2 Gbps |
| NGFW Throughput | 1.8 Gbps |
| Threat Protection Throughput | 1.2 Gbps |
| Dimensions and Environment | |
| Height x Width x Length | 1.75 x 17.0 x 11.9 inches |
| 44.45 x 432 x 301 mm | |
| Form Factor | Rack Mount, 1 RU |
| Power | 100–240V AC, 60–50 Hz |
| Maximum Current | 110 V / 3 A, 220 V / 0.42 A |
| Power Consumption (Average / Maximum) | 70.98 / 109.9 W |
| Heat Dissipation | 374.9 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | 31.1 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, |
| CB, BSMI | |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN;IPv6 |
