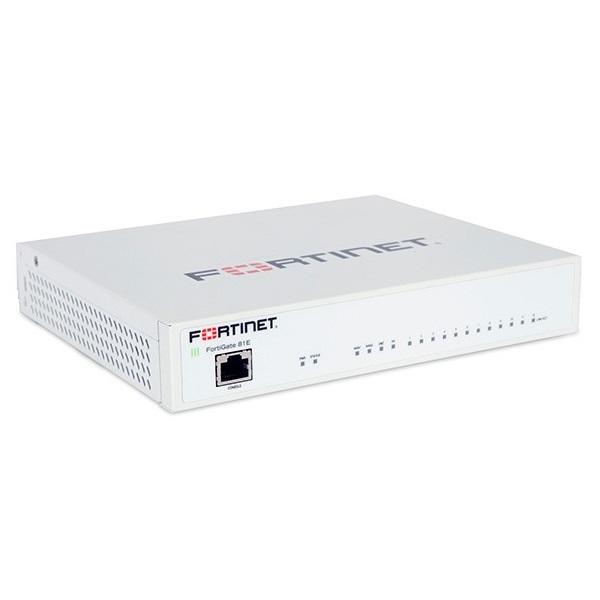

14 x GE RJ45 ports (including 1 x DMZ port, 1 x Mgmt port, 1x HA port, 12 x switch ports) Firewall with Bundle FORTINET FORTIGATE FG-81E-BDL-950-12
- 14 x GE RJ45 ports (including 1x DMZ port, 1x Mgmt port, 1x HA port, 12 x switch ports), 2x Shared Media pairs (including 2x GE RJ45 ports, 2x SFP slots).
- 128 GB onboard storage.
- Maximum managed FortiAPs (Total/Tunnel) 32/16.
Đặc tính kỹ thuật
| Model | FG-81E-BDL-950-12 |
Hardware Specifications | |
| GE RJ45/SFP Shared Media Pairs | 2 |
| GE RJ45 Ports | 12 |
| GE RJ45 DMZ/HA Ports | 2 |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| Internal Storage | 128GB |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 4 / 4 / 4 Gbps |
| Firewall Latency (64 byte UDP packets) | 3 μs |
| Firewall Throughput (Packets Per Second) | 6Mpps |
| Concurrent Sessions (TCP) | 1.3 Milion |
| New Sessions/Second (TCP) | 30 |
| Firewall Policies | 5 |
| IPsec VPN Throughput (512 byte) 1 | 2.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 2,5 |
| SSL-VPN Throughput | 200 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, HTTP) | 180 Mbps |
| Application Control Throughput (HTTP 64K) | 900 Mbps |
| CAPWAP Throughput (HTTP 64K) | 920 Mbps |
| Virtual Domains (Default / Maximum) | 10-Thg10 |
| Maximum Number of Switches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 32 / 16 |
| Maximum Number of FortiTokens | 100 |
| Maximum Number of Registered FortiClients | 200 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| System Performance - Optimal Traffic Mix | |
| IPS Throughput | 1.5 Gbps |
| System Performance -Enterprise Traffic Mix | |
| IPS Throughput 2 | 450 Mbps |
| NGFW Throughput | 360 Mbps |
| Threat Protection Throughput | 250 Mbps |
| Dimensions | |
| Height x Width x Length (inches) | 1.65 x 8.5 x 7 |
| Height x Width x Length (mm) | 42 x 216 x 178 |
| Weight | 2.65 lbs (1.2 kg) |
| Form Factor | Desktop |
| Environment | |
| Power Required | 100–240V AC, 50–60 Hz |
| Maximum Current | 100V AC / 0.7A, 240V AC / 0.3A |
| Total Available PoE Power Budget | N/A |
| Power Consumption (Average / Maximum) | 20 W / 72 W |
| Heat Dissipation | 245.67 BTH/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 16,404 ft (5,000 m) |
| Compliance | FCC Part 15B, Class B, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
- Bảo hành: 12 tháng.
