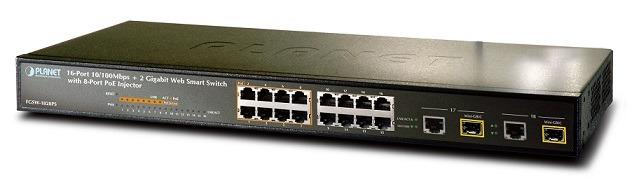

16-port 10/100Mbps + 2 Gigabit TP/SFP PoE Switch PLANET FGSW-1828PS
-Complies with the IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE
802.3z Gigabit Ethernet standard.
-16-Port 10/100Mbps + 2 Gigabit TP / SFP Combo Web Smart
PoE Switch.
-8-Port support 48VDC power to PoE Powered Device (Port 1 to
port 8).
-Each Switching ports support auto-negotiation 10/20, 100/200Mbps (Fast Ethernet), 1000/2000Mbps (Gigabit Ethernet) supported.
-Auto-MDI/MDI-X detection on each RJ-45 port.
-Prevents packet loss with back pressure (Half-duplex) and IEEE 802.3x PAUSE frame flow control (Full-duplex).
-High performance Store and Forward architecture, broadcast storm control, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth.
-4K MAC address table, automatic source address learning and ageing
2.75Mb embedded memory for packet buffers.
-Remote Web interface for Switch management and setup.
-SNMP Trap for alarm notification of events.
-Broadcast Storm Control support.
-Supports up to 18 port-based VLAN groups / 32 IEEE 802.1Q.
-VLAN groups / MTU VLAN.
-Supports up to 2 Trunk groups, each trunk for up to maximum 4 port with 800Mbps bandwidth.
-Supports QoS, bandwidth control and MAC address filter / TCP & UDP filter on each port.
-Supports port mirroring function and IGMP Snooping v1 / v2.
-PoE power Disable/Enable and PoE power consumption monitoring by management interface.
-Firmware upgrade through Web interface.
-Password setting, IP setting and device description setting through Planet Smart discovery utility.
-19-inch rack mount size.
-Internal full-range power supply suitable for worldwide use.
-EMI standards complies with FCC, CE class A.
Đặc tính kỹ thuật
| Hardware Specifications | |
| Fast Ethernet Ports | 16 10/100Base-TX RJ-45 Auto-MDI / MDI-X ports |
| Gigabit Ports | 2 Gigabit TP / SFP combo interfaces |
| Power over Ethernet Ports | 8-Port with PoE injector function (Port 1 to port 8) |
| Switch Processing Scheme | Store-and-Forward |
| Throughput (packet per second) | 5.35Mpps |
| Switch Fabric | 7.2Gbps |
| Address Table | 4K entries |
| Share Data Buffer | 2.75Mb embedded memory for packet buffers |
| Flow Control | Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex |
| Dimensions | 440 x 120 x 44 mm (1U height) |
| Weight | 2.02 kg |
| Power Requirements | 100-240VAC, 50-60 Hz, 1A |
| System Operation Power Consumption / Dissipation (Full load) | 131 watts / 446.71BTU |
| Temperature | Operating: 0~50 degrees C |
| Storage: -40~70 degrees C | |
| Operating Humidity | 5% to 90%, Storage: 5% to 90% (non-condensing) |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3af Power over Ethernet / PSE |
| PoE Power Supply Type | End-Span |
| PoE Power Output | Per Port 48VDC, 350mA. Max. 15.4 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| Power Budget | 110 watts |
| Smart Functions | |
| System Configuration | Web interface |
| Alert Trap | SNMP Trap for alarm notification of events |
| Port Configuration | Port speed duplex mode selection. Flow control disable / enable. Port disable / enable. Port description on each port |
| Bandwidth Control | Yes, 1Mbps / 2Mbps / 4Mbps / 8Mbps / 16Mbps / 32Mbps / 64Mbps |
| Broadcast Storm Control | Yes, 5% / 10% / 25% / 50% / Disable |
| Port Statistics | Display each port's detail Ethernet traffic counter information |
| VLAN | 16 / 18 port-based VLAN groups / 32 IEEE 802.1Q VLAN groups / MTU VLAN |
| Port Trunking | Support 2 groups of 4-Port trunk support, up to 800Mbps bandwidth per trunk |
| Port Mirroring | Port mirroring allows monitoring of the traffic across any port in real time |
| QoS | Allow to assign low / high priority on each port. |
| First-In-First-Out, All-High-before-Low, Weight-Round-Robin QoS policy | |
| MAC Address / TCP & UDP Filter | Yes |
| IGMP Snooping v1 / v2 | Allow to disable or enable |
| PoE Power Control | Allow to disable or enable power provision and assign priority on each PoE port |
| Standards Conformance | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 Ethernet |
| IEEE 802.3u Fst Ethernet | |
| IEEE 802.3ab Gigabit Ethernet | |
| IEEE 802.3z Gigabit Ethernet | |
| IEEE 802.3x Full-duplex Flow control | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.1Q VLAN | |
| IEEE 802.1p QoS | |
-Sản xuất tại Taiwan.
-Bảo hành: 12 tháng.
