FEATURES HIGHLIGHTS

• Inbuilt HTTP Web Server for management.
• Proprietary Software provide.
• Custom LCD display language.
• Voice / USB module option.
• Multiple badge / Fast Registry support.
• Anti-Pass Back / Anti-Duress support.
• Fingerprint / Pin / Card verification mode.
• Holidays / Function Key / Auto-Function Key.
• Time Set / Time Zone / Group setting.

PRODUCT SPECIFICATION

• Verification Mode: Fingerprint / Card / Password
• Software Application: SoMac
• Template Capacity: 9,590
• Sensor Type: Optical
• Resolution: 500dpi
• Sensing Area: 16 x 19mm
• Template Size: 256 ~ 384 Bytes
• Image Size: 272 x 320 (pixel)
• 1:1 Verification time: < 600msec
• 1:1,000 Identification time: < 760msec
• Card Capacity: 20,000

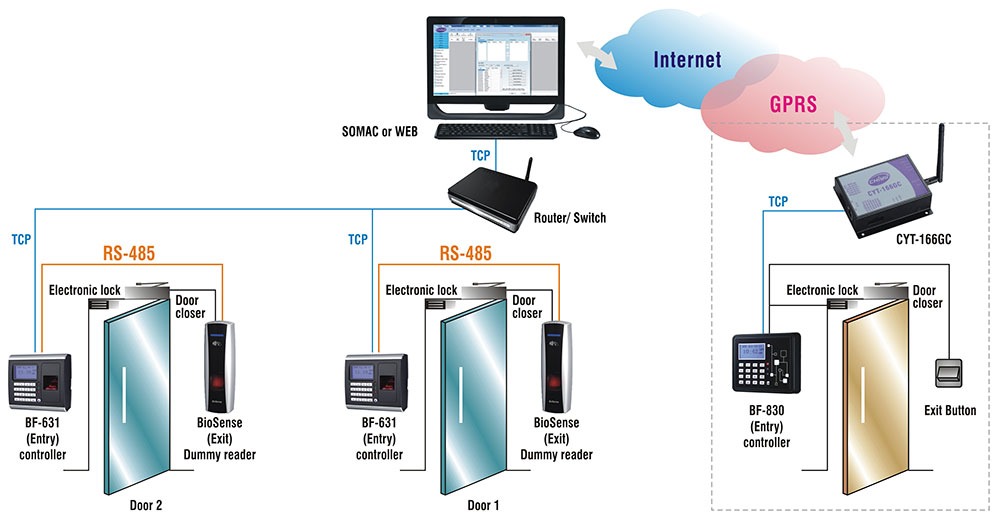

• Communications: TCP/IP, Wiegand / RS485
• DIO Support: DI: 3 / DO: 2
• Inbuilt Relays (Max. Power Loading): Door Lock / Ring (0.5A 120VAC / 1A 30VDC)
• Option: USB / Voice
• System Log: 1,536 entries
• Entry Log: 51,968 entries
• Time Set / Time Zone / Group: 255 / 120 / 255 Sets
• Holiday / Ring Setting: Yes / Yes
• Remote Control / Event Handle: Yes / Yes
• Multiple Badge / Fast Registry: 10 Groups / Yes
• Function Key Setting: 400 (Auto/Manual)
• Anti-Pass Back / Anti Duress: Yes / Yes
• Power Consumption: 780mA ± 5%
• Power Requirement: 9 ~ 24VDC/1A
• Operation Temperature: 0°C ~ 65°C
• Operation Humidity: 5% ~ 80% RH
• Dimension / Weight: 130 x 145 x 51.5mm / 450g

REMARKS

• Web Server, supported by Chiyu Technology's SOMAC Central management software. Access Control and Time & Attendance. Features like anti-passback, user accession, group accession, door setup by verification methods
• All products with 2 years warranty.
