FEATURES HIGHLIGHTS

• Access Control / Attendance Management two in one.
• Web Server Management as well as Software package provide.
• TCP connection, single door to multi-door management become possible.
• IP Camera integrated can be live monitoring when system users punched.

PRODUCT SPECIFICATION

• Verification Mode: FP / Card / Password
• Software Application: SoMac
• Template Capacity: 9,590
• Sensor Type: Optical
• Resolution: 500dpi
• Sensing Area: 16 x 19mm
• Template Size: 256 ~ 384 Bytes
• Image Size: 272 x 320 (pixel)
• 1:1 Verification time: < 600msec
• 1:1000 Identification time: < 760msec
• Card Capacity: 20,000
• Communications: TCP/IP, Wiegand/RS485
• DIO Support: DI: 3 / DO: 2
• Inbuilt Relays (Max power requirement): Lock / Ring (0.5A, 120VAC / 1A, 30VDC)
• Option: USB / Voice
• System Log: 1,536 entries
• Entry Log: 51,968 entries
• Time Set / Time Zone / Group: 255 / 120 / 255 Sets
• Holiday / Rin Settingg: Yes / Yes
• Remote Control / Event Handle: Yes / Yes
• Multiple Badge / Fast Registry: 10 Groups / Yes
• Function Key: 400 (Auto / Manual)
• Anti-Pass Back / Anti Duress: Yes / Yes
• Power Consumption: 780mA ± 5%
• Power Requirement: 9 ~ 24VDC / 1A
• Operation Temperature: 0°C ~ 65°C
• Operation Humidity: 5% ~ 80% RH
• Dimension / Weight: 160.2 x 140.2 x 46.7mm / 501g

REMARKS

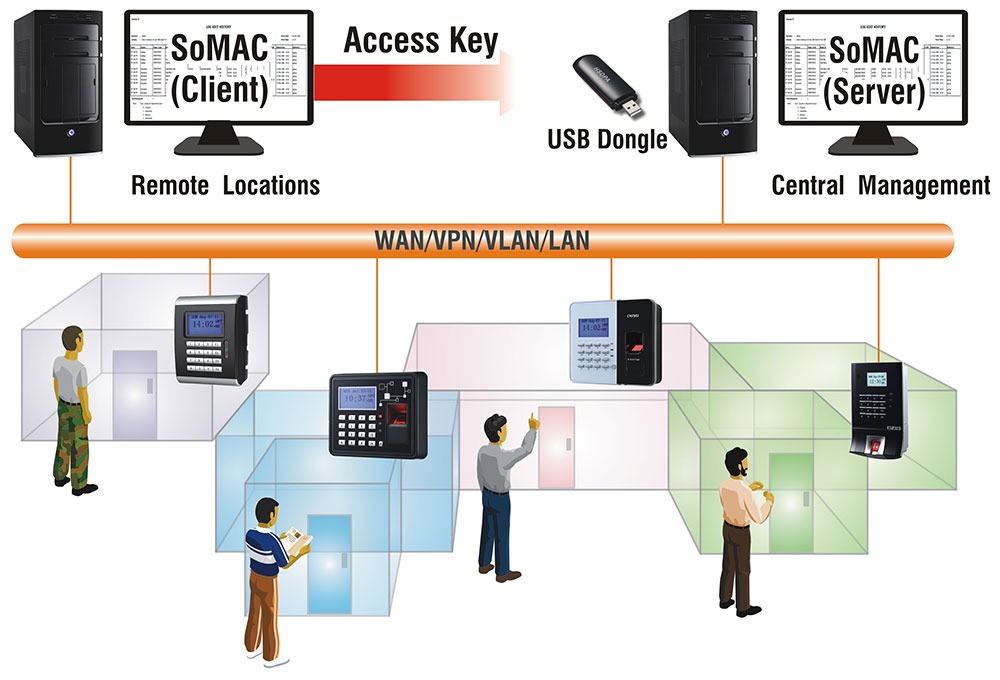

• Web Server, supported by Chiyu Technology's SOMAC Central management software. Access Control and Time & Attendance. Features like anti-passback, user accession, group accession, door setup by verification methods
• All products with 2 years warranty.
