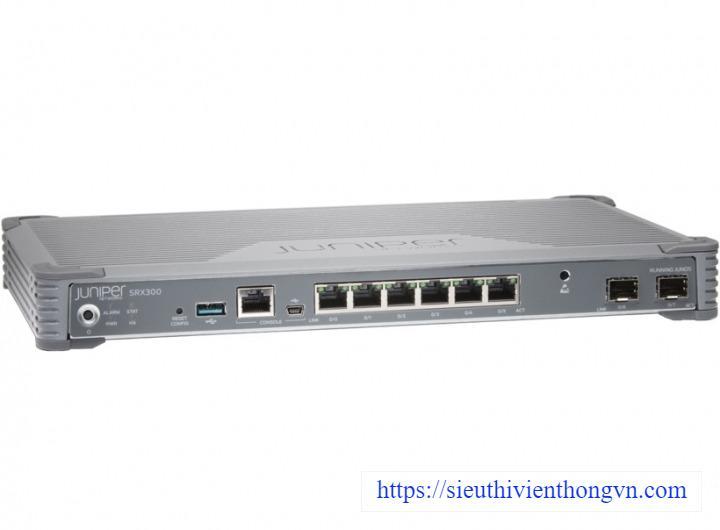

Firewalls and Network Security Router JUNIPER SRX300 Services
- SRX300-SYS-JB is a Juniper SRX300 Services Gateway including hardware (8GE, 4G RAM, 8G Flash, power adapter and cable) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching).
- Routing with packet mode (64B packet size): 300Kpps.
- Routing with packet mode (IMIX packet size): 800Kpps
- Routing with packet mode (1,518 B packet size): 1,500Kpps.
- Firewall performance (max): 1 Gbps.
- IPS performance: 100Mbps.
- AES256+SHA-1/3DES+SHA-1 VPN performance: 250 Mbps.
- Maximum concurrent sessions: 64,000.
- New sessions/second (sustained,TCP, 3-way): 5000.
- Maximum security policies: 1000.
Thông số kỹ thuật
| Connectivity | |
| Total onboard ports | 8x1GbE |
| Onboard RJ-45 ports | 6x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 2x1GbE |
| MACsec-capable ports | 2x1GbE |
| Console (RJ-45 + miniUSB) | 1 |
| USB 3.0 ports (type A) | 1 |
| Memory and Storage | |
| System memory (RAM) | 4 GB |
| Storage (flash) | 8 GB |
| Dimensions and Power | |
| Form factor | Desktop |
| Size (WxHxD) | 12.63 x 1.37 x 7.52 in. (32.08 x 3.47 x 19.10 cm) |
| Weight (device and PSU) | 4.38 lb (1.98 kg |
| Power supply | AC (external) |
| Average power consumption | 24.9 W |
| Average heat dissipation | 85 BTU/h |
| Maximum current consumption | 0.346 A |
| Environmental, Compliance, and Safety Certification | |
| Operational temperature | -4° to 140° F (-20° to 60° C)11 |
| FCC classification | Class A |
| RoHS compliance | RoHS 2 |
| FIPS 140-2 | Level 2 (Junos 15.1X49-D60 |
| Common Criteria certification | NDPP, VPNEP, FWEP, IPSEP (based on Junos 15.1X49-D60) |
- Bảo hành: 12 tháng.
