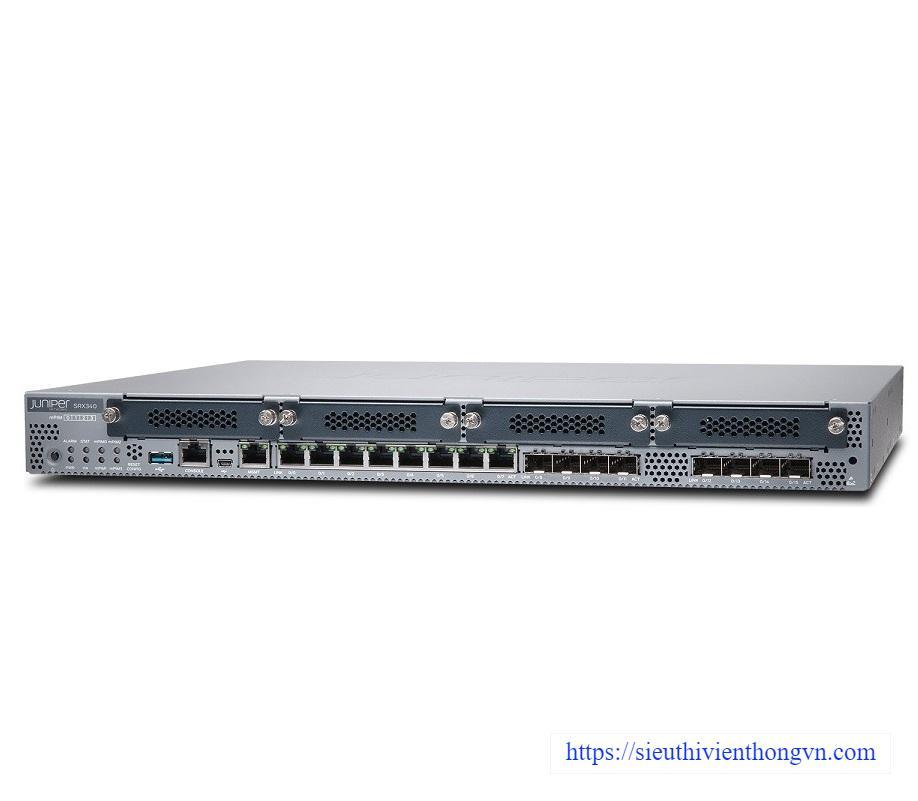

Firewalls and Network Security Router JUNIPER SRX340 Services
- SRX340 Services Gateway includes hardware (16GE, 4x MPIM slots, 4G RAM, 8G Flash, power supply, cable and RMK) and Junos Software Base (Firewall, NAT, IPSec, Routing, MPLS and Switching).
- Routing with packet mode (64 B packet size): 550 Kpps.
- Routing with packet mode (IMIX packet size): 1,600 Mbps.
- Routing with packet mode (1,518 B packet size): 3,000 Mbps.
- Stateful firewall (64 B packet size): 350 Kpps.
- Stateful firewall (IMIX packet size): 1,100 Mbps.
- Stateful firewall (1,518 B packet size): 3,000 Mbps.
- IPsec VPN (IMIX packet size): 200 Mbps.
- IPsec VPN (1,400 B packet size): 600 Mbps.
- Application visibility and control: 1,000 Mbps.
- Recommended IPS: 400 Mbps.
- Next-generation firewall: 200 Mbps.
- Route table size (RIB/FIB) (IPv4 or IPv6): 1 million/600,000.
- Maximum concurrent sessions (IPv4 or IPv6): 256,000.
- Maximum security policies: 2,000.
- Connections per second: 10,000.
- Number of remote access uses: 150.
- Maximum number of VLANs: 2,000.
- IPS sessions: 64,000.
- URLF sessions: 64,000.
- Support WAN Interface:
+ 1 port T1/E1 MPIM (SRX-MP-1T1E1-R);
+ 1 port VDSL2 Annex A/M MPIM (SRX-MP-1VDSL2-R);
+ 1 port serial MPIM (SRX-MP-1SERIAL-R);
+ 4G/LTE MPIM (SRX-MP-LTE-AA & SRX-MP-LTE-AE).
Thông số kỹ thuật
| Connectivity | |
| Total onboard ports | 16x1GbE |
| Onboard RJ-45 ports | 8x1GbE |
| Onboard small form-factor pluggable (SFP) transceiver ports | 8x1GbE |
| MACsec-capable ports | 16x1GbE |
| Out-of-band (OOB) management ports | 1x1GbE |
| Mini PIM (WAN) slots | 4 |
| Console (RJ-45 + miniUSB) | 1 |
| USB 3.0 ports (type A) | 1 |
| Memory and Storage | |
| System memory (RAM) | 4 GB |
| Storage (flash) | 8 GB |
| SSD slots | 1 |
| Dimensions and Power | |
| Form factor | 1U |
| Size (WxHxD) | 17.36 x 1.72 x 14.57 in. (44.09 x 4.36 x 37.01 cm) |
| Weight (device and PSU) | 10.80 lb (4.90 kg) |
| Power supply | AC (internal) |
| Average power consumption | 122 W |
| Average heat dissipation | 420 BTU/h |
| Maximum current consumption | 1.496 A |
| Acoustic noise level | 45.5 dBA |
| Airflow/cooling | Front to back |
| Environmental, Compliance, and Safety Certification | |
| Operational temperature | 32° to 104° F (0° to 40° C) |
| Nonoperational temperature | 4° to 158° F (-20° to 70° C) |
| Operating humidity | 10% to 90% noncondensing |
| Nonoperating humidity | 5% to 95% noncondensing |
| FCC classification | Class A |
| RoHS compliance | RoHS 2 |
| FIPS 140-2 | Level 2 (Junos 15.1X49-D60) |
| Common Criteria certification | NDPP, VPNEP, FWEP, IPSEP (based on Junos 15.1X49-D60) |
- Bảo hành: 12 tháng.
