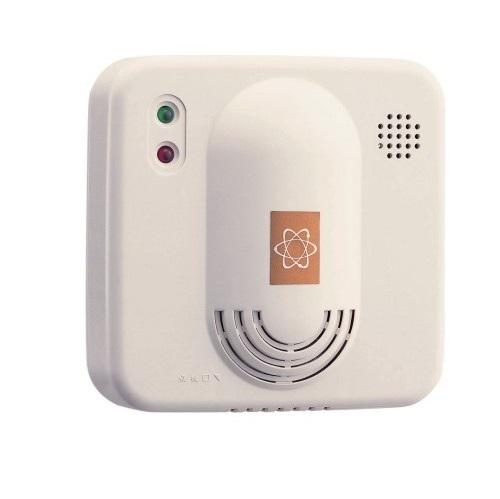

Gas Detector NITTAN KP-35D
- The KP-35D is a 24VDC powered gas detector of combustible, liquefied petroleum gases (LPG) such as propane and butane, which are heavier than air. This detector is used with the KM-35B dedicated base in order to mount on the wall and an electrical junction box.
- Gas Detector of LP gases.
- Catalytic combustion type gas sensor.
- Temperature compensation element reduces false alarms.
- 3-level voltage outputs for Alarm, Trouble and Normal indications.
- Self-restoring from alarm status.
- Input terminal for remote testing.
- Surge protection circuit.
- Sensor drift detection circuit.
- 24 VDC Power Supply.
Thông số kỹ thuật
| Model | KP-35D |
| Approval Number | GP3VBD (Approved by The High Pressure Gas Safety Institute of Japan) |
| Detection Principle | Catalytic Combustion |
| Target Gas | Liquefied Petroleum Gas (LPG, Propane) |
| Alarm Concentration | 1/100 to 1/4 of Lower Explosive Limit (LEL) |
| Alarm Notification | Green LED: Power Red LED: Alarm Buzzer: Alarm (automatically restorable) |
| Startup Time | 40 sec. (Red LED On) |
| Rated Voltage | 24 VDC |
| Operating Voltage | 17 VDC to 35 VDC |
| Power Consumption | Normal: Approx. 0.8W Alarm: Approx. 1.0W |
| Output Voltage (Range) | Normal: 6 V (5V - 6V) Alarm: 12 V (12V - 15V) Trouble: 0 V |
| Operating Temperature | -10℃ to +40℃ |
| Relative Humidity | 85% RH and less |
| Body Material | Flame retardant resin |
| Weight | 140 g (without Base) |
| Mounting Base | KM-35B wall-mount base (optional) |
| Accessory | Test gas x 1 pc |
- Bảo hành: 12 tháng.
