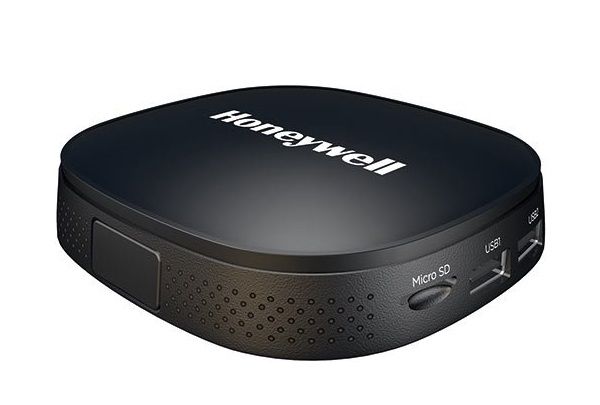

Gateway HONEYWELL ADPRO iFT 66000000
- Hệ điều hành ADPRO® XO™ Security Operating System, Linux based
- Recording type: Event recording on MicroSD card (not supplied), min. capacity 32GB
- Chuẩn nén hình ảnh: H.264 and H.265 - camera dependent using XO 4.2 and onward
- Giao tiếp mạng: 10/100 BASE-T, autodetection, full duplex, RJ45
- Băng thông: 4 streams 1920x1080/25fps max. 2Mbps
- Video resolution and IPS:
o 4 analytics streams max 4 CIF/5fps max. 1Mbps, with analytic on each channel.
o 4 streams max. 1920x1080/25fps max. 2Mbps.
- Nguồn điện: DC 5V/2A supplied via universal 120/240 VAC power supply
Thông số kỹ thuật
| Model | 66000000 |
| Operational | |
| Operating system | ADPRO® XO™ Security Operating System, Linux based |
| Video input | 4 IP cameras |
| Video output | N/A |
| Video compression | H.264 and H.265 - camera dependent using XO 4.2 and onward |
| Video resolution and ips | 4 analytics streams max 4 CIF/5fps max. 1Mbps, with analytic on each channel. 4 streams max. 1920x1080/25fps max. 2Mbps. |
| Wifi | 802.11 b/g/n 2.4 Ghz Broadcom AP6212 module |
| Bandwidth capacity | 4 streams 1920x1080/25fps max. 2Mbps |
| Bandwidth management | Configurable variable or constant bitrate / Configurable bandwidth limiter |
| Audio input | Via approved cameras |
| Audio output | Via approved cameras and local 2 V output impedance 600-Ω |
| Alarm inputs | Via XO I/O interface USB module: up to 20 Via Network I/O module with PoE: from 4 up to 128 |
| Relay outputs | Via XO I/O interface USB module: up to 8 Via Network I/O module with PoE: from 4 up to 128 |
| USB Ports | 2 |
| Web server | XO client - integrated web client application (ActiveX) |
| Ethernet | 10/100 BASE-T, autodetection, full duplex, RJ45 |
| Recording type | Event recording on MicroSD card (not supplied), min. capacity 32 GB |
| IP camera integration | Brand specific, generic, support ONVIF Profile S & T compliant IP cameras |
| Management | Web client interface (XO client), ADPRO VideoCentral Platinum, third-party software (SDK available) and iOS/Android iTrace App |
| Power supply | DC 5V/2A supplied via universal 120/240 VAC power supply |
| Operating temperature | 0~70 °C Storage Temp -10 to 70 °C |
| Humidity | Humidity 5–90 % non-condensing |
| Dimensions (W x H x D) | 101.6 x 101.6 x 23.6 mm |
- Bảo hành: 24 tháng.
