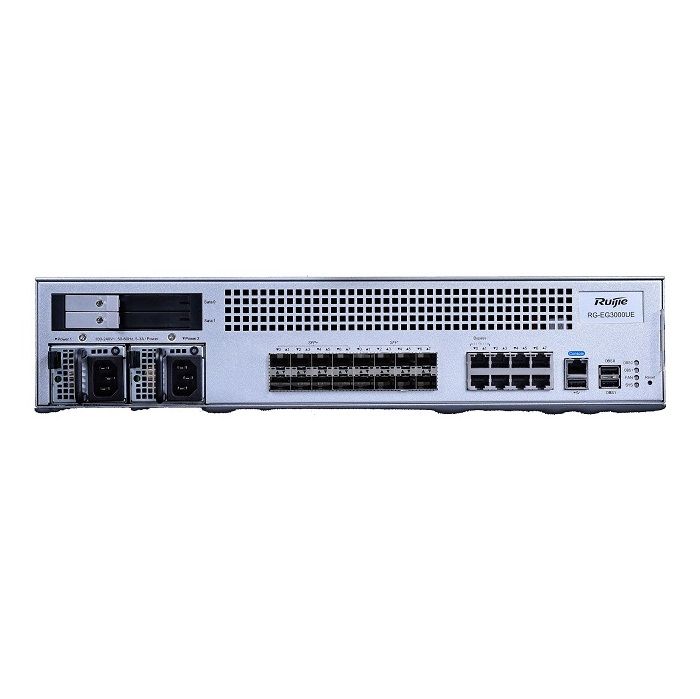

Gateway RUIJIE RG-EG3000UE
- Ruijie RG-EG3000UE next-generation high-performance integrated gateway is a high-end gateway product tailored for medium to large-scale network scenarios such as universities, Education Bureau, medium to large enterprises and wireless cities. RG-EG3000UE employs the multi-core MIPS hardware architecture combined with Ruijie’s self-developed fast forwarding technology to provide high-speed NAT forwarding performance.
- The RG-EG3000UE next-generation high-performance integrated gateway supports a variety of features including multi-link load balancing, smart DNS, application/user-based routing technologies, smart flow control, AAA (authentication, authorization, and accounting) gateway, online behavior management and visualized IPsec VPN. With its smart scheduling and behavior management technologies for network traffic, RG-EG3000UE can effectively optimize the gateway network, improve service performance, manage online behavior and meet the demands of large-scale network gateway for a wide variety of industrie.
Đặc tính kỹ thuật
| Model | EG3000UE |
| Basic Features | |
| CPU | Multi-core MIPS |
| Fixed Ports | 8 GE combo ports 8 10G SFP+ ports |
| Hard Disk | 1 hard disk slots (hard disks sold separately) |
| Power Slots | 2 (Power Supply Unit Included) |
| Power Redundancy | Yes (Hot Swappable) |
| Memory | 32G |
| Copper Bypass | 1 pair (2 ports) |
| Fiber Bypass | 2 |
| Management Ports | 1 console port 1 USB 2.0 port |
| Dimensions (W x D x H) (mm) | 440 x 550 x 88.1 mm |
| Rack Height | 2U |
| Weight | 14.3kg |
| Power Supply | AC input: Rated voltage range: 100V to 240V AC Maximum voltage range: 90V to 264V AC Frequency: 50Hz to 60Hz |
| Power Consumption | <150W |
| Performance & Feature | |
| Performance | 42 Gbps (1518 bytes) 30 Gbps (512bytes) 8 Gbps (64 bytes) |
| Concurrent Session | 8 Mils |
| Recommended Concurrent User | 10K |
| Portal Authentication Capacity | 5K (Max Concurrent Users) |
| Portal Authentication Type | Username/Password Auth (Local, Windows-based AD/LDAP Integration) One-click Authentication; Guest Voucher (Ruijie Cloud required); |
| Seamless Authentication (Portal) | Support |
| Network Protocol | Support TCP/IP protocols, including IP, ICMP, TCP, UDP, etc. Support multiple routing protocols, including static routing, RIP (V1 / V2) and OSPF Support DHCP Relay and DHCP Server Support PPPoE Support NAT and multiple NAT ALG including FTP, H.323, DNS, etc. Support ARP, trusted ARP, proxy ARP, etc. Support Ping and Traceroute fault detection Support QoS (PQ, CQ, FIFO, WFQ, CBWFQ, etc.) |
| Application Visibility | Support self-developed 43 types of applications / more than 120 application features, customizable protocol identification: P2P: BitTorrent, eMule, Thunder, EDONKEY, FlashGet & etc. Multimedia: YouTube, Facebook Video, WebEx Conference & etc. Social Media: Facebook, Twitter, LinkedIn, Pinterest & etc. VOIP/Chat: Skype, Viber, Google Hangout, Jabber, Facebook Messenger & etc. Instant Messaging/Email: Gmail, MSN, QQ, YAHOO & etc. Software Update: Window, McAfee, Kaspersky, ESET & etc. Cloud-based File Collaboration: GoogleDrive, Dropbox, OneDrive, iCloud & etc. Enterprise Application：HTTP, FTP, SMTP, POP3, IMAP, Telnet, LOTUS-NOTES, SQL Server, Oracle, Mysql, HTTPS & etc. |
| Network Security | Anti-ARP Spoofing Defense against malicious attacks from internal and external networks Support secure address binding Block WAN Ping Prevent Port Scan Attack Prevent Fragmentation Attack Prevent ICMP Flood Attack Prevent Teardrop Attack Prevent Ping of Death Attack Prevent Land Attack Prevent Smurf / Fraggle attack Prevent SYN Flood Attack |
| URL Filtering | Support custom URLs Support remote HTTP automatic URL library upgrade Local log storage (NAT log, traffic log, URL log, etc.) Support storage on external log server |
| IPsec VPN Tunnel | 4000 |
| Layer 2 Features | Support Bridging Support LAN Port Aggregation |
| Ruijie Cloud Integration Feature | Support device health monitoring status Support centralized configuration change management & backup Support Top 10 Application/User traffic visualization Support device firmware management Support event-based alarm notification |
| Other Features | Support web authentication Support push advertising page Support IPsec VPN Support smart DNS Support multi-link load balancing Support remote HTTP online upgrade for signature library, software version, etc. |
| Service and Support | Support multi-link load balancing Support remote HTTP online upgrade for signature library, software version, etc. Lifetime Free signature library upgrade |
- Bảo hành: 3 năm.
