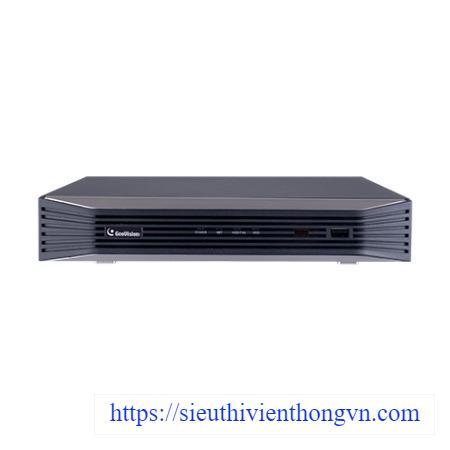

Geovision GV-SNVR1611 16 Channel NVR Network Video Recorder with POE switch
The GV-SNVR1611 is an H.264/H.265 Linux-embedded Standalone Network Video Recorder which records video files directly to the internal hard drive, supporting up to 16 channels of IP cameras for network surveillance. GV-SNVR1611 has 16-port built-in PoE+ (IEEE 802.3at), functioning to carry network and power to IP cameras. Featuring with up to 4K resolution video output, GV-SNVR1611 eliminates the need of a separate PC to view and play back video from the unit. Its USB ports allow you to connect a USB flash drive to import or export system settings, update firmware, save snapshot files and back up video in AVI format.
Key features of Geovision GV-SNVR1611
- 16-Channel video recording
- No HDD included
- Up to 4000 x 3000 resolution for each channel
- Dual streams support
- 16-Port PoE+ (IEEE 802.3at) for camera connection
- 4K HDMI / 1080p VGA video output
- 2 SATA HDD drawer (3.5'') for up to 16 TB storage
- Two-way audio
- Four sensor inputs and one alarm output
- Automatic search and set-up for IP cameras
- Support for third-party IP cameras through ONVIF and RTSP protocol
- Continuous, motion and scheduled recordings
- Timeline playback
- Multi-channel playback
- Display of HDD status and system temperature
- DST (Daylight Saving Time) support
- NTP (Network Time Protocol) support
- GeoVision DDNS server support
- E-mail notification for recording error and password retrieval
- Recording export
- Remote live view through Web browser
- PTZ control using GV-Joystick V2 or on-screen panel
- Smart device access (iOS and Android)
- Support for 13 languages
Notes:
- For supported IP cameras, the resolutions of Main Stream and Sub Stream both must meet the requirements noted under Specifications.
- GV-SNVR only supports recording frame rates of up to 30 fps.
- GV-SNVR1611 only supports recording bandwidths of up to 80 Mbps.
- GV-SNVR1611 also supports EVS-ABD1300 / ABL1300 / ADR1300 and UVS-ABD1300 / ABL1300 / ADR1300.
COMPATIBLE PRODUCTS:
- GV-Joystick V2
- GV-POE Switch
- GV-WiFi Adaptor V2
