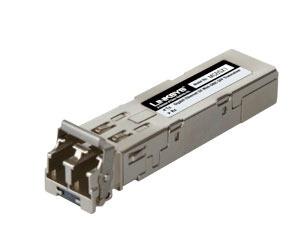

Gigabit SX Mini-GBIC SFP Transceiver Cisco MGBSX1
- 1000BASE-SX SFP transceiver, for multimode fiber, 850 nm wavelength, support up to 550 m
Features
- Built-in spring latch for easy module removal
- Hot swappable
- Low insertion-loss duplex LC receptacle
- Low electromagnetic interference (FCC Part 15, Class B) for clear communications
- Meets FDA and International Electrotechnical Commission (IEC) eye safety standards
Specifications | |
Media | Multimode fiber (MMF) |
Application | 1000BASE-SX |
Connector type | Duplex LC |
Wavelength typical (Tx) | 850 nm |
Wavelength range (Rx) | 850 nm |
Performance | |
Maximum distance | up to 550 m |
Average output power | -9.5 dBm to -4 dBm |
Receiver sensitivity | -20 dBm (typ) |
Receiver overload | -0 dBm |
Environmental | |
Dimensions W x H x D | 13.4 x 8.5 x 56.5 mm (0.53 x 0.33 x 2.22 in.) |
Unit weight | 0.018 kg (0.63 oz. ) |
Power | 1W (max) |
Operating temperature | 32º to 158ºF (0º to 70ºC) |
Storage temperature | -40º to 185ºF (-40º to 85ºC) |
Operating humidity | 10% to 85% noncondensing |
Storage humidity | 5% to 90% noncondensing |
Standards | |
Compliance | FCC Part 15 Class B |
EN55022 Class B (CISPR 22B) | |
VCCI Class B | |
Safety | FDA 21 CFR 1040.10 and 1040.11 |
EN60950, EN (IEC) 60825-1,2 | |
- Bảo hành: 12 tháng.
