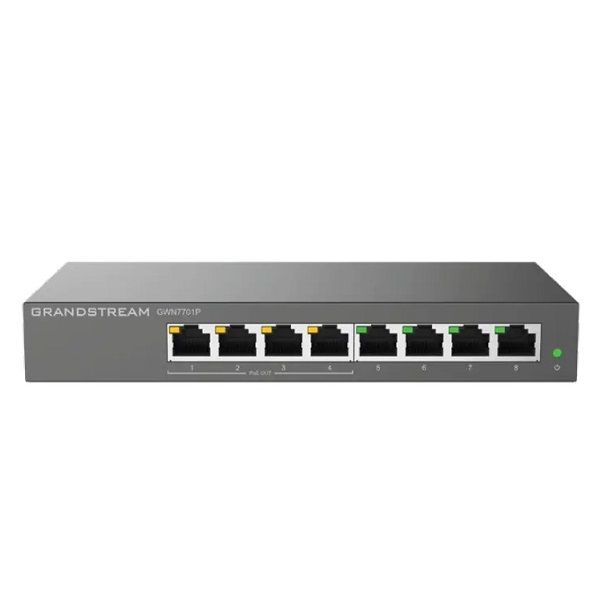

8-Port Gigabit PoE Unmanaged Network Switch Grandstream GWN7701P
- Support 4-port Gigabit and 4-port Gigabit PoE.
- Network Media: 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex.
- Mac Address Table: 8K.
- Switching Capacity: 16Gbps.
- Jumbo Frame: 9KB.
- Dimensions (L x W x H): 190 x 100 x 28 mm.
Thông số kỹ thuật
| Gigabit Ports | 8 |
| PoE Ports | 4 |
| Enclosure | Metal |
| Connector Type | Metal |
| Mounting | Desktop/ Wall-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Port Feature | 8× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| PoE Configuration | - 1~4 Ports 802.3 af/at compliant - Up to 30 W on Each Port, Total 60W Power Budget; - Overload to cut off the lowest- priority port. - Priority: Port 4 to Port 1 |
| LED Indicators | Per port: Link/Activity Green Per device: Power Green |
| Mac Address Table | 8K |
| Switching Capacity | 16Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS Unlink clear FDB Feature IGMP: - IGMP Fast-Leave - IGMP Snoop - Route Port Autolearn - Query Refresh Member Port |
| Power Adapter | External 53.5V/1.22A |
| Max Power Consumption by Base Station | 3W (excluding PoE output power) |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F) Storage Temperature: -40 to 70 °C (-40 to 158 °F) Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 5% to 90% Non-condensing |
| Dimensions (L x W x H) | 190 x 100 x 28mm |
| Weight | 0.44kg |
| Compliance | FCC, CE, RCM, IC, UKCA |
- Bảo hành: 24 tháng.
