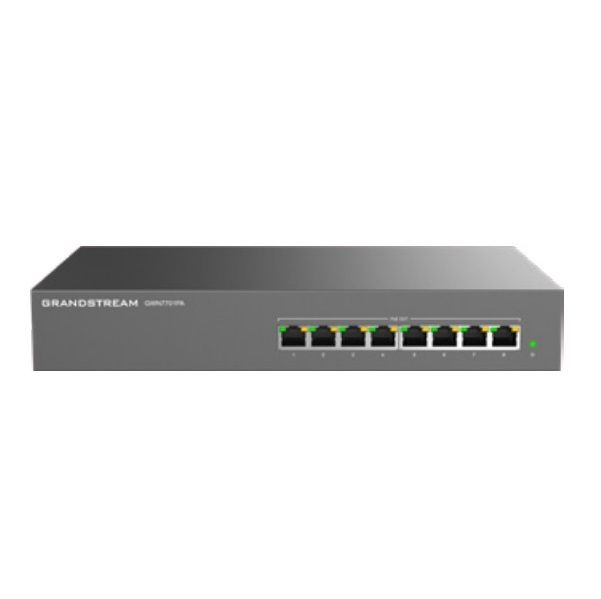

8-Port Gigabit PoE Unmanaged Network Switch Grandstream GWN7701PA
- Hỗ trợ 8 cổng Gigabit 10/100/1000 tích hợp PoE công suất 30Wat trên mỗi cổng.
- Tổng công suất: 145 Wat.
- Hỗ trợ tính năng Smart dynamic PoE cho các thiết bị trên các cổng (tránh bị quá tải, quá áp).
- Tương thích chuẩn IEEE 802.3af/at.
- Hiệu năng chuyển mạch 16Gbps.
Thông số kỹ thuật
| Gigabit Ports | 8 |
| PoE Ports | 8 |
| Enclosure | Metal |
| Mounting | Desktop/Rack-Mount |
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at |
| Port Feature | 8× 10/100/1000Mbps RJ45 Ports AUTO Negotiation AUTO MDI/MDIX |
| Network Media | 1000Base-T/100Base-TX/10Base-T, Half/Full-Duplex |
| PoE Configuration | - 1~8 Ports 802.3 af/at compliant - Up to 30 W on Each Port, Total 145W Power Budget; - Overload to cut off the lowestpriority port. - Priority: Port 8 to Port 1 |
| LED Indicators | Per port: Link/Activity - Green Per port: PoE output - Yellow Per device: Power Green |
| Mac Address Table | 8K |
| Switching Capacity | 16Gbps |
| Jumbo Frame | 9KB |
| Advanced Features | Mac Address Auto-Learning And Auto-Aging IEEE 802.3x Flow Control 802.1p/DSCP QoS Unlink clear FDB Feature IGMP: - IGMP Fast-Leave - IGMP Snoop - Route Port Autolearn - Query Refresh Member Port |
| Power Adapter | Internal 100-240V AC AC, 50/60Hz,150W |
| Max Power Consumption by Base System | 6.7W @220V/50Hz (excluding PoE output power) |
| Environmental | Operating Temperature: 0 to 40 °C (32 to 104 °F) Storage Temperature: -20 to 60 °C (-4 to 140 °F) Operating Humidity: 10% to 90% Non-condensing Storage Humidity: 10% to 90% Non-condensing |
| Dimensions (L x W x H) | 280 x 180 x 44mm |
| Weight | 1.5KG |
| Compliance | FCC, CE, RCM, IC, UKCA |
- Bảo hành: 24 tháng.
