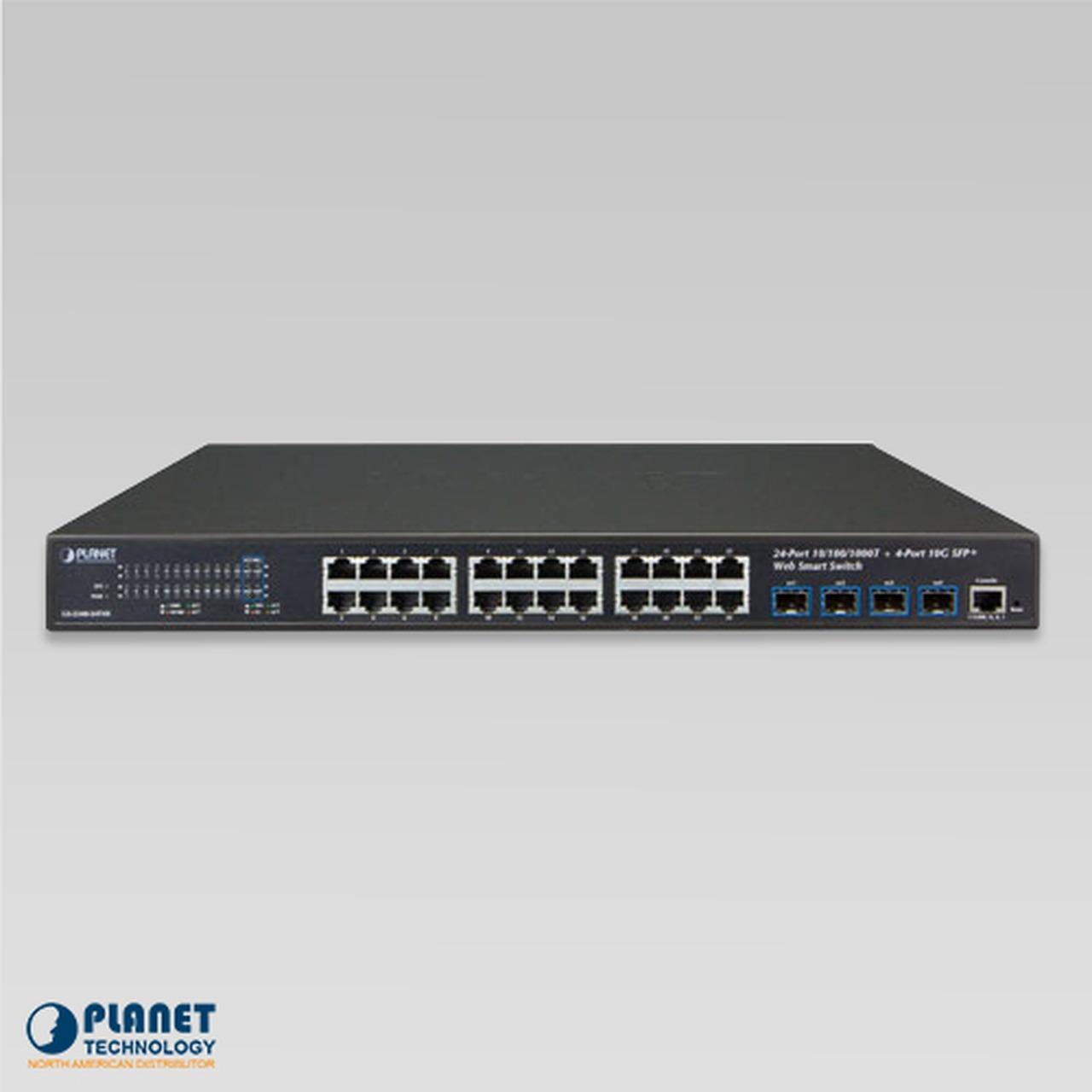

24-port 10/100/1000Mbps + 4-port 10G SFP + Web Smart Switch PLANET GS-2240-24T4X

24-port 10/100/1000Mbps + 4-port 10G SFP + Web Smart Switch PLANET GS-2240-24T4X

  • MS 000002890
  • PLANET
Giá : 11,165,000 vnđ (Đã bao gồm VAT)

24-port 10/100/1000Mbps + 4-port 10G SFP + Web Smart Switch PLANET GS-2240-24T4X

24-port 10/100/1000Mbps + 4-port 10G SFP + Web Smart Switch PLANET GS-2240-24T4X
24-port 10/100/1000T + 4-port 10G SFP+ Web Smart Manageable Ethernet Switch, 802.1Q VLAN, IGMP Snooping, MSTP, LACP, SNMPv1/v2c.
High-Density, Resilient Deployment Switch Solution for Gigabit Networking of Enterprise, Campus and Data Center
For the growing Gigabit network and IoT (Internet of Things) demand, PLANET has launched a new-generation Web Smart 1/10 Gigabit Switch solution, the GS-2240 switch series, to meet the needs of enterprises, telecoms and campuses for a large-scale network deployment. The GS-2240-24T4X is a Layer 2 Web Smart Switch, which comes with 24 10/100/1000Mbps Gigabit Ethernet ports and 4 10G SFP+ uplink slots. The GS-2240 switch series also provides a quick, safe and cost-effective 1/10G network solution for small and medium-sized businesses.
Cost-effective 10Gbps Uplink Capacity
PLANET has made a big leap in the evolution of Ethernet with its launch of the GS-2240-24T4X whose four 10G SFP+ slots support dual-speed, 10GBASE-SR/LR or 1000BASE-SX/LX, meaning the administrator now can flexibly choose a suitable SFP/SFP+ transceiver according to the transmission distance or speed required to extend the network efficiently. They greatly support an SMB network to achieve 10Gbps high performance in a cost-effective way because 10GbE interface usually could be available in Layer 3 Switch, which could be too expensive to SMBs.
Robust Layer 2 Features
The GS-2240 switch series can be programmed for advanced switch management functions such as dynamic port link aggregation (LACP), Spanning Tree Protocol (STP), SNMP, bandwidth control, LLDP, DHCP snooping, IGMP snooping and L2 MAC security control. The GS-2240 switch series provides IEEE 802.1Q tagged VLAN and private VLAN. With the supporting port aggregation, they allow the operation of a high-speed trunk by combining multiple ports and support fail-over as well.
Efficient Traffic Control
The GS-2240 switch series is loaded with powerful traffic management to enhance services to business-class data, voice, and video solutions. The functionality includes broadcast, multicast and unknown unicast storm control, and per port bandwidth control. It guarantees the best performance for VoIP and video stream transmission, and empowers the enterprises to take full advantage of the limited network resources.
Đặc tính kỹ thuật

Copper Ports24 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port
SFP/mini-GBIC Slots4 10GBASE-SR/LR SFP+ interface (XE1 to XE4)
Compatible with 1000BASE-SX/LX/BX SFP transceiver
Switch ArchitectureStore-and-Forward
Switch Fabric128Gbps/non-blocking
Switch Throughput@64Bytes95.24Mpps
Address Table16K entries
Shared Data Buffer1.5Mbytes
Flow ControlIEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
Jumbo Frame13K bytes
Reset Button< 5 sec: System reboot
> 5 sec: Factory default
LEDPWR, SYS, 10/100, 1000, 10G
Power Requirements100~240V AC, 50/60Hz, auto-sensing
Dimensions (W x D x H)440 x 230 x 44 mm, 1U height
ESD ProtectionContact Discharge 4KV DC
Air Discharge 8KV DC
EnclosureMetal
Weight2865g
Power Consumption/ Dissipation31 watts (max.)/106 BTU
Layer 2 Functions
Port MirroringTX/RX/both
Many-to-1 monitor
VLAN802.1Q tagged-based VLAN
Up to 4000 VLAN groups, out of 4094 VLAN IDs
IP subnet-based VLAN
MAC-based VLAN
Protocol-based VLAN
Private VLAN
Link AggregationIEEE 802.3ad LACP and static trunk
Supports 32 groups with 8 ports per trunk group
Spanning Tree ProtocolIEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
IGMP SnoopingIGMP snooping v1, v2, v3, up to 255 multicast groups
IGMP querier mode support
SecurityDHCP snooping
Static MAC address
MAC binding
MAC auto binding
Per port MAC address entries limitation
Broadcast, multicast, unknown unicast storm control
Management Functions
Basic Management InterfacesWeb browser, Telnet, console
SNMP v1, v2c
Firmware upgrade by HTTP protocol through Ethernet network
System log
SNMP MIBsRFC 1213 MIB-II
RFC 1215 Generic Traps
Standards Conformance
Regulatory ComplianceFCC Part 15 Class A, CE, LVD
Standards ComplianceIEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3ae 10 Gigabit Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1ab LLDP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1Q VLAN tagging
RFC 768 UDP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3

-Sản xuất tại Taiwan.
-Bảo hành: 12 tháng.
