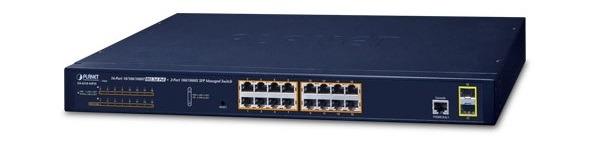

16-Port 10/100/1000T 802.3at PoE + 2-Port 100/1000X SFP Managed Switch PLANET GS-4210-16P2S
- PLANET GS-4210-16P2S is an ideal Gigabit PoE Switch which provides cost-effective advantage to local area network and is widely accepted in the SMB office network. It offers intelligent Layer 2 data packet switching and management functions, friendly web user interface and stable operation.
- The model complies with IEEE 802.3at Power over Ethernet Plus (PoE+) at an affordable price.
- The GS-4210-16P2S is equipped with 16 10/100/1000BASE-T Gigabit Ethernet ports and 2 100/1000BASE-X SFP interfaces with inner power system. Its 16 Gigabit Ethernet ports integrated with 802.3at PoE+ injector function on all ports. It offers a rack-mountable, affordable, safe and reliable power solution for SMBs deploying Power over Ethernet networks, or requiring enhanced data security and network traffic management.
Physical Port
- 16 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector.
- 2 100/1000BASE-X mini-GBIC/SFP slots
- 1 RJ45 console interface for switch basic management and setup
Power over Ethernet
- Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE.
- Up to 16 ports of IEEE 802.3af/802.3at devices powered.
- Supports PoE Power up to 30.8 watts for each PoE port.
- Auto detects powered device (PD)
- Circuit protection prevents power interference between ports
- Remote power feeding up to 100 meters in standard mode and 250m in extend mode
PoE Management
- Total PoE power budget control
- Per port PoE function enable/disable
- PoE port power feeding priority
- Per PoE port power limitation
- PD classification detection
Intelligent PoE features
- PoE usage threshold control
- PD alive check
- PoE schedule
Layer 2 Features
- Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
- High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Supports VLAN
- IEEE 802.1Q tagged VLAN, up to 256 VLAN groups, out of 4094 VLAN IDs
- Protocol VLAN
Supports Spanning Tree Protocol
- IEEE 802.1D Spanning Tree Protocol (STP).
- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP).
- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN.
- BPDU Guard.
Supports Link Aggregation
- IEEE 802.3ad Link Aggregation Control Protocol (LACP).
- Cisco ether-channel (static trunk).
- Provides port mirror (many-to-1).
Quality of Service
- Ingress/Egress Rate Limit per port bandwidth control
- Storm Control support
- Broadcast, Unknown Unicast, and Unknown Multicast
- Traffic classification
- IEEE 802.1p CoS- DSCP/IP Precedence of IPv4/IPv6 packets
- Strict priority and Weighted Round Robin (WRR) CoS policies
Multicast
- Supports IGMP snooping v1, v2 and v3.
- Supports MLD snooping v1 and v2.
- Querier mode support.
- IGMP snooping port filtering.
- MLD snooping port filtering.
- MVR (Multicast VLAN Registration).
Security
- Authentication
- IEEE 802.1X port-based network access authentication
- Built-in RADIUS client to cooperate with the RADIUS servers
- DHCP Option 82
- RADIUS/TACACS+ login user access authentication
Access Control List
- IPv4 IP-based ACL
- IPv4 IP-based ACE
- MAC-based ACL
- MAC-based ACE
- MAC Security
- Static MAC
- MAC Filtering
- Port Security for Source MAC address entries filtering
- DHCP Snooping to filter distrusted DHCP messages
Management
- Switch Management Interface
- Console/Telnet Command Line Interface
- Web switch management
- SNMP v1, v2c and v3
- HTTPs secure access
- Built-in Trivial File Transfer Protocol (TFTP) client
- Static and DHCP for IP address assignment
- System Maintenance
- Firmware upload/download via HTTP/TFTP
- Configuration upload/download through HTTP/TFTP
- Hardware reset button for system reboot or reset to factory default
- SNTP Network Time Protocol
- Link Layer Discovery Protocol (LLDP) Protocol and LLDP-MED
- SNMP trap for interface Link Up and Link Down notification
- Event message logging to remote Syslog server
- Four RMON groups (history, statistics, alarms and events)
- PLANET Smart Discovery Utility
Đặc tính kỹ thuật
| Model | GS-4210-16P2S |
| Hardware Specifications | |
| Copper Ports | 16 10/100/1000BASE-T RJ45 auto-MDI/MDI-X port |
| SFP/mini-GBIC Slots | 2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode |
| PoE Injector Port | 16 ports with 802.3af/at PoE injector function |
| Console | 1 RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 36Gbps/non-blocking |
| Switch Throughput@64 bytes | 26.78Mpps@64 bytes |
| MAC Address Table | 8K entries |
| Shared Data Buffer | 4Mbits |
| Flow Control | IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex | |
| Jumbo Frame | 9K bytes |
| Reset Button | < 5 sec: System reboot |
| > 5 sec: Factory default | |
| LED | System: |
| Power (Green) | |
| 10/100/1000T RJ45 Interfaces (Port 1 to Port 16): | |
| 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange), PoE (Orange) | |
| 100/1000Mbps SFP Interfaces (Port 17 to Port 18): | |
| 1000 LNK/ACT (Green), 100 LNK/ACT (Orange) | |
| Thermal Fan | 2 |
| Power Requirements | 100~240V AC, 50/60Hz, 4A (max.) |
| Power Consumption/Dissipation | Max. 281 watts/964 BTU |
| Dimensions (W x D x H) | 445 x 207 x 45 mm (1U height) |
| Weight | 2.8kg |
| Enclosure | Metal |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per Port 53V DC, 30.8 watts (max.) |
| PoE Power Budget | 220 watts (max.) |
| Number of PDs, 7 watts | 16 units |
| Number of PDs, 15.4 watts | 14 units |
| Number of PDs, 30 watts | 7 units |
| Layer 2 Functions | |
| Port Mirroring | TX/RX/Both |
| Many-to-1 monitor | |
| VLAN | 802.1Q tagged-based VLAN |
| Up to 256 VLAN groups, out of 4094 VLAN IDs | |
| 802.1ad Q-in-Q tunneling | |
| Voice VLAN | |
| Protocol VLAN | |
| GVRP | |
| Link Aggregation | IEEE 802.3ad LACP supports 8 groups of 16-port trunk |
| Static trunk supports 8 groups of 8-port trunk | |
| Spanning Tree Protocol | IEEE 802.1D STP |
| IEEE 802.1w RSTP | |
| IEEE 802.1s MSTP | |
| Multicast | IGMP (v2/v3) Snooping |
| IGMP Querier | |
| Up to 256 multicast groups | |
| Access Control List | IPv4 IP-based ACL |
| MAC-based ACL | |
| QoS | 8 mapping ID to 8 level priority queues |
| - Port Number | |
| - 802.1p priority | |
| - DSCP field in IP Packet | |
| Traffic classification based, Strict priority and WRR | |
| Security | IEEE 802.1X Port-based authentication |
| Built-in RADIUS client to cooperate with RADIUS server | |
| RADIUS/TACACS+ user access authentication | |
| MAC filter | |
| Static MAC address | |
| DHCP Snooping and DHCP Option82 | |
| STP BPDU Guard, BPDU Filtering and BPDU Forwarding | |
| Management Functions | |
| Basic Management Interfaces | Web browser, Telnet, SNMP v1/v2c/v3 and RJ45 Console |
| Firmware upgrade by HTTP/TFTP protocol through Ethernet network | |
| Remote/Local Syslog | |
| System log | |
| LLDP protocol | |
| SNTP | |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
| SNMP MIBs | RFC 3635 Ethernet-like MIB |
| RFC 2863 Interface Group MIB | |
| RFC 2819 RMON (1, 2, 3, 9) | |
| RFC 1493 Bridge MIB | |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX/100BASE-FX | |
| IEEE 802.3z Gigabit SX/LX | |
| IEEE 802.3ab Gigabit 1000BASE-T | |
| IEEE 802.3x Flow Control and Back pressure | |
| IEEE 802.3ad Port Trunk with LACP | |
| IEEE 802.1D Spanning Tree protocol | |
| IEEE 802.1w Rapid Spanning Tree protocol | |
| IEEE 802.1s Multiple Spanning Tree protocol | |
| IEEE 802.1p Class of Service | |
| IEEE 802.1Q VLAN Tagging | |
| IEEE 802.1x Port Authentication Network Control | |
| IEEE 802.1ab LLDP | |
| IEEE 802.3af Power over Ethernet | |
| IEEE 802.3at Power over Ethernet Plus | |
| RFC 768 UDP | |
| RFC 793 TFTP | |
| RFC 791 IP | |
| RFC 792 ICMP | |
| RFC 2068 HTTP | |
| RFC 1112 IGMP version 1 | |
| RFC 2236 IGMP version 2 | |
| RFC 3376 IGMP version 3 | |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
| Storage | Temperature: -10 ~ 70 degrees C |
| Relative Humidity: 5 ~ 95% (non-condensing) | |
- Bảo hành: 12 tháng.
