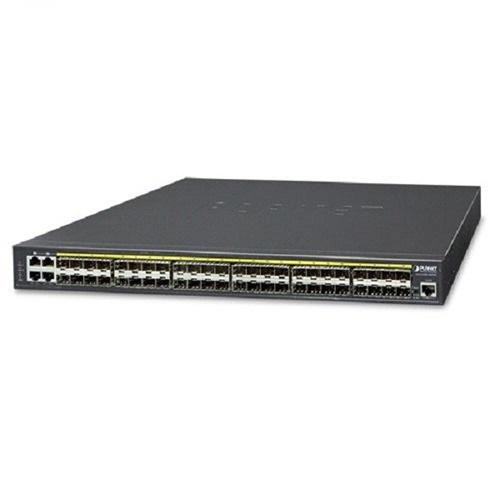

48-port 100/1000Mbps Switch PLANET GS-5220-44S4C
-L2+/L4 48-Port 100/1000X SFP with 4 Shared TP Managed Switch, with Hardware Layer3 IPv4/IPv6 Static Routing.
-Supporting both IPv6 and IPv4 protocols.
-GS-5220-44S4C is a Layer 2+ Managed Gigabit Switch that features 44-Port 100/1000BASE-X + 4-Port Gigabit TP/SFP Combo, provides high-density performance and supports Hardware static Layer 3 routing in a 1U case.
-With total 96Gbps high performance switch architecture, the GS-5220-44S4C can handle extremely large amounts of data in a secure topology linking to a data center / campus / telecom backbone or high capacity servers.
-Each of the SFP slots supports Dual-Speed, 100BASE-FX and 1000BASE-SX/LX, meaning the administrator now can flexibly choose the suitable SFP transceiver modules according to the transmission distance or the transmission speed required to extend the network efficiently.
-Address Table: 16K entries, automatic source address learning and ageing.
- Power: 100~240VAC, 50/60Hz.
-Power Consumption: 45 watts.
-Dimensions: 440 x 300 x 44.5 mm, 1U height.
-Weight: 3765g.
Đặc tính kỹ thuật
| Copper Ports | 4 port 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports, shared with Port-1 to Port-4 |
| SFP/mini-GBIC Slots | 48 100/1000BASE-X SFP interfaces |
| Compatible with 100BASE-FX SFP transceiver | |
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 96Gbps |
| Throughput | 71. 2Mpps@64Bytes |
| Address Table | 16K entries, automatic source address learning and ageing |
| Shared Data Buffer | 16M bits |
| Flow Control | IEEE 802.3x pause frame for full-duplex |
| Back pressure for half-duplex | |
| Jumbo Frame | 10K bytes |
| Reset Button | < 5 sec: System reboot |
| > 5 sec: Factory default | |
| Dimensions | 440 x 300 x 44.5 mm, 1U height |
| Weight | 3765g |
| LED | System: |
| PWR (Green), SYS (Green), Fan 1 (Red), Fan 2 (Red) | |
| 10/100/1000T RJ45 Combo Interfaces (Port 1 to Port 4): | |
| 1000Mbps LNK/ACT (Green) | |
| 100Mbps LNK/ACT (Orange) | |
| 10Mbps LNK/ACT (OFF) | |
| 100/1000Mbps SFP Interfaces (Port 1 to Port 48) | |
| 1000Mbps LNK/ACT (Green) | |
| 100Mbps LNK/ACT (Orange) | |
| Power Requirements | 100~240VAC, 50/60Hz |
| Power Consumption | 45 watts / 153 BTU/hr (max.) |
| ESD Protection | 2KVDC |
| Layer 2 Management Functions | |
| Port Configuration | Port disable / enable |
| Auto-negotiation 10/100/1000Mbps full and half duplex mode selection | |
| Flow control disable / enable | |
| Port Status | Display each port’s speed duplex mode, link status, flow control status, auto-negotiation status, trunk status |
| Port Mirroring | TX / RX / Both |
| Many-to-1 monitor | |
| VLAN | 802.1Q tagged based VLAN |
| Q-in-Q tunneling | |
| Private VLAN Edge (PVE) | |
| MAC-based VLAN | |
| Protocol-based VLAN | |
| Voice VLAN | |
| IP Subnet-based VLAN | |
| MVR (Multicast VLAN Registration) | |
| Up to 255 VLAN groups, out of 4095 VLAN IDs | |
| Link Aggregation | IEEE 802.3ad LACP/ static trunk |
| 24 groups of 8-Port trunk supported | |
| Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol |
| RSTP, IEEE 802.1w Rapid Spanning Tree Protocol | |
| MSTP, IEEE 802.1s Multiple Spanning Tree Protocol | |
| QoS | Traffic classification based, Strict priority and WRR |
| 8-level priority for switching: | |
| - Port Number | |
| - 802.1p priority | |
| - 802.1Q VLAN tag | |
| - DSCP/ToS field in IP packet | |
| IGMP Snooping | IGMP (v1/ v2/ v3) Snooping, up to 255 multicast groups |
| IGMP Querier mode support | |
| MLD Snooping | MLD (v1/ v2) Snooping, up to 255 multicast groups |
| MLD Querier mode support | |
| Access Control List | IP-based ACL / MAC-based ACL |
| Up to 256 entries | |
| Bandwidth Control | Per port bandwidth control |
| Ingress: 100Kbps~1000Mbps | |
| Egress: 100Kbps~1000Mbps | |
| Layer 3 Functions | |
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 32 routing entries |
| Routing Protocols | IPv4 hardware static routing |
| IPv6 hardware static routing | |
| Management | |
| Basic Management Interfaces | Console / Telnet / Web browser / SNMP v1, v2c |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
| SNMP MIBs | RFC 1213 MIB-II |
| RFC 1493 Bridge MIB | |
| RFC 1643 Ethernet MIB | |
| RFC 2863 Interface MIB | |
| RFC 2665 Ether-Like MIB | |
| RFC 2819 RMON MIB (Group 1, 2, 3 and 9) | |
| RFC 2737 Entity MIB | |
| RFC 2618 RADIUS Client MIB | |
| RFC 2863 IF-MIB | |
| RFC 2933 IGMP-STD-MIB | |
| RFC 3411 SNMP-Frameworks-MIB | |
| RFC 4292 IP Forward MIB | |
| RFC 4293 IP MIB | |
| RFC 4836 MAU-MIB | |
| IEEE 802.1X PAE | |
| LLDP | |
| Standards Conformance | |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T |
| IEEE 802.3u 100BASE-TX/100BASE-FX | |
| IEEE 802.3z Gigabit SX/LX | |
| IEEE 802.3ab Gigabit 1000T | |
| IEEE 802.3x flow control and back pressure | |
| IEEE 802.3ad port trunk with LACP | |
| IEEE 802.1D Spanning Tree protocol | |
| IEEE 802.1w Rapid Spanning Tree protocol | |
| IEEE 802.1s Multiple Spanning Tree protocol | |
| IEEE 802.1p Class of service | |
| IEEE 802.1Q VLAN tagging | |
| IEEE 802.1X Port Authentication Network Control | |
| IEEE 802.1ab LLDP | |
| RFC 768 UDP | |
| RFC 793 TFTP | |
| RFC 791 IP | |
| RFC 792 ICMP | |
| RFC 2068 HTTP | |
| RFC 1112 IGMP version 1 | |
| RFC 2236 IGMP version 2 | |
| RFC 3376 IGMP version 3 | |
| RFC 2710 MLD version 1 | |
| FRC 3810 MLD version 2 | |
-Sản xuất tại Taiwan.
-Bảo hành: 12 tháng.
