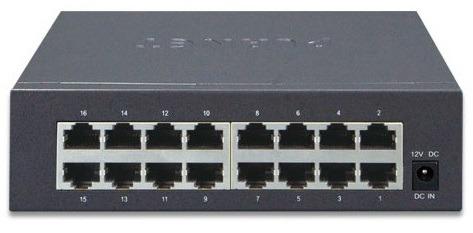

16-port 10/100/100Mbps Switch PLANET GSD-1603
PLANET GSD-1603 Gigabit Ethernet Switch provides 16 RJ45 10/100/1000Mbps ports for high-speed network connectivity. It can automatically identify and determine the suitable transmission speed and half/full duplex mode of the attached devices with its 16 Gigabit ports that support 9K jumbo frame feature. Therefore, the GSD-1603 can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.
Physical Port
-16 10/100/1000BASE-T Gigabit Ethernet ports.
-Supports auto MDI/MDI-X function Layer 2 Features.
-Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards.
-Features Store-and-Forward mode with wire-speed filtering and forwarding rates.
-Integrated address look-up engine, supporting 8K absolute MAC addresses
-9K jumbo packet support.
-IEEE 802.1Q VLAN packet transparent support.
-IEEE 802.3x flow control for full duplex operation and backpressure for half duplex operation.
-Hardware based 10/100BASE-TX, half/full duplex and 1000BASE-T full duplex mode, flow control and autonegotiation.
-Automatic address learning and address aging.
-Supports CSMA/CD protocol.
Hardware Features
-Made of metal, desktop size and wall-mount design.
-LED indicators for system power, per port Link/Act.
-12V DC, 1A external power adapter.
-FCC, CE Class B compliant.
Đặc tính kỹ thuật
| Hardware Specifications | |
| 10/100/1000BASE-T Ports | 16 auto MDI/MDIX RJ45 ports |
| LED Display | One for Power, one for Link/Act per port |
| Enclosure | Metal |
| Dimensions (W x D x H) | 155 x 118 x 46 mm |
| Weight (g) | 538g |
| Power Requirements(External power adapter) | 12VDC, 1A |
| Power Consumption | 10 watts/34 BTU |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 8K |
| Flow Control | Back pressure half duplex |
| IEEE 802.3x pause frame full duplex | |
| Switch Fabric | 32Gbps |
| Throughput(packet per second) | 23.8Mpps@64 bytes |
| Jumbo packet size | 9K |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 (Ethernet) |
| IEEE 802.3u (Fast Ethernet) | |
| IEEE 802.3ab (Gigabit Ethernet) | |
| IEEE 802.3x (Full-duplex Flow Control) | |
| IEEE 802.3az Energy Efficient Ethernet (EEE) | |
| Regulatory Compliance | FCC Part 15 Class B, CE |
| Environments | |
| Temperature | Operating: 0~50 degrees C |
| Storage: -10~70 degrees C | |
| Humidity | Operating: 5~95% |
| Storage: 5~95% (non-condensing) | |
-Sản xuất tại Taiwan.
-Bảo hành: 12 tháng.
