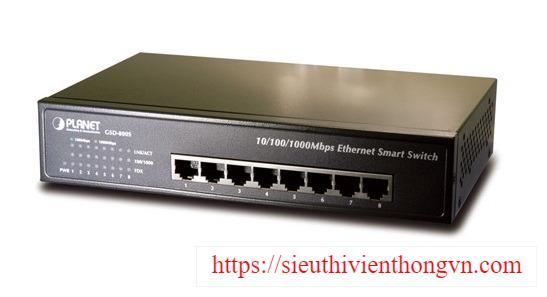

8-Port Smart 1000Base-T Copper Gigabit Ethernet Switch PLANET GSD-800S
- 8 cổng 10/100/1000Mbps Gigabit Ethernet.
- Tiêu chuẩn IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az.
- Các tính chất Store-and-Forward mode với các tốc độ dây và forwarding.
- Hỗ trợ 8K cho các địa chỉ MAC.
- Hỗ trợ 9K cho gói Jumbo.
- Hỗ trợ chức năng Auto-MDI/MDI-X.
- Hỗ trợ giao thức CSMA/CD.
- Thiết kế theo chuẩn A: FCC, CE.
Generic Features
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab, 1000Base-T standard
- 8 10 / 100 / 1000Mbps Gigabit Ethernet ports
- Each switching port supports auto-negotiation-10 / 20, 100 / 200 and 1000 / 2000Mbps supported
- Auto-MDI / MDI-X detection on each RJ45 port supports CSMA / CD protocol
- Prevents packet loss with back pressure (half-duplex) and 802.3x pause frame flow control (full-duplex)
- 8K MAC address table, automatic source address learning and ageing
- 16Gbps switch fabric, non-blocking switch architecture
- 9K Jumbo Frame supports at all speed (10 / 100 / 1000Mbps)
Layer 2 Switching
- Supports Port-based and 802.1Q VLAN function, up to 64 VLAN groups
- IEEE 802.1w Rapid-Spanning Tree protocol support
- Link Aggregation supports static mode and LACP (IEEE 802.3ad) - up to 4 Trunk groups Each trunk is maximum up to 8 ports
Multicast
- IGMP Snooping for multicast filtering, supports v1 and v2
- IGMP Query Mode supports for multimedia application
Quality of Service
- 4 QoS classes per port
- Traffic class assignment based on 802.1p tag, or DSCP field
- Multicast and Broadcast Storm Control as well as Flooding Control
Security
- Port Mirroring support for dedicated port monitoring
- EEE 802.1X Port-based access control, RADIUS ServerAuthentication
- Static MAC Address assigns destination MAC address at specified port
Management
- Remote Web management interface
- Firmware upgrade through web interface
- Cable Diagnostics technology
- Supports SNMPv1 with RFC-1213 / 1573-Interface group and RMON Group 1 ( Statistics)
- SNMP Trap
- Supports PLANET Smart-DISCOVERY Utility for deploy management
Đặc tính kỹ thuật
Hardware Specification | |
Copper Ports | 8 10/ 100/1000Base-T RJ45 Auto-MDI/MDI-X ports |
SFP/mini-GBIC Slots | N/A |
Switch Architecture | Store-and-forward |
Switch Fabric | 16Gbps / non-blocking |
Switch Throughput | 11.9Mpps |
Address Table | 8K MAC address table with auto learning function |
Share Data Buffer | 176K bytes on chip |
Flow Control | Back pressure for half-duplex |
IEEE 802.3x Pause Frame for full duplex | |
Jumbo Frame | 9K Bytes |
Power Requirements | 100 - 240VAC, 50 - 60Hz, auto-sensing |
Power Consumption | 8.7 watts / 27.31 BTU |
Layer 2 Functions | Management Interface Web Browser, SNMPv1, v2c monitor and SNMP Trap |
Port Configuration | |
Port disable/enable | |
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection | |
Flow control disable / enable | |
Standards Compliance | IEEE 802.3 (Ethernet) |
IEEE 802.3u (Fast Ethernet) | |
IEEE 802.3ab (Gigabit Ethernet) | |
IEEE 802.3x (Full Duplex Flow Control) | |
IEEE 802.3az Energy Efficient Ethernet (EEE) | |
Regulation Compliance | FCC Part 15 Class A, CE |
Dimensions | 217 x 135 x 43.5 mm |
Weight | 1.1kg |
- Sản suất tại Taiwan.
- Bảo hành: 12 tháng.
