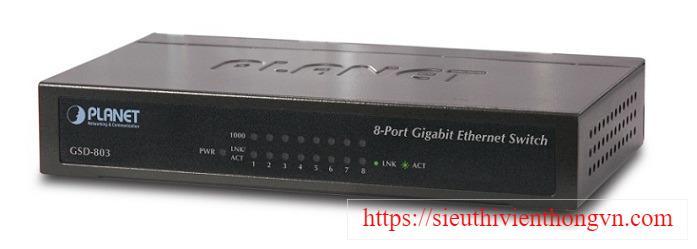

8 Port 10/100/1000Mbps Gigabit Ethernet Switch PLANET GSD-803
- 8 cổng 10/100/1000Mbps Gigabit Ethernet.
- Tiêu chuẩn IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.
- Các tính chất Store-and-Forward mode với các tốc độ dây và forwarding.
- Hỗ trợ 8K cho các địa chỉ MAC.
- Hỗ trợ 9K cho gói Jumbo.
- Hỗ trợ chức năng Auto-MDI/MDI-X.
- Hỗ trợ giao thức CSMA/CD.
- Thiết kế theo chuẩn B: FCC, CE.
RJ45 Interface
- 8 10/100/1000Mbps Gigabit Ethernet ports.
- Complies with IEEE 802.3, 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T.
- Supports auto MDI/MDI-X function.
Switching
- Hardware based 10/100Mbps, half / full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation.
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates.
- IEEE 802.3x flow control for full duplex operation and back pressure for half duplex operation.
- Integrated address look-up engine, supporting 8K absolute MAC addresses.
- 9K Jumbo packet size.
- Power saving ability for Green networking.
- Automatic address learning and address aging.
- Supports CSMA/CD protocol.
Hardware
- Made of metal, desktop size and wall-mount design.
- LED indicators for system power, per port 1000 & Link / Act.
- 5V DC, 1A external power adapter.
- FCC, CE Class B compliant.
Đặc tính kỹ thuật
Hardware Specification | |
Hardware Version | 6 |
10/100/1000Base-T Ports | 8 auto MDI/MDIX ports |
LED Display | One for Power, Two for 1000 & Link / Act per port |
Switch Specification | |
Switch Processing Scheme | Store-and-Forward |
Address Table | 8K entries |
Flow Control | Back pressure half duplex |
IEEE 802.3x pause frame full duplex | |
Switch fabric | 16Gbps |
Throughput (packet per second) | 11.9Mpps |
Jumbo packet size | 9K |
Standards Conformance | |
Standards Compliance | IEEE 802.3 (Ethernet) |
IEEE 802.3u (Fast Ethernet) | |
IEEE 802.3ab (Gigabit Ethernet) | |
IEEE 802.3x (Full-duplex Flow Control) | |
IEEE 802.3az Energy Efficient Ethernet (EEE) | |
Regulation Compliance | FCC Part 15 Class B, CE |
Power Requirements (External power adapter) | 5VDC, 1A |
Power Consumption (100M Full Operation) | 4.9 watts / 16 BTU |
Enclosure | Metal |
Dimensions | 155 x 86 x 26 mm |
Weight | 348g |
- Sản suất tại Taiwan.
- Bảo hành: 12 tháng.
