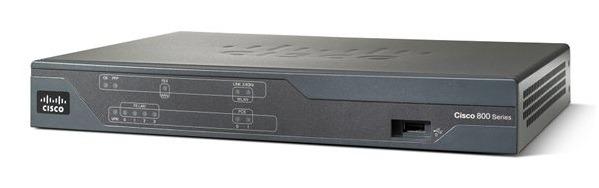

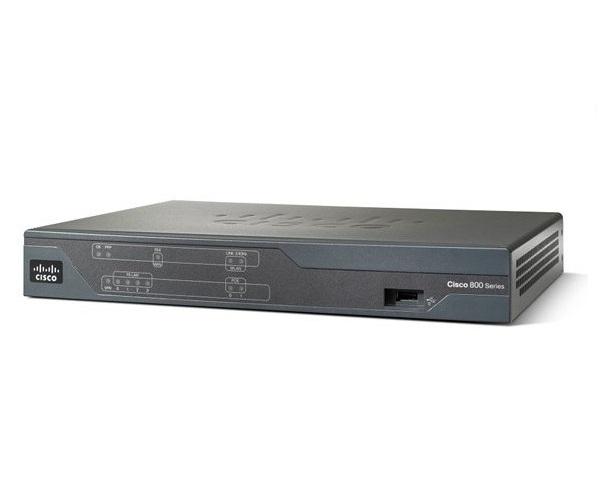

G.SHDSL Security Router CISCO 888-SEC-K9
- Combine internet access via G.SHDSL, security, and wireless services onto a single, secure device. The Cisco 888 Integrated services router offers broadband speeds and simplified management to small businesses, enterprise small branches, and teleworkers.
- Survivable remote site telephony
- Built-in advanced security, including intrusion prevention, GET VPN, and dynamic multipoint VPN (DMVPN)
- Up to 20 VPN tunnels
- Cisco configuration professional for simplified management
- WAN connection with multiple access options
- Business continuity with primary and backup connections on the Cisco 880 router, including third-generation wireless and ISDN
Đặc tính kỹ thuật
Manufacturer | Cisco Systems, Inc |
Manufacturer Part Number | CISCO888 - SEC - K9 |
Product Type | Router - 4 - port switch (integrated) |
Form Factor | Desktop |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, fast ethernet |
Capacity | IPSec VPN tunnels: 20 |
Network / Transport Protocol | L2TP, IPSec, PPPoE, PPPoA |
Routing Protocol | OSPF, RIP-1, RIP-2, BGP, EIGRP, HSRP, VRRP, NHRP, GRE |
Remote Management Protocol | Telnet, SNMP 3, HTTP, HTTPS |
Encryption Algorithm | DES, Triple DES, SSL, PKI, 128-bit AES, 192-bit AES, 256-bit AES |
Authentication Method | RADIUS, TACACS+ |
Features | NAT support, interrupt status port (ISP), VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, stateful Packet Inspection (SPI), content filtering, MAC address filtering, IPv6 support, stateful failover, class-Based weighted fair queuing (CBWFQ), weighted fair queuing (WFQ), access control list (ACL) support, quality of service (QoS), Dynamic multipoint VPN (DMVPN), DHCP server, virtual route forwarding-lite (VRF-Lite), DNS proxy |
Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x |
DRAM Memory | 256 MB (installed) / 768 MB (max) - DDR2 SDRAM - SO DIMM 200-pin |
Flash Memory | 128 MB |
LED Status Lights Indicators | Port status, power |
Communications | |
Type | DSL modem |
Protocols & Specifications | ITU G.991.2 (G.shdsl) |
Connectivity Slots | |
Router Interfaces | LAN: 4 x 10Base-T/100Base-TX - RJ-45 |
Management: 1 x console - RJ-45 | |
WAN: 1 x SHDSL | |
USB: 1 x 4 PIN USB Type A | |
WAN: 1 x BRI ST - RJ-45 | |
Expansion Slots Total (Free) | 1 x ExpressCard |
1 x memory - SO DIMM 200-pin | |
Power Supply | |
Voltage Required | 120/ 230 VAC ( 50/60 Hz ) |
Dimensions | 32.5 x 24.9 x 4.4cm |
– Bảo hành: 12 tháng
