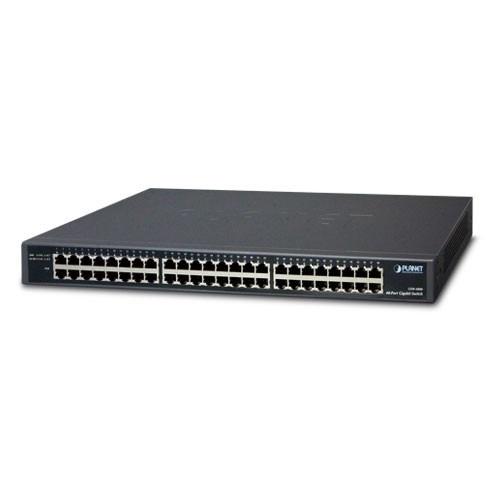

48-Port 10/100/1000BASE-T Gigabit Ethernet Switch PLANNET GSW-4800
- 48 cổng 10/100/1000BASE-T Gigabit Ethernet.
- Tiêu chuẩn IEEE 802.3, IEEE 802.3u, IEEE 802.3ab.
- Các tính chất Store-and-Forward mode với các tốc độ dây và forwarding.
- Hỗ trợ 16K cho các địa chỉ MAC.
- Hỗ trợ 10K cho gói Jumbo.
- Hỗ trợ chức năng Auto-MDI/MDI-X.
- Hỗ trợ giao thức CSMA/CD.
- Thiết kế theo chuẩn A: FCC, CE.
Physical Port
- 48 10/100/1000BASE-T Gigabit Ethernet ports.
- Supports auto MDI/MDI-X function.
Layer 2 Features
- Complies with IEEE 802.3, 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T Ethernet standards.
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates.
- Integrated address look-up engine, supporting 16K absolute MAC addresses
- 10K jumbo packet support.
- IEEE 802.1Q VLAN packet transparency support.
- Hardware based 10/100BASE-TX, half/full duplex and 1000BASE-T full duplex mode; auto-negotiation.
- Automatic address learning and address aging.
- Supports CSMA/CD Protocol.
Hardware Features
- 19-inch size, 1U height.
- 100 ~ 240V AC, 1.0A, 50 ~ 60Hz universal power input.
- FCC, CE Class A compliant.
- Fanless design.
Đặc tính kỹ thuật
Hardware Specifications | |
Interfaces | 48 10/100/1000BASE-T MDI/MDI-X Ports |
Switch Architecture | Store-and-Forward |
Switch Fabric | 96Gbps |
Throughput (packet per second) @ 64bytes | 71.4Mpps |
MAC Address Table | 16K entries |
Jumbo Packet Size | 10K |
LED | System: Power (Green) |
10/100/1000T RJ45 Interfaces | |
1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange) | |
Standards Conformance | |
Regulatory Compliance | FCC Part 15 Class A, CE |
Standards Compliance | IEEE 802.3 (Ethernet) |
IEEE 802.3u (Fast Ethernet) | |
IEEE 802.3ab (Gigabit Ethernet) | |
Power Requirements | 100 ~ 240V AC, 50-60Hz, 1A |
Power Consumption/ Dissipation | 31.7 watts/108 BTU |
Enclosure | Metal |
Dimensions | 440 x 220 x 44 mm, 1U height |
Weight | 3.4kg |
- Sản suất tại Taiwan.
- Bảo hành: 12 tháng.
