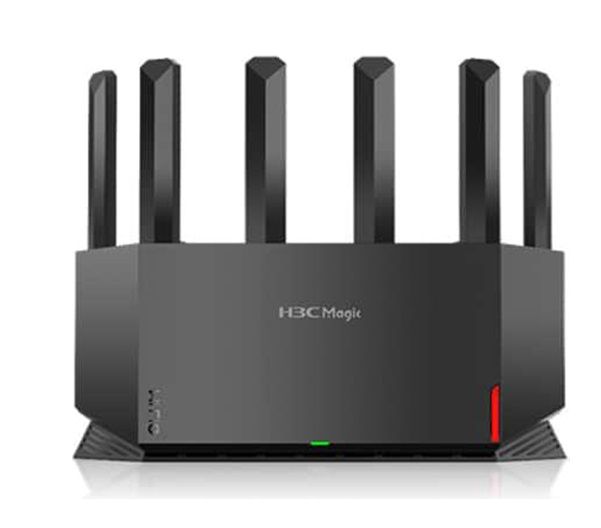

Dual-band Gigabit Wi-Fi 6 Router H3C Magic NX54
- Anten ngoài đa hướng 6x5dBi thẳng +20% độ phủ.
- Hỗ trợ 4 cổng 10/100/1000Base-T Ethernet.
- CPU: Dual-core 1.0GHz.
- Tốc độ: 574Mbps (2.4GHz) và 4804Mbps (5GHz).
- Kích thước (W × D × H): 286 x 87 x 234 mm.
Đặc tính kỹ thuật
| Hardware | |
| Fixed port | Four 10/100/1000Base-T Ethernet ports Independent reset key, function keys (Mesh, wireless optimization) |
| Wireless | 6 external high gain omnidirectional antennas (2.4 GHz & 5 GHz 5dBi) |
| CPU | Dual-core 1.0 GHz |
| Indicator | Front LED: system status indicator Rear LED: 1 WAN port status indicator |
| Dimensions (W×D×H) | 286mm x 87mm x 234mm |
| Power supply | 12V-2A |
| Cooling method | Natural cooling |
| Wireless | |
| Wireless protocol | 2.4 GHz: 802.11ax/n/g/b 5 GHz: 802.11ax/ac/n/a |
| Spatial flow | 2.4 GHz 2x2 MIMO 5 GHz 4x4 MIMO |
| Wireless bandwidth | 2.4G HT20/HT40 5G HT20/HT40/HT80/HT160 |
| Wireless rate | Dual-frequency concurrency 5,378 Mbps 2.4 GHz: 574 Mbps & 5 GHz: 4,804 Mbps |
| Wireless roaming | Support IEEE 802.11k/v |
| MU-MIMO | Upstream and downstream MU-MIMO |
| Software | |
| Internet connection | Routing mode: DHCP/PPPoE/Static IP Bridge mode: wired relay/wireless relay |
| EasyMesh | Support |
| IPv6 | Support |
| Security features | WPA3 encryption Anti-Wi-Fi squatting/anti-attack Firewall, DMZ, DoS attacks |
| Network management | Guest Wi-Fi, access allowlist/denylist, parental controls based on multiple periods, IP-based traffic control, Wi-Fi timing switch |
| Features | Qos traffic shaping, broadband password retrieval, packet fast-forwarding engine, virtual server, DDNS(NoIP, DynDNS), VPN(PPTP Client,L2TP Client) |
| Management method | Support for H3C Magic APP (iOS, Android), Web |
| Fault diagnosis | Link detection Internet diagnosis |
| Operating environment | |
| Operating temperature | 0°C–40°C |
| Storage humidity | 10%–90%, RH non-condensing |
- Bảo hành: 24 tháng.
