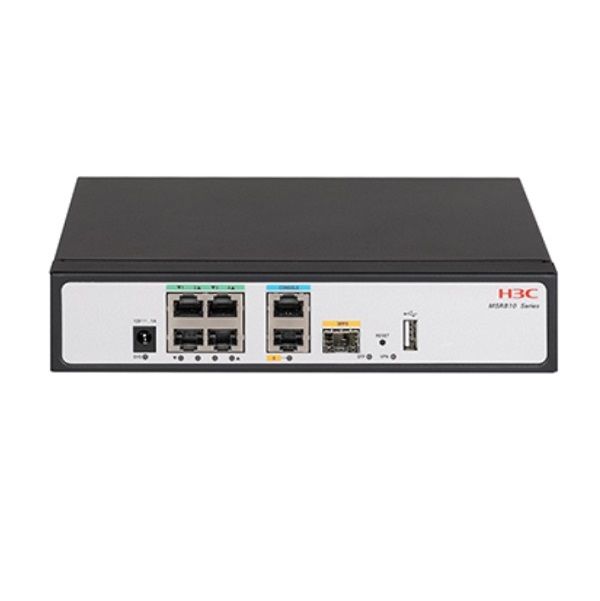

Router H3C RT-MSR610

H3C RT-MSR610

  • MS 0016153
  • H3C
Giá : Liên hệ

Router H3C RT-MSR610

Router H3C RT-MSR610

- Support 1 USB port; 1 console port; WAN: 1 × GE copper port, 1 × SFP port; 4 x GE LAN port.

- Forwarding Performance In Service (IMIX): 200Mbps.

- CPU: 800MHz.

- Memory: 1GB.

- Internal Flash: 256MB.

Specification

Hardware specifications
Forwarding Performance In Service (IMIX)200Mbps
CPU800MHz
Memory1GB
Internal Flash256 MB
USB ports1
Console ports1
WAN ports1 × GE copper port
1 × SFP port
LAN port4 × GE ports (can be configured as WAN interfaces)
Max power consumption24W
Power voltage (adapter)External power adapter: 100 VAC to 240 VAC @ 50 Hz/60 Hz
Power voltage (device)DC 12V 2A
Dimensions (W × D × H)210 x 140 x 44 mm
Operating temperature0°C to 40°C (32°F to 104°F)
Operating humidity5% RH to 95% RH, non-condensing
EMCFCC Part 15 (CFR 47) CLASS A

ICES-003 CLASS A

VCCI-3 CLASS A

VCCI-4 CLASS A

CISPR 22 CLASS A

EN 55022 CLASS A

AS/NZS CISPR22 CLASS A
CISPR 24
EN 55024
EN 61000-3-2
EN 61000-3-3
EN 61000-6-1
ETSI EN 300 386
EN 301 489-1
EN 301 489-17
SafetyUL 60950-1
CAN/CSA C22.2 No 60950-1
IEC 60950-1
EN 60950-1/A11
AS/NZS 60950
EN 60825-1
EN 60825-2
FDA 21 CFR Subchapter J
GB 4943
Software specifications
Layer 2 switchingEthernet, Ethernet II, VLAN (port-based VLAN, guest VLAN), 802.3x, 802.1p, 802.1Q, 802.1X, STP (802.1D), RSTP (802.1w), MSTP (802.1s), PPP, PPPoE client, PPPoE server, and DDR
IP servicesUnicast/multicast, TCP, UDP, IP option, IP unnumbered, policy-based routing, NetStream, and sFlow
IP applicationPing, Tracert, ICMP, DHCP server, DHCP relay, DHCP client, DNS client, DNS proxy, DDNS, NTP, and SNTP
IPv4 routingStatic routing
Dynamic routing: RIPv1/v2, OSPFv2, BGP, IS-IS
Route iteration
Policy routing
Equal-cost multi-path routing (ECMP)
Multicast routing: IGMPv1/v2/v3, PIM-DM, PIM-SM, MBGP, MSDP
QoSLR, port-based mirroring, Port Trust Mode, and port priority
Committed access rate (CAR)
FIFO, WFQ, CBQ
Generic Traffic Shaping (GTS)
Traffic classification
SecurityPPPoE client & server, portal, 802.1X
Local authentication, RBAC, RADIUS, TACACS+
Basic Firewall Function, ASPF, ACL, filter, connection limit
IKE, IPsec
L2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0, URPF, mGRE, GRE
ARP attack prevention
SSL VPN, GDVPN
AES, DES, 3DES, MD5, SHA1
High availabilityVRRP, VRRPv3
Bandwidth-based load balancing and backup
IP address-based load balancing and backup
NQA collaboration with routing, VRRP or interface backup
Management and maintenanceCouldnet APP management
SNMP v1/v2c/v3, MIB, SYSLOG, RMON
BiMS remote management, booting from USB drive
CLI, file system, and dual image
DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private, and SNMP
Console port login, Telnet (VTY) login, SSH login, and FTP login

- Bảo hành: 60 tháng.
