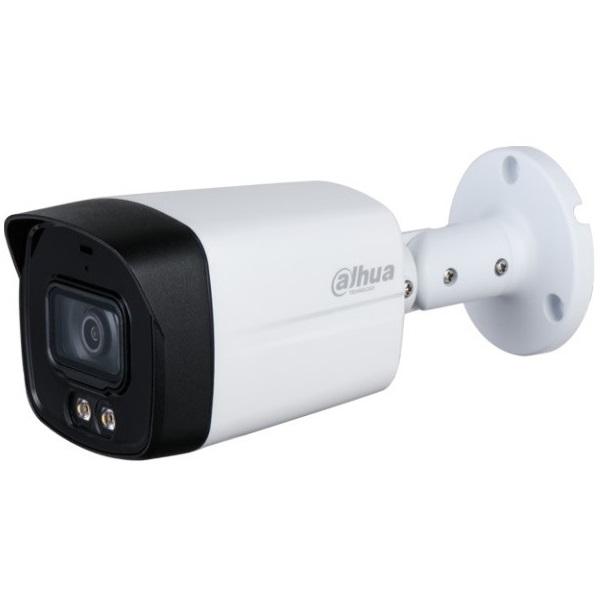

Camera HDCVI 2.0 Megapixel DAHUA HAC-HFW1239TLMP-LED
- Cảm biến hình ảnh: 1/2.8inch CMOS.
- Độ phân giải Camera: 2.0 Megapixel.
- Tích hợp đèn LED trợ sáng với khoảng cách 40m.
- Hỗ trợ công nghệ full-color Starligh với độ nhạy sáng 0.005Lux/F1.6 cho hình ảnh có màu trong môi trường ánh sáng cực thấp.
- Hỗ trợ chức năng chống ngược sáng thực WDR 120dB, chống nhiễu (3DNR).
Đặc tính kỹ thuật
| Camera | |
| Image Sensor | 1/2.8 inch 2.16 Mega Pixels CMOS |
| Effective Pixels | 1920 (H)×1080 (V), 2MP |
| Electronic Shutter Speed | PAL:1/25s–1/100000s NTSC:1/30s–1/100000s |
| Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux white Light on |
| Fill Light (White Light) Distance | Distance up to 40m (131.23ft) |
| Fill Light On/Off Control | Auto; Manual |
| Fill Light Number | 2 |
| Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–180° Rotation: 0°–360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 3.6mm |
| Max. Aperture | F1.6 |
| Angle of View | 103.6°x86.9°x46.3° (diagonalxhorizontalxvertical) |
| Iris Type | Fixed iris |
| Close Focus Distance | 1.2m (3.94ft) |
| DORI Distance | Detect: 55.2m (181.1ft) Observe: 22.1m (72.5ft) Recognize: 11.0m (36.0ft) Identify: 5.5m (18.0ft) |
| Video | |
| Video Frame Rate | CVI: - PAL: 1080@25fps, 720@25fps, 720@50fps; - NTSC: 1080@30fps, 720@30fps, 720@60fps AHD: - PAL: 1080@25fps,720@25fps; - NTSC: 1080@30fps,720@30fps TVI: - PAL: 1080@25fps,720@25fps,720@50fps; - NTSC: 1080@30fps,720@30fps,720@60fps CVBS: - PAL: 960×576H; - NTSC: 960×480H |
| Resolution | 1080P (1920×1080); 720P (1280×720); 960H (704× 576/704×480) |
| BLC | BLC/HLC/WDR |
| WDR | DWDR |
| White Balance | Auto; Manual |
| Gain Control | Auto; Manual |
| Noise Reduction | 2D NR |
| Smart Light | Yes |
| Electronic Defog | Yes |
| Digital Zoom | 16X |
| Mirror | Off/On |
| Privacy Masking | Off/On (4 area, rectangle) |
| Port | |
| Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power | |
| Power Supply | 12V ±30% DC |
| Power Consumption | Max 5W (12V DC, white light on) |
| Environment | |
| Operating Temperature | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
| Storage Temperature | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
| Protection Grade | IP67 |
| Structure | |
| Casing | Metal front cover+plastic main body+metal bracket |
| Dimensions | 198.4mm×80.2mm×76.2mm (7.81'×3.16'×3.00') |
| Net Weight | 0.3Kg(0.66lb) |
| Gross Weight | 0.45Kg(0.99lb) |
- Sản xuất tại Trung Quốc.
- Bảo hành: 24 tháng.
