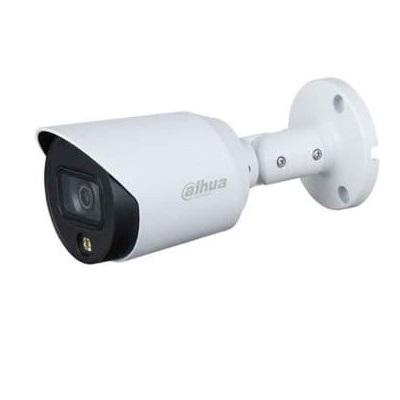

Camera HDCVI 2.0 Megapixel DAHUA HAC-HFW1239TP-A-LED
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải Camera: 2.0 Megapixel.
- Tích hợp đèn LED trợ sáng với khoảng cách 20 mét.
- Tích hợp Mic ghi âm.
- Hỗ trợ công nghệ full-color Starligh với độ nhạy sáng 0.005Lux/F1.6 cho hình ảnh có màu trong môi trường ánh sáng cực thấp.
- Hỗ trợ chức năng chống ngược sáng thực WDR 120dB, chống nhiễu (3DNR).
Đặc tính kỹ thuật
Camera | |
Image Sensor | 1/2.8 inch 2.16 Mega Pixels CMOS |
Effective Pixels | 1920 (H)×1080 (V), 2MP |
Electronic Shutter Speed | PAL:1/25s–1/100000s NTSC:1/30s–1/100000s |
Minimum Illumination | 0.005Lux/F1.6, 30IRE, 0Lux white Light on |
Fill Light (White Light) Distance | Distance up to 20m (65.61ft) |
Fill Light On/Off Control | Auto; Manual |
Fill Light Number | 1 |
Pan/Tilt/Rotation Range | Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
Lens | |
Lens Type | Fixed-focal |
Mount Type | M12 |
Focal Length | 3.6mm |
Max. Aperture | F1.6 |
Angle of View | 103.6°×86.9°×46.3° (diagonal×horizontal×vertical) |
Iris Type | Fixed iris |
Close Focus Distance | 1.2m (3.94ft) |
DORI Distance | Detect: 55.2m (181.1ft) Observe: 22.1m (72.5ft) Recognize: 11.0m (36.0ft) Identify: 5.5m (18.0ft) |
Video | |
Video Frame Rate | CVI: - PAL: 1080@25fps, 720@25fps, 720@50fps; - NTSC: 1080@30fps, 720@30fps, 720@60fps AHD: - PAL: 1080@25fps,720@25fps; - NTSC: 1080@30fps,720@30fps TVI: - PAL: 1080@25fps,720@25fps,720@50fps; - NTSC: 1080@30fps,720@30fps,720@60fps CVBS: - PAL: 960×576H; - NTSC: 960×480H |
Resolution | 1080P (1920×1080); 720P (1280×720); 960H (704× 576/704×480) |
BLC | BLC/HLC/WDR |
WDR | DWDR |
White Balance | Auto; Manual |
Gain Control | Auto; Manual |
Noise Reduction | 2D NR |
Smart Light | Yes |
Electronic Defog | Yes |
Digital Zoom | 16X |
Mirror | Off/On |
Privacy Masking | Off/On (4 area, rectangle) |
Interface | |
Audio Port | Built-in mic (-A) |
Port | |
Video Port | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
Power | |
Power Supply | 12V ±30% DC |
Power Consumption | Max 3W (12V DC, white light on) |
Environment | |
Operating Temperature | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
Storage Temperature | -40°C to +60°C (-40°F to 140°F); <95% (non-condensation) |
Protection Grade | IP67 |
Structure | |
Casing | IMetal throughout the whole casing |
Dimensions | 174.5mm×70.6mm×72.3mm (6.87'×2.78'×2.85') |
Net Weight | 0.34Kg(0.75lb) |
Gross Weight | 0.45Kg(0.99lb) |
- Sản xuất tại Trung Quốc.
- Bảo hành: 24 tháng.
