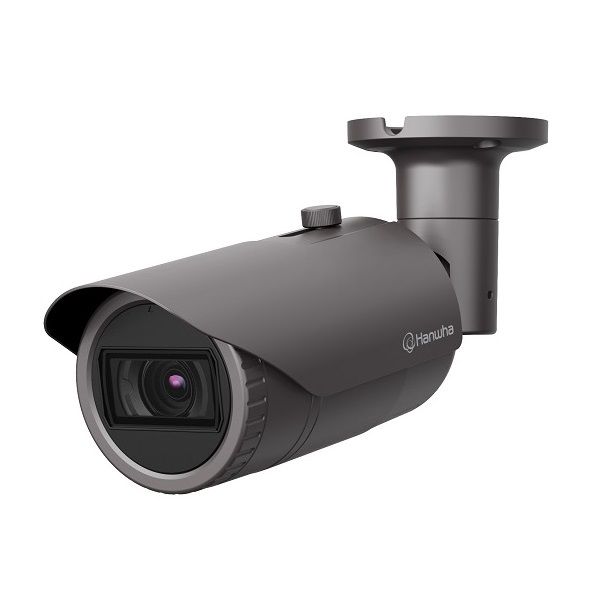

Camera IP hồng ngoại 2.0 Megapixel Hanwha Vision QNO-6082R1
- Độ phân giải: 2.0 Megapixel (1920 x 1080).
- Độ nhạy sáng: 0.03Lux (Color), 0Lux (B/W, IR LED on).
- Ống kính: 3.2 ~ 10mm (3.1x) motorized varifocal lens.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Tầm quan sát hồng ngoại: 30 mét.
- Hỗ trợ chức năng Motion detection, Tampering, Defocus detection.
- Hỗ trợ khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng 128GB.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Hỗ trợ cấp nguồn qua mạng PoE.
- Nguồn điện: 12VDC.
- Non-audio model.
Đặc tính kỹ thuật
| Model | QNO-6082R1 |
| Video | |
| Imaging Device | 1/2.8 inch 2MP CMOS |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Max. Frame rate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.03Lux (F1.6, 1/30sec) BW: 0Lux (IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm (3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6(Wide) ~ F2.9(Tele) |
| Angular Field of View | H: 109.0°(Wide) ~ 33.2°(Tele) / V: 57.4°(Wide) ~ 18.7°(Tele) / D: 132.0°(Wide) ~ 38.0°(Tele) |
| Min. Object Distance | 0.5m |
| Focus Control | Simple focus |
| Lens Type | DC auto iris |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| IR Viewable Length | 30m (98.42ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | WiseStream Ⅱ |
| Streaming | Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI (HTTP API) Wisenet open platform |
| General | |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Protection | IP66, IK10 |
| Input Voltage | PoE (IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.40W, typical 5.40W 12VDC: Max 6.50W, typical 4.80W |
| Color / Material | Dark grey / Aluminum |
| Dimensions | Ø78.0x259.8mm |
| Weight | 900g |
- Bảo hành: 24 tháng.
