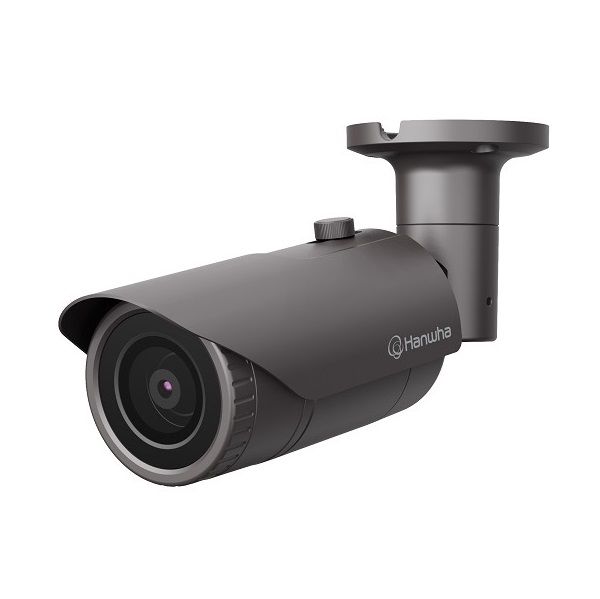

Camera IP hồng ngoại 4.0 Megapixel Hanwha Vision QNO-7022R
- Cảm biến hình ảnh: 1/3 inch CMOS.
- Độ phân giải: 4.0 Megapixel.
- Độ nhạy sáng: Color: 0.15Lux (F1.6, 1/30sec), B/W: 0Lux (IR LED On).
- Ống kính: 4.0mm.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Tầm quan sát hồng ngoại: 25 mét.
- Hỗ trợ chức năng Motion detection, Tampering, Defocus detection.
- Hỗ trợ khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng 128GB.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: 12VDC/PoE.
Đặc tính kỹ thuật
| Model | QNO-7022R |
| Video | |
| Imaging Device | 1/3 inch CMOS |
| Resolution | 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Frame rate | H.265/H.264: Max. 30fps at 4M all resolutions, MJPEG: Max. 15fps |
| Min. Illumination | Color: 0.15Lux (F1.6, 1/30sec) B/W: 0Lux (IR LED On) |
| Video Out | CVBS: 1.0 Vpp/75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H: 78.2˚, V: 41.2˚, D: 92.0˚ |
| Focus Control | Fixed |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover |
| Audio In | Selectable (mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| IR Viewable Length | 25m (82.02ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Audio Compression | G.711 u-law / G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz, G.726 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | Manual (5ea area), WiseStream II |
| Streaming | Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| General | |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Operating Temperature / Humidity | -40˚C~+55˚C (-40˚F~+131˚F) / Less than 95% RH |
| Storage Temperature / Humidity | -40˚C~+60˚C (-40˚F~+140˚F) / Less than 95% RH |
| Certification | IP66, IK10 |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 10.7W, typical 8W 12VDC: Max 9.1W, typical 6.8W |
| Color / Material | Dark grey / Aluminum |
| Dimensions | Ø70.0 x 246.0mm |
| Weight | 700g |
- Bảo hành: 24 tháng.
