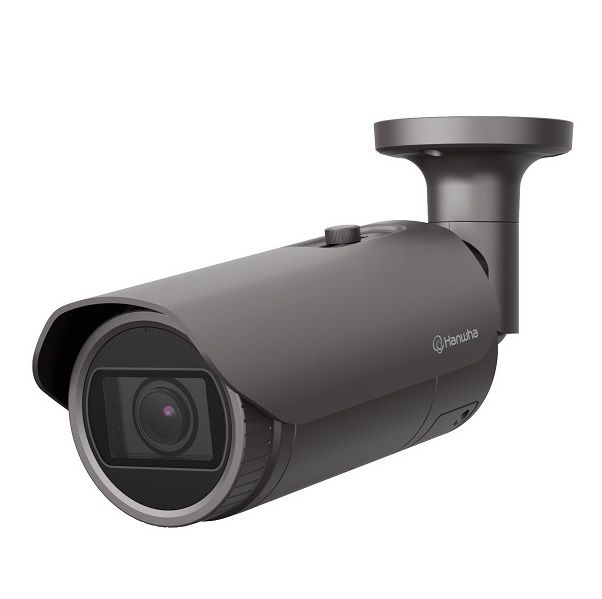

Camera IP hồng ngoại 5.0 Megapixel Hanwha Vision QNO-8080R
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải camera ip: 5 Megapixel (2592 x 1944).
- Hỗ trợ khe cắm bộ nhớ Micro SD/ SDHC/ SDXC (tối đa 128GB).
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Độ nhạy sáng: 0.15Lux (Color), 0Lux (B/W, IR LED on).
- Ống kính varifocal có động cơ: 3.2 ~ 10 mm (3.1x).
- Tầm quan sát hồng ngoại: 30 mét.
- Hỗ trợ chức năng Ngày & Đêm, chống ngược sáng WDR (120dB).
- Chức năng đặc biệt: Giả mạo, phát hiện chuyển động, phát hiện lệch tâm.
- Chế độ xem hành lang, hỗ trợ WiseStream II.
- Tiêu chuẩn chống bụi và nước: IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Chức năng cấp nguồn qua mạng PoE.
- Mobile Monitoring via Wisenet.
- Dễ dàng giám sát qua điện thoại di động, iPad, iPhone…
- Phần mềm giám sát và tên miền miễn phí…
Đặc tính kỹ thuật
| Model | QNO-8080R |
| Video | |
| Imaging Device | 1/2.8 inch 5MP CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| Min. Illumination | Color: 0.15Lux (F1.6, 1/30sec), BW: 0Lux(IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480 (N), 720x576( P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm (3.1x) motorized varifocal |
| Max. Aperture Ratio | F1.6 (Wide) ~ F2.9 (Tele) |
| Angular Field of View | H: 100.3° (Wide) ~ 31.2° (Tele) |
| V: 72.3° (Wide) ~ 23.5° (Tele) | |
| D: 133.1° (Wide) ~ 38.8° (Tele) | |
| Focus Control | Simple focus |
| PAN / TILT / ROTATE | |
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~67˚ / 0˚~355˚ |
| Operational | |
| IR Viewable Length | 30m |
| Camera Title | Displayed up to 85 characters, , 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover |
| Network | |
| Ethernet | RJ-45 (10/ 100 BASE-T) |
| Video Compression Format | H.265/H.264: Main/High, MJPEG |
| Resolution | 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Maximum Framerate | H.265/H.264: Maximum 30fps / MJPEG: Maximum 15fps |
| Smart Codec | Manual (5ea area), WiseStream II |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control / MJPEG: Quality level control |
| Bitrate Control | H.264/H.265 : CBR or VBR / MJPEG: VBR |
| Streaming | Unicast (6 users) / Multicast / Multiple streaming (Up to 3 profiles |
| Smart Codec | Manual (5ea area), WiseStream II |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3 (MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Application Programming Interface | ONVIF Profile S/G/T |
| SUNAPI (HTTP API) | |
| Wisenet open platform | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, MacOS X 10.10, 10.11, 10.12, 10.13, 10.14 |
| Recommended Browser:Google Chrome | |
| Supported Browser: MS Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari(Mac OS X only) | |
| Memory | 512MB RAM, 256MB Flash |
| General | |
| Input Voltage/ Current | PoE (IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 9.5W, typical 7.3W |
| Certification | IP66, IK10 |
| Dimension | Ø91 x 322.9 mm |
| Weight | 1190g |
- Bảo hành: 24 tháng.
