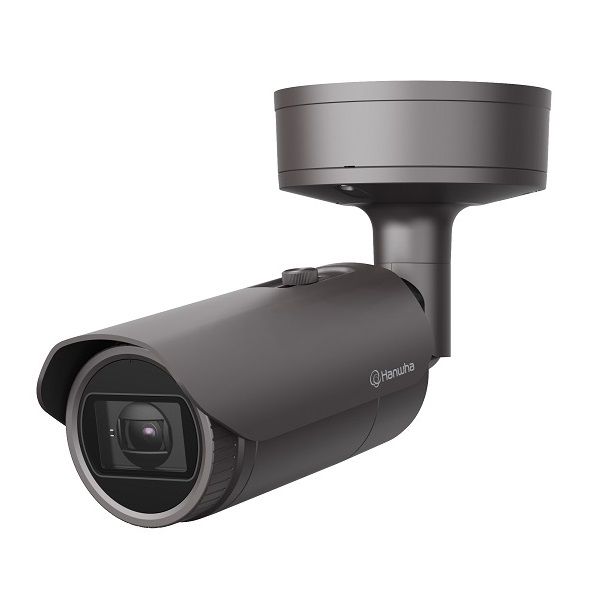

Camera IP hồng ngoại 2.0 Megapixel Hanwha Vision XNO-6120R
- Cảm biến hình ảnh: 1/2.8 inch CMOS.
- Độ phân giải: 2.0 Megapixel.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Độ nhạy sáng: Color: 0.03Lux(F1.6, 1/30sec), BW: 0Lux(IR LED On).
- Hỗ trợ 2 khe cắm thẻ nhớ Micro SD/SDHC/SDXC dung lượng lên đến 512GB.
- Ống kính: 5.2 ~ 62.4mm.
- Zoom quang: 12x.
- Góc quan sát theo chiều ngang: 54.58º (Wide) ~ 5.30º (Tele), theo chiều dọc: 32.19º (Wide) ~ 3.00º (Tele) / theo phương chéo: 61.40º (Wide) ~ 6.06º (Tele).
- Tầm quan sát hồng ngoại: 70 mét.
- Chức năng camera quan sát Ngày và Đêm (ICR).
- Chức năng giảm nhiễu số SSNRV (2D + 3D).
- Chức năng ổn định hình ảnh số.
- Chức năng chống sương mù Defog.
- Chức năng chống ngược sáng WDR (150dB).
- Hỗ trợ LDC (Lens Distortion Correction).
- Số người truy cập đồng thời là: 20 người.
- Tiêu chuẩn chống thấm nước và bụi: IP67/IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống thấm nước: IK10.
- Chức năng cấp nguồn qua mạng PoE (PoE(IEEE802.3af, Class3).
Thông số kỹ thuật
| Video | |
| Imaging Device | 1/2.8 inch 2MP CMOS |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.03Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 5.2~62.4mm(12x) zoom |
| Max. Aperture Ratio | F1.6(Wide)~F3.0(Tele) |
| Angular Field of View | H: 54.58°(Wide)~5.30°(Tele) / V: 32.19°(Wide)~3.00°(Tele) / D: 61.4(Wide)~6.06(Tele) |
| Min. Object Distance | 1.5m(4.92ft) |
| Focus Control | OneshotAF |
| Lens Type | DC auto iris |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 150dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 70m(229.66ft) |
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 512GB |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / Less than 90% RH * Start up should be done at above -35°C |
| Storage Temperature / Humidity | -50°C ~ +60°C (-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66/IP67, IK10, NEMA 4X |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC, 24VAC |
| Power Consumption | PoE: Max 12.95W 12VDC: Max. 12.5W 24VAC: Max. 14.5W |
| Mechanical | |
| Color / Material | Dark gray / Aluminum |
| Product Dimensions / Weight | Ø147.5x368.6mm, 2175g |
- Bảo hành: 24 tháng.
