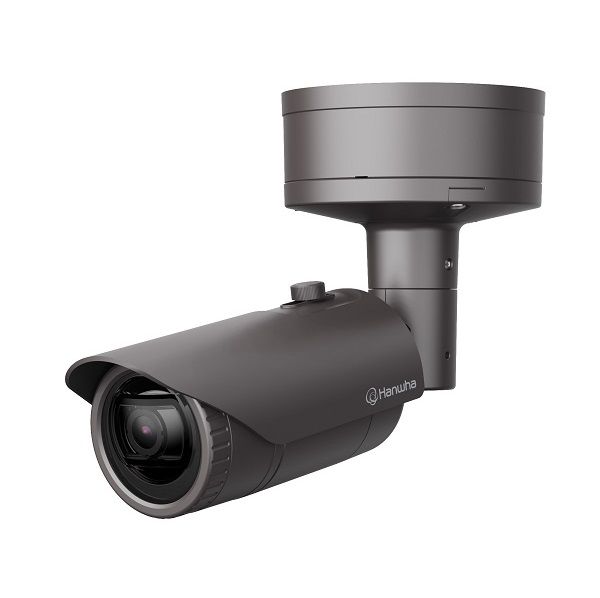

Camera IP hồng ngoại 5.0 Megapixel Hanwha Techwin WISENET XNO-8020R
- Cảm biến hình ảnh: 1/1.8 inch CMOS.
- Độ phân giải camera ip: 5.0 Megapixel.
- Chuẩn nén hình ảnh: H.265, H.264, MJPEG.
- Hỗ trợ khe cắm thẻ nhớ microSD/SDHC/SDXC dung lượng lên đến 512GB.
- Ống kính: 3.7mm.
- Góc quan sát theo chiều ngang: 97.5º, theo chiều dọc: 71.9º, theo phương chéo: 126.2º.
- Tầm quan sát hồng ngoại: 30 mét.
- Chức năng quan sát Ngày và Đêm (IR-CUT).
- Chức năng chống ngược sáng WDR (120dB).
- Chức năng chống sương mù Defog.
- Chức năng theo dõi chuyển động (Auto Tracking).
- Chức năng giảm nhiễu số SSNRV (2D+3D).
- Chức năng phát hiện chuyển động: Off / On (8ea, 8point polygonal zones), Handover.
- Hỗ trợ LDC (Lens Distortion Correction).
- Hỗ trợ WiseStream II.
- Kết nối mạng: RJ-45 (10/100BASE-T).
- 1 ngõ vào báo động, 1 ngõ ra báo động.
- Tiêu chuẩn chống thấm nước: IP67, IP66 (thích hợp sử dụng trong nhà và ngoài trời).
- Tiêu chuẩn chống va đập: IK10.
- Nguồn điện: 12VDC ± 10%.
- Chức năng cấp nguồn qua mạng PoE.
- Công suất tiêu thụ: 9.3W.
- Kích thước: Ø70.0 x 296.0mm.
- Trọng lượng: 1.22kg.
Đặc tính kỹ thuật
| Video | |
| Imaging Device | 1/1.8 inch 5M CMOS |
| Total Pixels | 3,096(H) x 2,094(V) |
| Effective Pixels | 2,616(H) x 1,976(V) |
| Scanning System | Progressive Scan |
| Min. Illumination | Color: 0.16Lux (F1.6, 1/30sec), B/W: 0Lux (IR LED on) |
| S / N Ratio | 50dB |
| Video Out | CVBS: 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation |
| USB: micro USB type B, 1280 x 720 for installation | |
| Focal length (Zoom Ratio) | 3.7mm fixed |
| Max. Aperture ratio | F1.2 |
| Angular Field of View | H: 97.5º / V: 71.9º / D: 126.2º |
| Focus Control | Manual |
| Lens / Mount Type | Fixed / Board-in type |
| Operation | |
| IR LED / Viewable Length | 30m |
| Camera Title | Off / On (Displayed up to 85 characters) |
| - W/W: English / Numeric / Special characters | |
| - China: English / Numeric / Special / Chinese characters | |
| - Common: Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution | |
| Day & Night | Auto (ICR) / Color / B/W / External / Schedule |
| Backlight Compensation | Off / BLC / HLC (Masking / Dimming), WDR |
| Wide Dynamic Range | 120dB |
| Contrast Enhancement (DWDR) | SSDR (Off/ On) |
| Digital Noise Reduction | SSNRV (2D+3D noise filter) (Off / On) |
| Motion Detection | Off / On (8ea, 8point polygonal zones), Handover |
| Privacy Masking | Off / On (32ea, Polygonal) - Color : Grey / Green / Red / Blue / Black / White, Mosaic |
| Defog | Off / Auto (Input from fog detection) / Manual |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (Included mercury & Sodium) |
| LDC (Lens Distortion Correction) | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Flip / Mirror | Flip / Mirror / Hallway view 90º/ 270º |
| Intelligent Video Analytics | Tampering, Loitering, Directional detection, Defocus detection, Fog detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection, Motion detection, Digital auto tracking, Sound classification |
| Alarm I/O | Input 1/ Output 1 |
| Alarm Triggers | Alarm input, Motion detection, Video & Audio analytics, Network disconnect |
| Alarm Events | File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP Local storage (SD/SDHC/SDXC) recording at Network disconnected & Event (Alarm triggers) or NAS recording at event (Alarm triggers), External output |
| Pixel Counter | Support |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression Format | H.265 / H.264 (MPEG-4 part 10/AVC): Main / Baseline / High, MJPEG |
| Resolution | 2560 x 1920, 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Frame rate | H.265/ H.264: Max. 30fps at all resolutions, MJPEG: Max. 30fps |
| Support | WiseStreamII |
| Video Quality Adjustment | H.265 / H.264: Target bitrate level control, MJPEG: Quality level control |
| Bitrate Control Method | H.264: CBR or VBR, MJPEG: VBR |
| Streaming Capability | Multiple streaming (Up to 10 profiles) |
| Audio In/ out | Selectable (Mic in / Line in), Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm |
| Line out, Max output level : 1Vrms | |
| Audio Compression Format | G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz. G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Audio Communication | Uni-directional audio (2-way) |
| IP | IPv4, IPv6 |
| Protocol | TCP/IP, UDP/IP, RTP(UDP), RTP (TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) login authentication, Digest login authentication IP address filtering, User access log, 802.1x authentication |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 users at unicast mode |
| Edge Storage | Micro SD/SDHC/SDXC max. 512G, NAS |
| - Motion images recorded in the SD memory card can be downloaded | |
| - Manual recording at local PC | |
| Application Programming Interface | ONVIF profile S/G, SUNAPI (HTTP API), Wisenet Open Platform |
| Webpage Language | English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.9, 10.10, 10.11. Plug-in free Webviewer |
| - Supported Browser: Google Chrome 47, MS Edge 20. Plug-in Webviewer | |
| - Supported Browser: MS Explorer 11, Mozilla Firefox 43, Apple Safari 9, Mac OS X only | |
| Central Management Software | SmartViewer |
| Ingress Protection / Vandal Resistance | IP67, IP66/ IK10 |
| ELECTRICAL | |
| Input Voltage / Current | 12VDC ±10%, PoE (IEEE802.3af) |
| Power Consumption | Max. 9.3W (12VDC), Max. 10.3W (PoE) |
| Color / Material | Dark gray/ Metal |
| Dimensions | Ø70 x 296 mm |
| Weight | 1.22kg |
- Bảo hành: 24 tháng.
