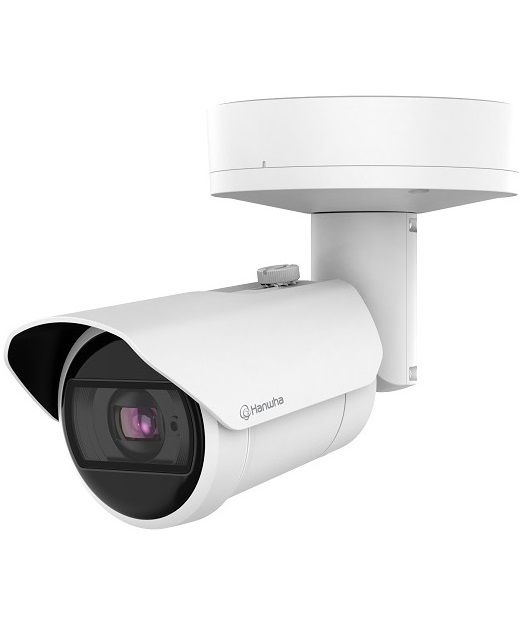

Camera IP hồng ngoại 8.0 Megapixel Hanwha Vision XNO-C9083R

Hanwha Vision XNO-C9083R

Giá : Liên hệ

Camera IP hồng ngoại 8.0 Megapixel Hanwha Vision XNO-C9083R

Camera IP hồng ngoại 8.0 Megapixel Hanwha Vision XNO-C9083R

- Cảm biến hình ảnh: 1/1.8 inch progressive CMOS.

- Độ phân giải: 8.0 Megapixel.

- Chuẩn nén hình ảnh: H.265, H.264. MJPEG.

- Tầm quan sát hồng ngoại: WiseIR 40m.

- Ống kính: 4.4~9.3mm (2.1x) motorized varifocal.

- Hỗ trợ khe cắm thẻ nhớ micro SD/SDHC/SDXC dung lượng lưu trữ tối đa 512GB x 2.

- Hỗ trợ các chức năng camera: Chức năng quan sát Ngày và Đêm (ICR); chức năng chống ngược sáng extremeWDR (120dB).

- Hỗ trợ WiseStreamⅡ, WiseStreamⅢ (Using AI engine).

- Tiêu chuẩn chống thấm nước: IP66, IP67 (thích hợp sử dụng trong nhà và ngoài trời).

- Tiêu chuẩn chống va đập: IK10.

- Nguồn điện vào: PoE(IEEE802.3af, Class3), 12VDC.

Đặc tính kỹ thuật

Video
Imaging Device1/1.8 inch progressive CMOS
Resolution3840x2160, 3328x1872, 3072x1728, 2592x1944, 2688x1520, 1920x1080, 1600x1200, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps(@8MP Max. 5fps)
Min. IlluminationColor: 0.04Lux(F1.3, 1/30sec, 30IRE)
BW: 0.004Lux(F1.3, 1/30sec, 30IRE), 0Lux(IR LED on)
Video OutUSB: Micro USB Type B, 1280x720 for installation
Lens
Focal Length (Zoom Ratio)4.4~9.3mm(2.1x) motorized varifocal
Max. Aperture RatioF1.3(Wide)~F2.15(Tele)
Angular Field of ViewH: 113°(Wide)~47°(Tele)
V: 58°(Wide)~26°(Tele)
D: 138°(Wide)~54°(Tele)
Min. Object Distance0.5m(1.64ft)
Focus Control Simple focus, Manual
Lens Type P-iris(IR corrected)
Operational
Camera Title Displayed up to 85 characters
Day & Night Auto(ICR)
Backlight Compensation BLC, HLC, WDR, SSDR
Wide Dynamic RangeextremeWDR(120dB)
Digital Noise ReductionWiseNRⅡ(Based on AI engine), SSNRⅤ
Digital Image StabilizationSupport(built-in gyro sensor)
DefogSupport
Motion Detection8ea, 8point Polygonal zones
Privacy Masking32ea, 4point Quadrangle zones
- Color: Gray/Green/Red/Blue/Black/White
- Mosaic
Gain ControlOff / Max Gain / Manual
White BalanceATW / NarrowATW / AWC / Manual / Indoor / Outdoor
LDCSupport(Fill/stretch mode)
Electronic Shutter SpeedMinimum / Maximum / Anti flicker(2~1/12,000sec) prefer shutter control(Based on AI engine)
Video RotationFlip, Mirror, Hallway view(90°/270°)
AnalyticsClassified object type: Person/Face/Vehicle/License plate
Attributes : Vehicle(Type: car/bus/truck/motorcycle/bicycle)
Support DetectionShot
Analytics events based on AI engine
- Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit)
Analytics events
- Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound
classification, Shock detection, Virtual area(Appear/Disappear)
Business IntelligenceBased on AI engine: People counting, Queue management, Heatmap
Alarm I/O2 configurable I/O ports
Alarm TriggersAnalytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription
Alarm EventsWhen alarm trigger occurred
- File upload(image): e-mail/FTP
- Notification: e-mail
- Recording: SD/SDHC/SDXC or NAS recording at event triggers
- Alarm output
- Handover: PTZ preset, send message by HTTP/HTTPS/TCP
- Audio clip playback
- MQTT: publication
Audio InSelectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Max.output level: 1Vrms
IR Viewable LengthWiseIR 40m(131.23ft)
Network
EthernetMetal shielded RJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/Baseline/High, MJPEG
Audio CompressionG.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
Smart CodecManual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine)
Bitrate ControlH.264/H.265: CBR or VBR
MJPEG: VBR
StreamingUnicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles, 3 virtual channel support)
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT
SecurityHTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2)
Device Certificate(Hanwha Techwin Root CA, pre-installed)
Secure by default certificate
HTPM(Hanwha Trusted platform module)
Secure OS/Boot/Storage, Verify firmware forgery
CyberSecurity assuarance program UL CAP(UL 2900-1)
Application Programming Interface ONVIF Profile S/G/T/M
SUNAPI(HTTP API)
Wisenet open platform
General
Webpage LanguageEnglish, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian
Edge StorageMicro SD/SDHC/SDXC 1slot 512GB
Memory4GB RAM, 512MB Flash
Environmental & Electrical
Operating Temperature / Humidity-40°C~+55°C(-40°F~+131°F)
* Start up should be done at above -20°C
0~95%RH(non-condensing)
Humidity control /w AIR vent
Storage Temperature / Humidity-50°C~+60°C(-58°F~+140°F) / 0~90% RH
CertificationIP66/IP67, NEMA4X, IK10
Input VoltagePoE(IEEE802.3af, Class3), 12VDC
Power ConsumptionPoE: Max 12.95W, typical 11.2W
12VDC: Max 13.2W, typical 10.8W
Mechanical
Color / MaterialWhite / Aluminum + PC
Hard-coated window
RAL CodeRAL9003
Product Dimensions / Weightø93.4x276.6mm, 1640g(3.62 lb)
Compatible Conduit hole / GangboxSBO-147BA(Sold seperately) single, double, 4 inch octagon, 4 inch square
Backboxinclude
Certifications & Standards
EMCFCC 47 CFR 15 Subpart B Class A
ICES-3(A)/NMB-3(A)
CE/UKCA
- EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3
VCCI CISPR 32 Class A
RCM AS/NZS CISPR 32 Class A
KS C 9832 Class A , KS C 9835
SafetyUL 62368-1, CAN/CSA C22.2 NO. 62368-1
IEC/EN 62471
EnvironmentIEC/EN 63000
IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10
NEMA 250 type 4X
DORI (EN62676-4 standard)
Detect (25PPM/ 8PPF)Wide: 50.8m(166.77ft) / Tele: 176.6m(579.49ft)
Observe (63PPM/ 19PPF)Wide: 20.3m(66.71ft) / Tele: 70.7m(231.80ft)
Recognize (125PPM/ 38PPF)Wide: 10.2m(33.35ft) / Tele: 35.3m(115.90ft)
Identify (250PPM/ 76PPF)Wide: 5.1m(16.68ft) / Tele: 17.7m(57.95ft)

- Bảo hành: 24 tháng.
