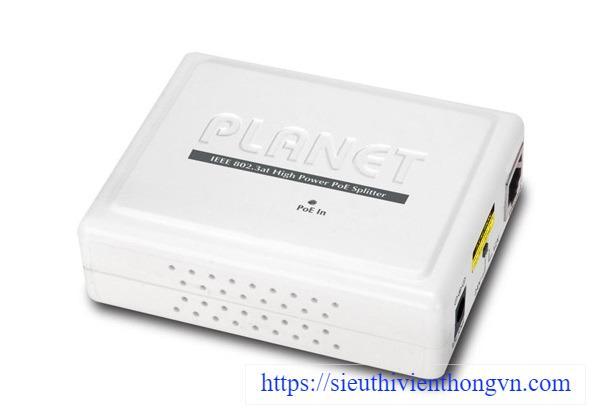

High Power PoE Splitter PLANET POE-162S
Interface
- 2 RJ45 interfaces
o 1-port PoE Power + Data input
o 1-port Data output
- 1 DC out plug connector
PoE
- Complies with IEEE 802.3at Power over Ethernet Plus PD
- Splits the 52~56V DC power over RJ45 Ethernet cable into 12V/24V DC output
- Up to 1 non-IEEE 802.3at device powered
- Auto detects IEEE 802.3at PoE compliant device, protects devices from being damaged by incorrect installation
- Adjustable two different output voltage options (12V, 2A; 24V, 1A) to fit various devices
- Distance up to 100 meters
- IEEE 802.3af PoE injector devices compatible
Hardware
- Plastic case
- 12V/24V DIP switch
- LED power input indicators
Specifications
| Model | POE-162S |
| Hardware | |
| Interface | Data Input Port: 1 x RJ45 STP PoE (Data + Power) Output Port: 1 x RJ45 STP DC Out Plug Connector: 1 |
| LED Indicator | System: PoE in Use x 1 (Green) |
| Network Cable | UTP Cat. 5/5e/6, up to 100m |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 95 x 70 x 25 mm |
| Weight | 108g |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Gigabit Power over Ethernet / PD |
| IEEE 802.3at 52~56V DC | IEEE 802.3at 52~56V DC |
| DIP Switch | 12V DC/24V DC output voltage |
| Number of clients device can be powered | 1 |
| Environment | |
| Operating Temperature | 0 ~ 50°C |
| Storage Temperature | -10 ~ 70°C |
| Humidity | 5 ~ 95%, Relative Humidity, non-condensing |
- Bảo hành: 12 tháng.
